| Categories | Optical Fiber Distribution Box |
|---|---|
| Brand Name: | FT |
| Model Number: | GFS-24QX |
| Certification: | ROSH |
| Place of Origin: | CHINA |
| MOQ: | 100PCS |
| Price: | 10-25USD |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000PCS/DAY |
| Delivery Time: | 15-30 DAYS |
| Packaging Details: | CARTON |
| material: | PP or PC+ABS. |
| COLOR: | BLACK OR GREY OR CUSTOMIZATION |
| IP: | 68 |
| CAPACITY: | max 72CORES |

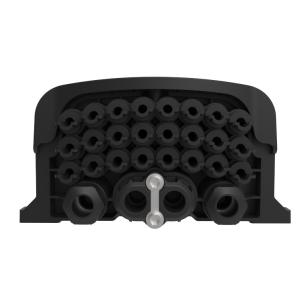

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
| Production type | Classification |
| GFS-24QX | Optical fiber cable distribution box |
2. Characteristics
| Item | Specifications | Remark |
| External dimension(mm) | 378*255*116(A*B*C) | |
| Installation hole position(mm) | 215*266*239(D*E*F) | |
| Color | Black | Customizable |
| Size and quantity of optical cable hole | 1 oval optical cable entry, 2 branch optical cable entries and 24pcs of household | |
| Capacity(Max) | 3 type A(36 cores) or 6 type B (48 cores) or 6 type C(72 cores) melt fiber discs | It can be combined or selected |
| Into the largest cable diameter (mm) | ᴓ15 | |
| Maximum size of bifurcation hole (mm) | ᴓ12 | |
| Cable outlet size(mm) | 2*3~ᴓ7 | |
| IP protection level | IP68 | |
| Flammability | HB(Conventional) | can be customized according to requirements |
| Neutral salt spray test (NSS) | 48 h |
|
