| Categories | Construction Machinery |
|---|---|
| Brand Name: | Caterpillar Qingzhou Ltd |
| Model Number: | SEM655D |
| Certification: | ISO CCC |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | USD 40000-50000 |
| Payment Terms: | T/T L/C |
| Supply Ability: | 100 units |
| Delivery Time: | 30 days |
| Packaging Details: | shipping by bulk or roro |
| Color: | yellow |
| Engine: | Weichai |
| Bucket: | 3m3 |

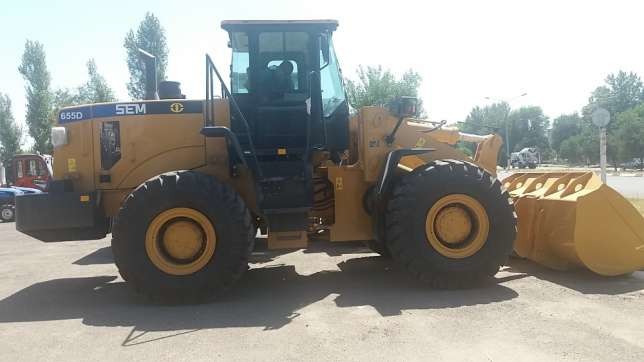

5TONS PAYLOADER FROM CATERPILLAR QINGZHOU LTD SEM655D
| Main Specifications | |
| Rated Load | 5000 kg |
| Operating Weight with Standard Bucket | 16000 kg |
| Bucket Capacity | 2.7-4.5 m³ |
| Wheel Base | 3000 mm |
| Overall Dimension (mm) | 8062*2963*3348 |
| Engine | |
| Model | Weichai |
| Rated Power | 162 kW |
| Rated Speed | 2000 r/min |
| Displacement | 9.726 L |
| Operating Specifications | |
| Breakout Force | 159 kN |
| Dump Clearance | 3100 mm |
| Articulated Angle | 38±1 ° |
| Implement Hydraulic | |
| Implement System Type | Twin pump flow merging hydraulic system |
| Boom Raise Time | 4.92 s |
| Hydraulic Cycle Time | 8.8 s |
| System Presure Setting | 17 Mpa |
| Transmission | |
| Transmission Type | Countershaft, power shift |
| Transmission Gears | F4/R4 |
| Torque Converter Type | Sigle stage 3 elements |
| Maker & Type | TR200 |
| Forward I/ Reverse I | 7.9/7.9 km/h |
| Forward II/ Reverse II | 15/15 km/h |
| Forward III/ Reverse III | 23/23 km/h |
| Forward IV/ Reverse IV | 39/39 km/h |
| Brake System | |
| Service Brake | Dry & caliper, air to oil control |
| Parking Brake | Drum type shoe brake, spring applied & oil released |
| Steering System | |
| System Type | Flow amplifying |
| Steering Pump Type | Gear pump |
| System Presure Setting | 16 Mpa |
| Steering Angle (L/R) | 35±1 ° |
| Axle | |
| Main Drive Type | Spiral bevel gear, single stage |
Please contact us for more information. We will be available 24 hours to provide you considerate service.
