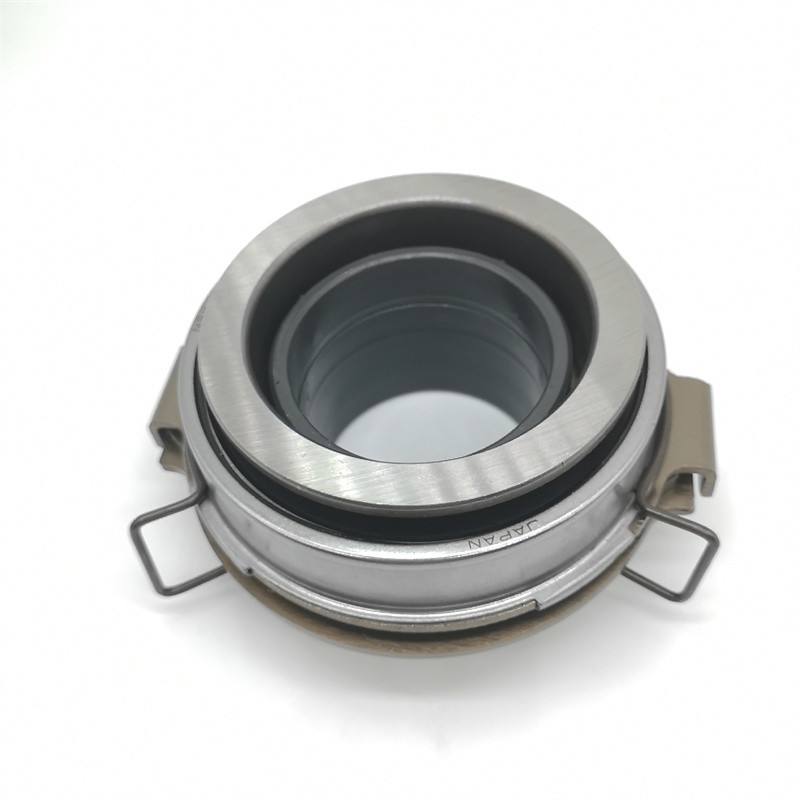

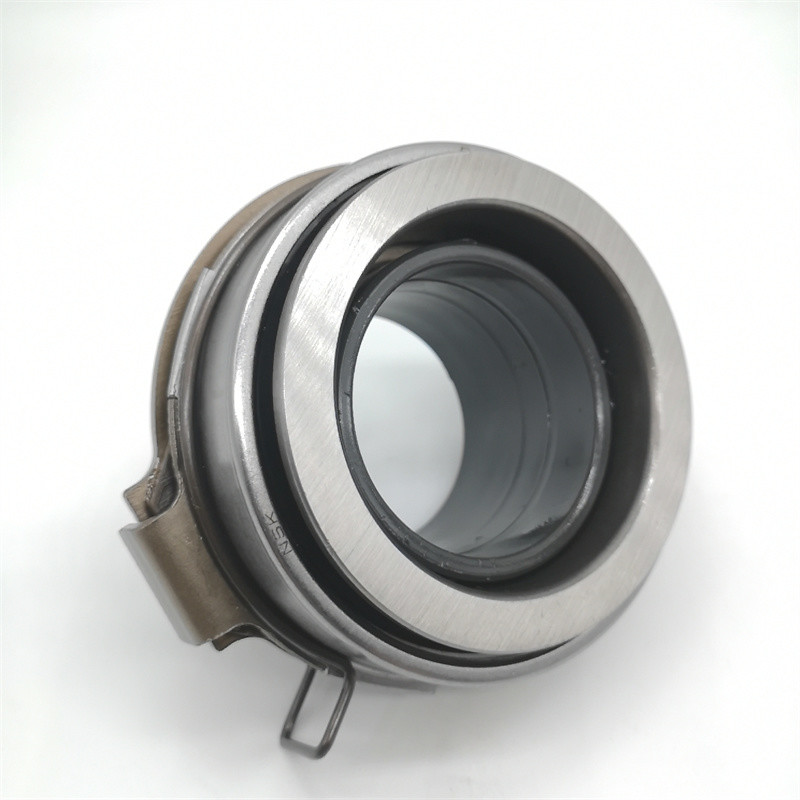

78TKL4801AR Clutch Release Bearing For ISUZU NKR OEM 8-97255-313-0
Clutch Release Bearing Specification
| Car Fitment | Model | Year |
|---|---|---|
| ISUZU | F-Series FORWARD | 1970-, 1993- |
| N-Serie, F-Series FORWARD | 1993- |
Clutch Release Bearing Description
The clutch release bearing is installed between the clutch and the
transmission. The release bearing seat is loosely sleeved on the
tubular extension of the first shaft bearing cover of the
transmission. The shoulder of the release bearing is always against
the release fork through the return spring and retracts to the
final position. , Keep a gap of about 3~4mm with the end of the
separation lever (separation finger).
Since the clutch pressure plate, the release lever and the engine
crankshaft operate synchronously, and the release fork can only
move axially along the output shaft of the clutch, it is obviously
impossible to directly use the release fork to dial the release
lever. The release bearing can make the release lever rotate side
by side. The output shaft of the clutch moves axially, which
ensures that the clutch can engage smoothly, disengage softly,
reduce wear, and extend the service life of the clutch and the
entire drive train.
Clutch Release Bearing Product number
| QRL No. | Parts No. | NSK | NTN | KOYO | NACHI |
| QRL-ISUZU/1 | 9-00095-040-1 | 24TK308B2 | SF0816/2E | RCT38SL1 | BC12S4SB |
| QRL-ISUZU/2 | 8-94101-243-0 | 48TKA3214 | RCT37SA1 | ||
| QRL-ISUZU/3 | 8-94453-348 8-84379-499-0 | RCT422SA | |||
| QRL-ISUZU/4 | 8-94389-416-0 8-94109-658-0/1 | RCT432SA | |||
| QRL-ISUZU/5 | 8-97023-074-0 | RCT473SA | |||
| QRL-ISUZU/6 | 5-31314-001 | 54TKA3501 | RCT401SA | ||
| QRL-ISUZU/7 | 1-09820-078-0 | 78TKC5401 | |||
| QRL-ISUZU/8 | 9-00095-038-1 | TK45-4U3 | 45TMK804X | CT45-1S | 45TNK804 |
| QRL-ISUZU/9 | 1-09820-008-0 9-00095-038-1 | TK55-1A1U3 | 55TMK804X/2E | CT55BL1 | 55TMK804 |
| QRL-ISUZU/10 | 9-00095-044-1 | TK70-1A1U3 | SF1412/2E | CT70B/L1 | 70TNK-1 |
| QRL-ISUZU/11 | 8-97209-197-0 | 48TKB3204R | |||
| QRL-ISUZU/12 | 8-97333-487-0 | 48TKB3205 | |||
| QRL-ISUZU/13 | 8-97089-652 8-97013-553 | 78TKL4001AR | |||
| QRL-ISUZU/14 | 8-97255-313-0 | 78TKL4801R | |||
| QRL-ISUZU/15 | 8-94377-417-1 | 68TKP3201 | |||
| QRL-ISUZU/16 | 8-97316-591-0 | 60TKZ3201 | |||
| QRL-ISUZU/17 | 8-94133-417 | 48TKA3211 | |||
| QRL-ISUZU/18 | 8-97316-602-0 | 60TKZ3503R | |||
| QRL-ISUZU/19 | 1-31310-022-0 | 106TKL6101RA1 | |||
| QRL-ISUZU/20 | 1-31310-012-0 | 81TKL4801R | |||
| QRL-ISUZU/21 | 8-98169-826-1 |
Clutch Release Bearing Precautions
1. According to the operating regulations, avoid the clutch
half-engaged and half-disengaged, and reduce the number of times
the clutch is used.
2. Pay attention to maintenance. Use the steaming method to soak
the butter so that it has sufficient lubricant during regular or
annual inspection and maintenance.
3. Pay attention to leveling the clutch release lever to ensure
that the elastic force of the return spring meets the requirements.
4. Adjust the free stroke to meet the requirements (30-40mm) to
prevent the free stroke from being too large or too small.
5. Minimize the number of joining and separation, and reduce the
impact load.
6. Step on it lightly and easily to make it join and separate
smoothly.
|
