| Categories | Transformer Foil Winding Machine |
|---|---|
| Brand Name: | STT |
| Model Number: | BRJ600-2 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Delivery Time: | 45 days |
| Packaging Details: | seaworthy packing |
| Name: | transformer foil winding machine |
| Usage: | winding dry transformer coil |
| Foil width: | maximum 600mm |
| Foil conductor: | copper and aluminium foil |
| Motor power: | 11kw |
| Rotating speed: | maximum 26rpm |
| Color: | as requested |
| Warranty: | 12 months |
| Company Info. |
| Suzhou Tronsing Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Programmable PLC Control Automatic Dry Type Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ600-2
Automatic dry type transformer foil winding machine BRJ600-2 is for
winding foil coils to make dry type transformer. TIG welding unit
is adopted to weld foil and bus bar together. The foil winding
machine can be used to wind not only copper foil but also aluminium
foil. The maximum width of the foil wound by the transformer foil
winding machine is 600mm.
Quick details of transformer foil winding machine BRJ600-2
Main parameters of transformer foil winding machine BRJ600-2
| Coil Shape: | oval, circle and rectangular |
| Foil Material OD.: | 1,000mm |
| Foil Material ID.: | 500mm |
| Conductor Decoiler Number: | 2 pcs |
| Conductor Decoiler Length: | 650mm |
| Decoiler Expanding Range: | 400-520mm |
| Winding Power: | 11KW |
| Winding Shaft Size: | 80×80×950 mm |
| Rotating Speed: | 0 - 26 Rpm |
| Insulation Decoiler Number: | 2 pcs |
| Insulation Material OD.: | ≤400mm |
| Insulation Material ID.: | 76mm |
| Insulation Paper Width: | 650mm |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing automatic rectifying deviation |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 - 9999.9 |

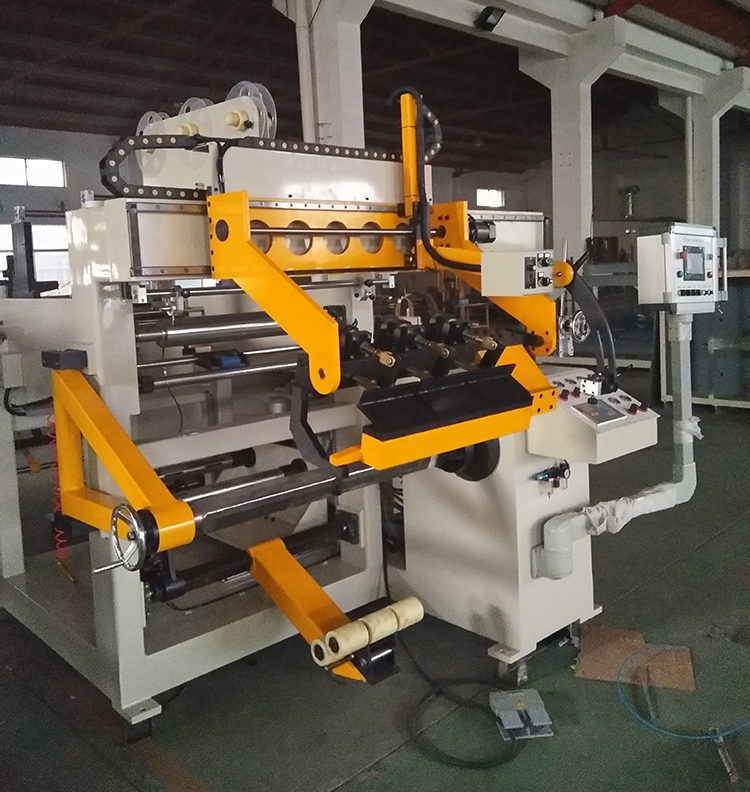

Fig 1: Transformer foil winding machine BRJ600-2's front view

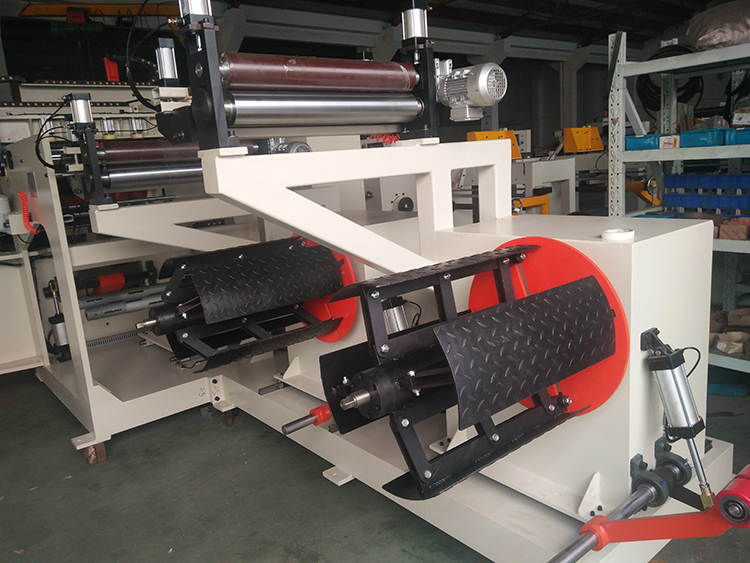

Fig 2: Transformer foil winding machine BRJ600-2's foil decoiler
|
