Three phase metering box four- meter household Test terminal block

Three phase metering box four- meter household Test terminal block

General:

In order to improve residential electricity consumption condition, our company develops FJ6/JHD-2 series terminal block .This kind of terminal block enables the operation to be more convenient, and also guarantees reliable connection, and finally reaches the aim of safety in utilizing electric energy. This products get high appreciation from the energy measuring operators one-meter”and standardization of energy measuring devices as well as standardized management. The products are also honored as national high-quality technological products and are recommended for application by national electric power bureau.

Application:

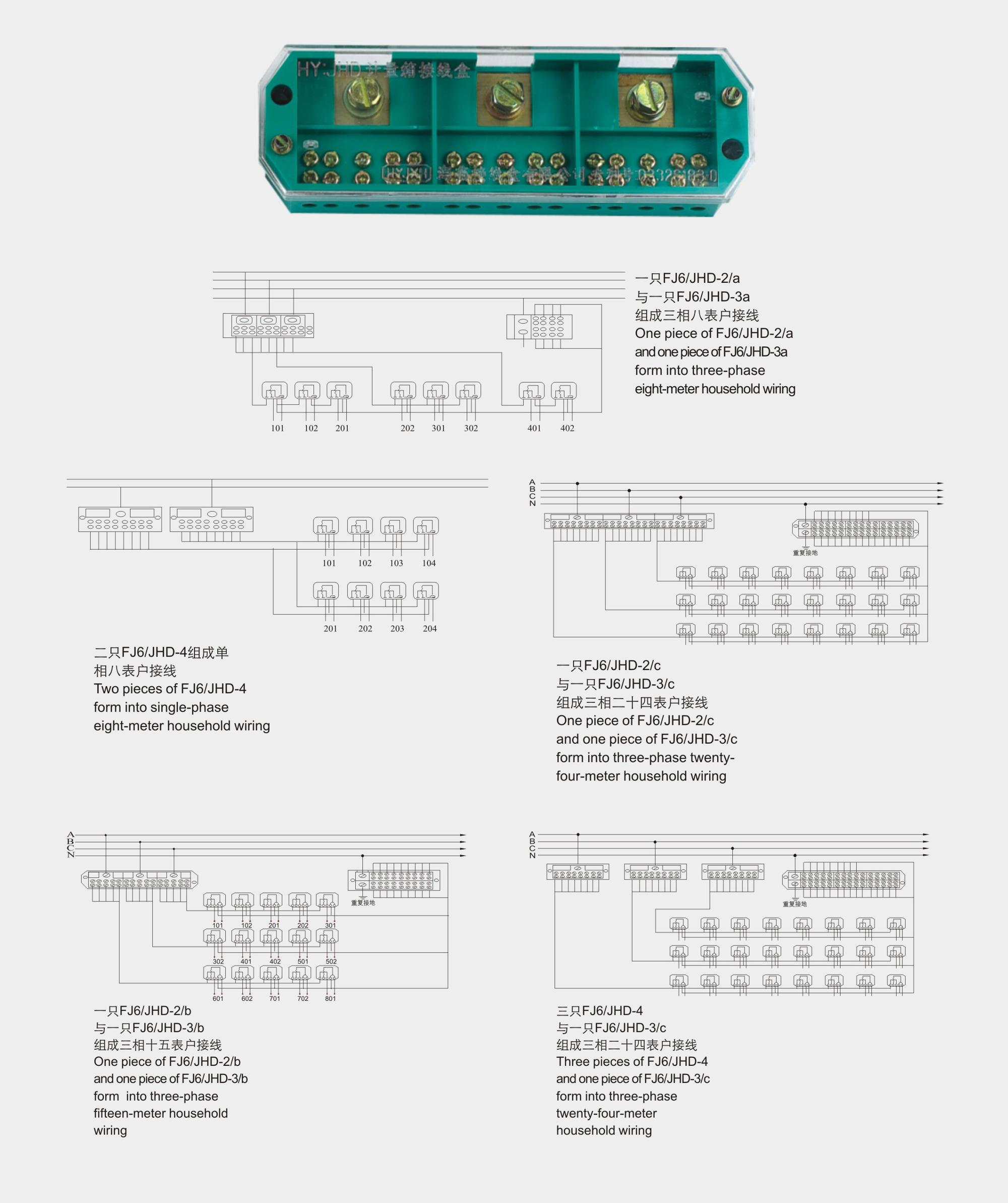

Application of this terminal block enables house service wire to be separated from meter service wire, which solves the problem of parallel connection. Terminal block cover can be sealed to prevent electricity theft ; Neutral line terminal block can be earthed repeatedly. It is in conformity with the“special, sealed”principle standardization of one-household one-meter. The products are applied in“one-household one-meter”electric energy metering box.

Structural features:

This series of terminal block adopt high-molecular polycarbonate material imported from America. It has advantages of high impact resistance, moisture resistance, favorable insulation; ageing resistance, flame retardant, high temperature resistant, etc.. The binding screw adopts compound recess , which is suitable for flathead screwdriver and crossed screwdriver The products are popular due to compact volume, large capacity, high withstand voltage, reasonable structure, and elegant appearance.

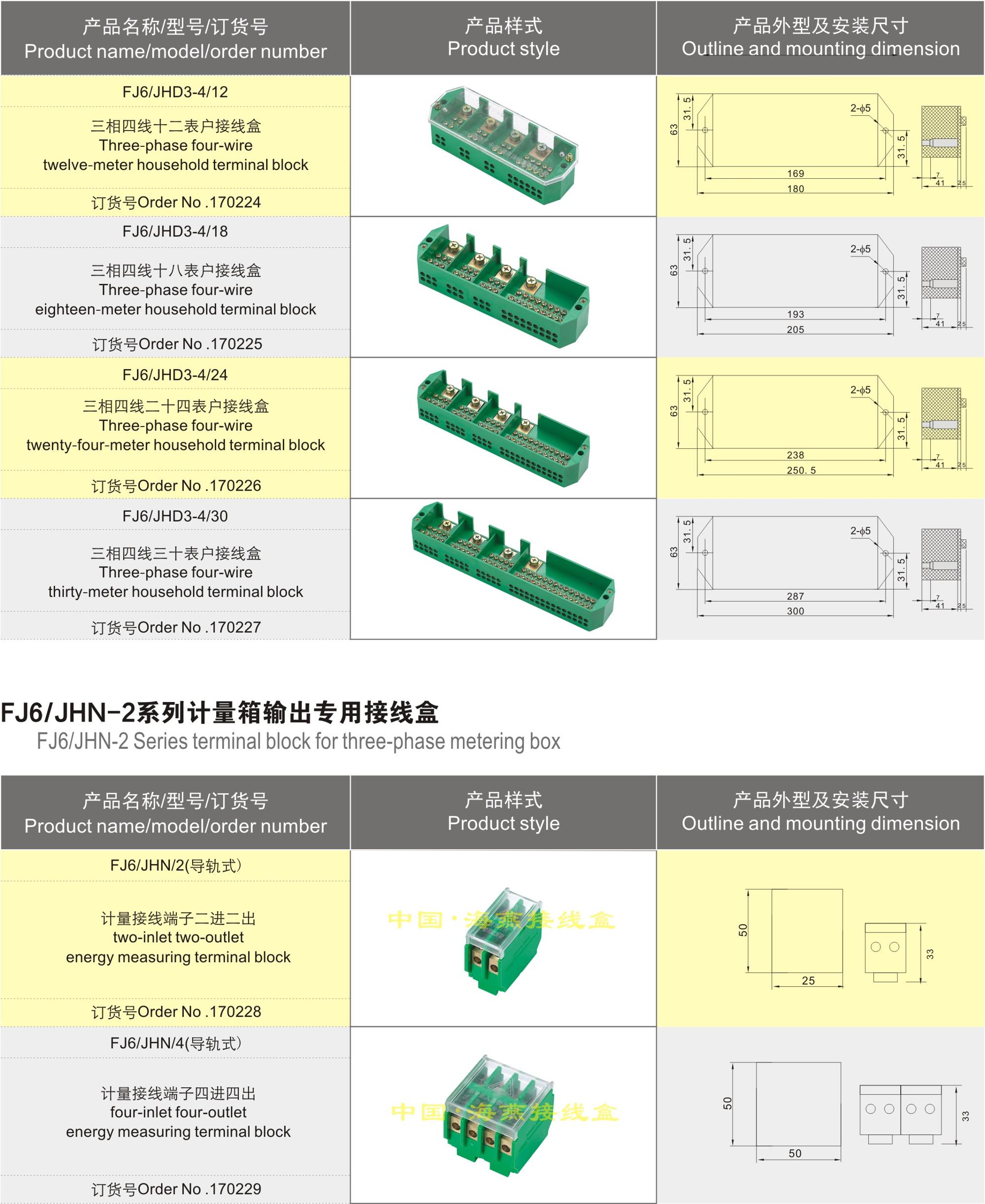

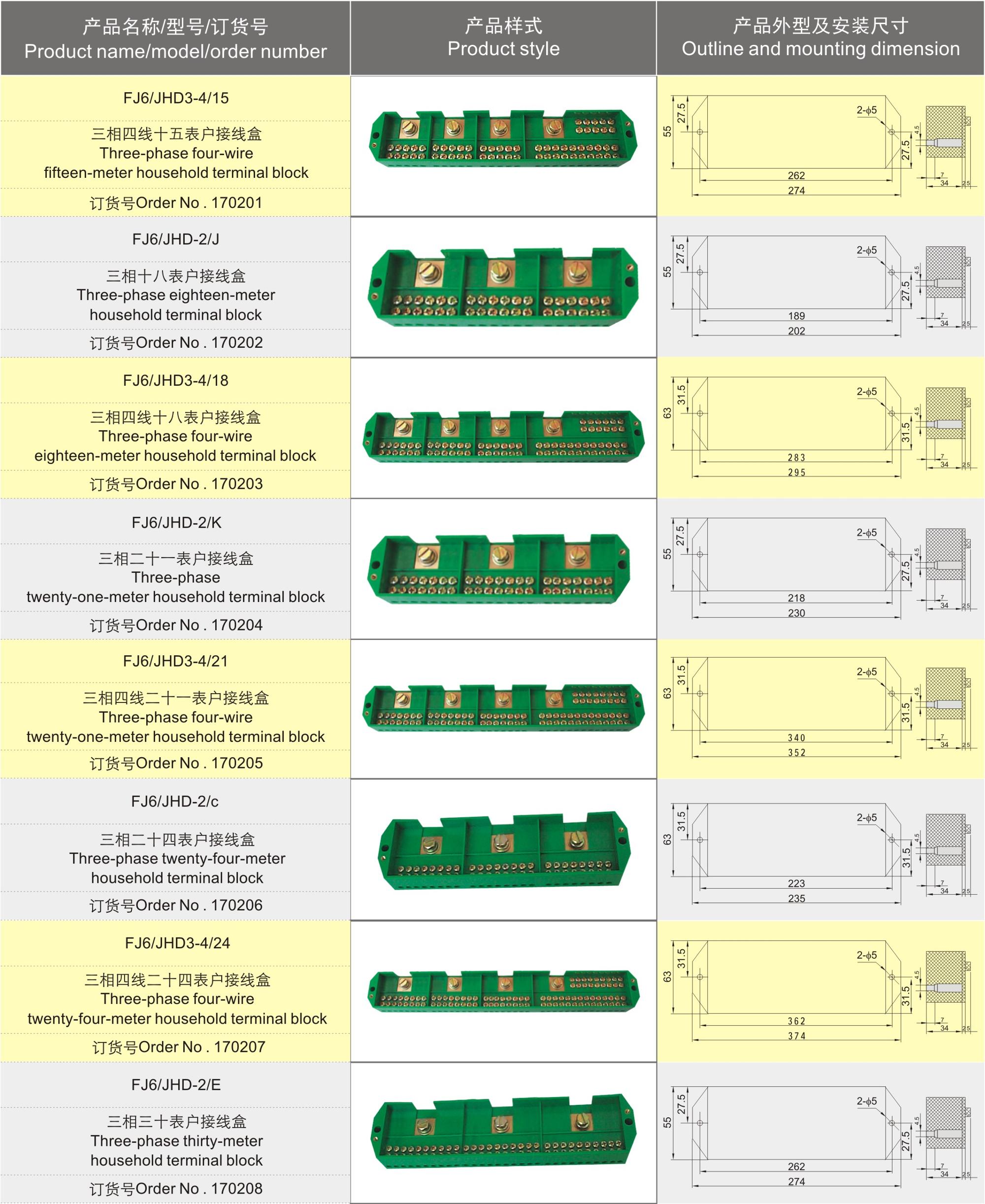

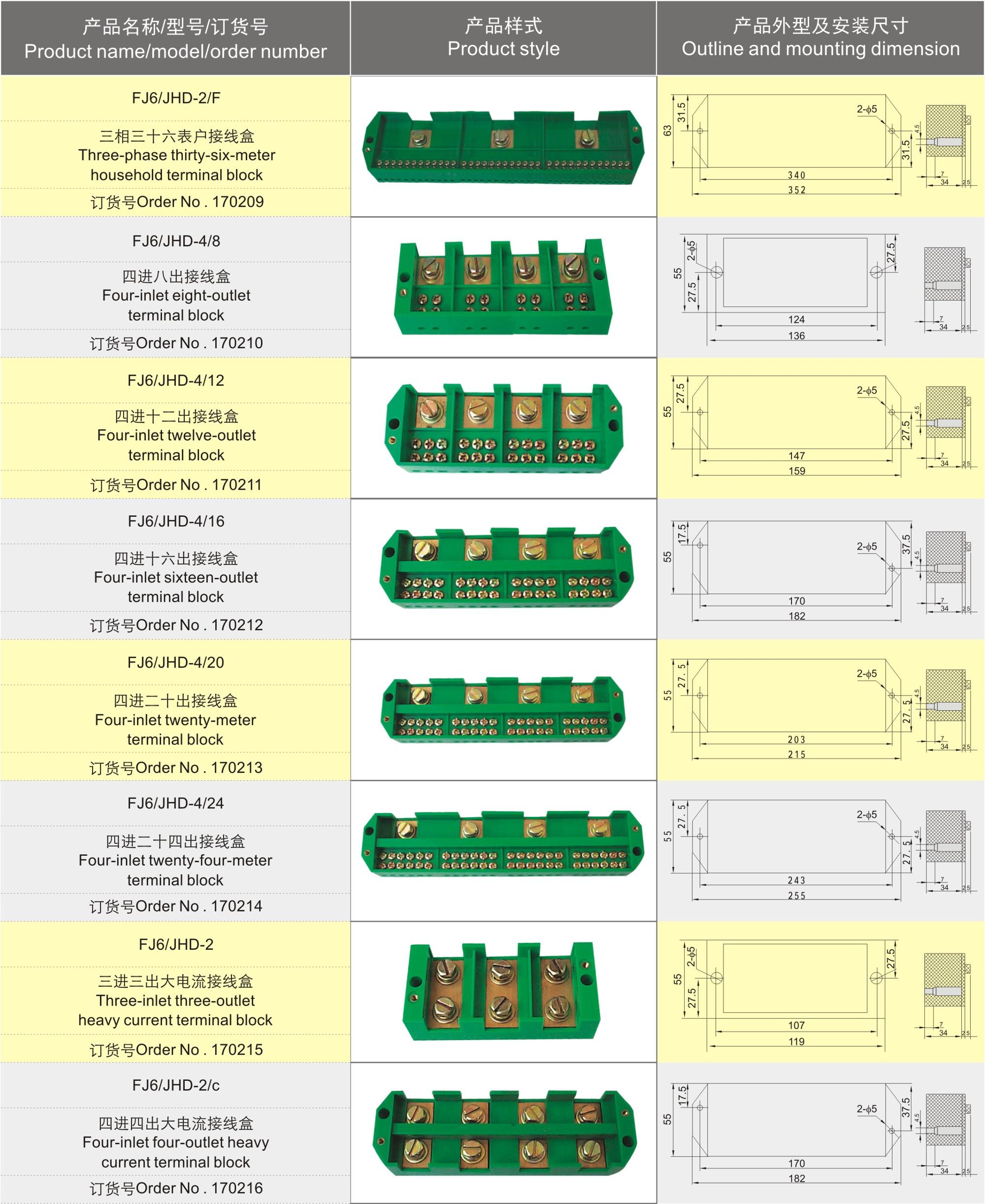

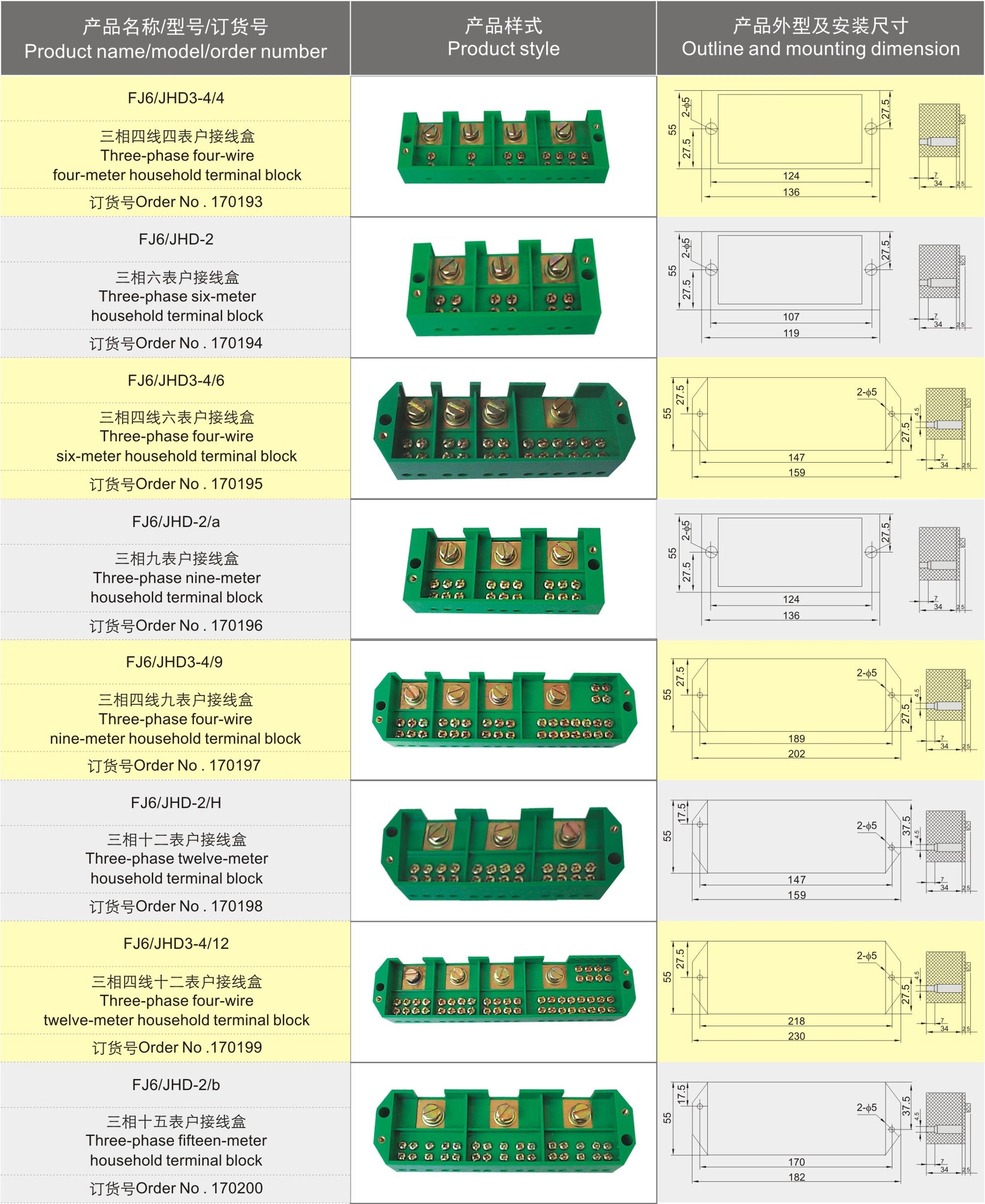

Main technical parameter:

1 Where is your factory?

Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.

2 Are you manufacturer or business?

We are manufacturer established in 2002, and have over 16 years production experience.

3. Can I ask for samples?

Yes

4. What's the warranty of your products?

18 months

5. What's the lead time?

Depend on the quantity and model of the order, normally it takes around 2-3 days, but the

exact lead time should be discussed with our sales.

6. How about the MOQ, Payment term, Delivery port, and shipping date?

1)MOQ: 100 pcs/item based on existing packing.

2)T/T-30% deposit and 70% against copy of BL

3)L/C is also acceptable

4)Ningbo/Shanghai
