Watertight High Speed Data Transfer Hybrid Power Connector Quick Mating HV IP67B

Watertight High Speed Data Transfer Hybrid Power Connector Quick Mating HV IP67B

Watertight High Speed Data Transfer Hybrid Power Connector Quick Mating HV IP67B
Watertight High Speed Data Transfer Hybrid Power Connector Quick Mating HV IP67B
Categories Hybrid Power Connector
Brand Name: Neopower
Certification: USCAR2
Place of Origin: China
MOQ: 1 PC
Price: Negotiable according to Quantities
Payment Terms: Western Union, MoneyGram
Supply Ability: 50000 per day
Delivery Time: 3~7 days
Packaging Details: Standard Export Carton Box
Rated Current: Power:13A Max Signal:5A Max
Rated Voltage: 500V DC
Insulation Resistance: 5000MΩ MIN（ DRY) 200MΩ MIN（RH 95%)
Dielectric Withstanding Voltage: 3000V AC
Wire Range: 0.35mm2~1.5mm2
IP Rating: IP67
Operation Temperature: -40 ℃ ~+125 ℃
Salt Spray Resistance: 144H (mating state)
HVIL: Yes
Shell: Plastic
Contact Now
Company Info.
Neo Power Energy Tech Limited
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Watertight High Speed Data Transfer Hybrid Power Connector Quick Mating HV IP67B

Watertight high-speed data transfer Quick Mating HV IP67B Connector

Hot sale New Energy Car 32 Way Signal Connector

Part No:

Features:

  • Secondary lock function

  • Cable range: 0.35mm2~1.5mm2

  • Poka-yoke

  • HVIL

  • Touch-proof

  • 360°shielding

Application:

  • Motor controller
  • Driving system
  • charging system

Specifications:

  • Rated current: Power:13A Max Signal:5A Max
  • Rated voltage: DC 500V
  • Insulation resistance: 5000MΩ MIN( DRY)200MΩ MIN(RH 95%)
  • Dielectric withstanding voltage:3000V AC
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67B

Parameters:

Rated Current:13A Max Signal:5A Max
Rated Voltage:

DC 500V

Insulation Resistance:5000MΩ MIN( DRY)200MΩ MIN(RH 95%)
Dielectric Withstanding Voltage:3000V AC
Temperature Range:-40~+125 ℃
IP Rating:IP67B
Application:Motor controller, driving system, charging system

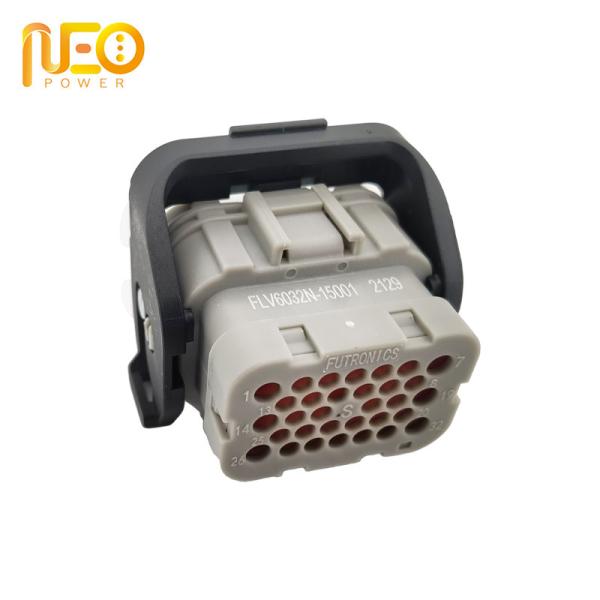

Product Pictures:

Drawings


Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.


Certifications & Approvals


The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
