| Categories | Wireless Modbus RTU |
|---|---|
| Brand Name: | Lensen |
| Model Number: | LS-R324 |
| Certification: | FCC |
| Place of Origin: | China |
| MOQ: | 2pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 6000pcs/month |
| Delivery Time: | 2-8days |
| Packaging Details: | standard carton |
| Power Output: | 1W |
| Frequency: | UHF |
| Interface: | RS232, RS485, USB |
| Distance: | 2km |
| Channels: | 15 |
| Application: | PLC wireless communicaiton |
| Digital: | 4DI4DO |
| Analog: | 4AI |
| Company Info. |
| Shenzhen Qianhai Lensen Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Wireless Modbus DTU PLC Remote Control Sensors And Pumps Wireless Communication System

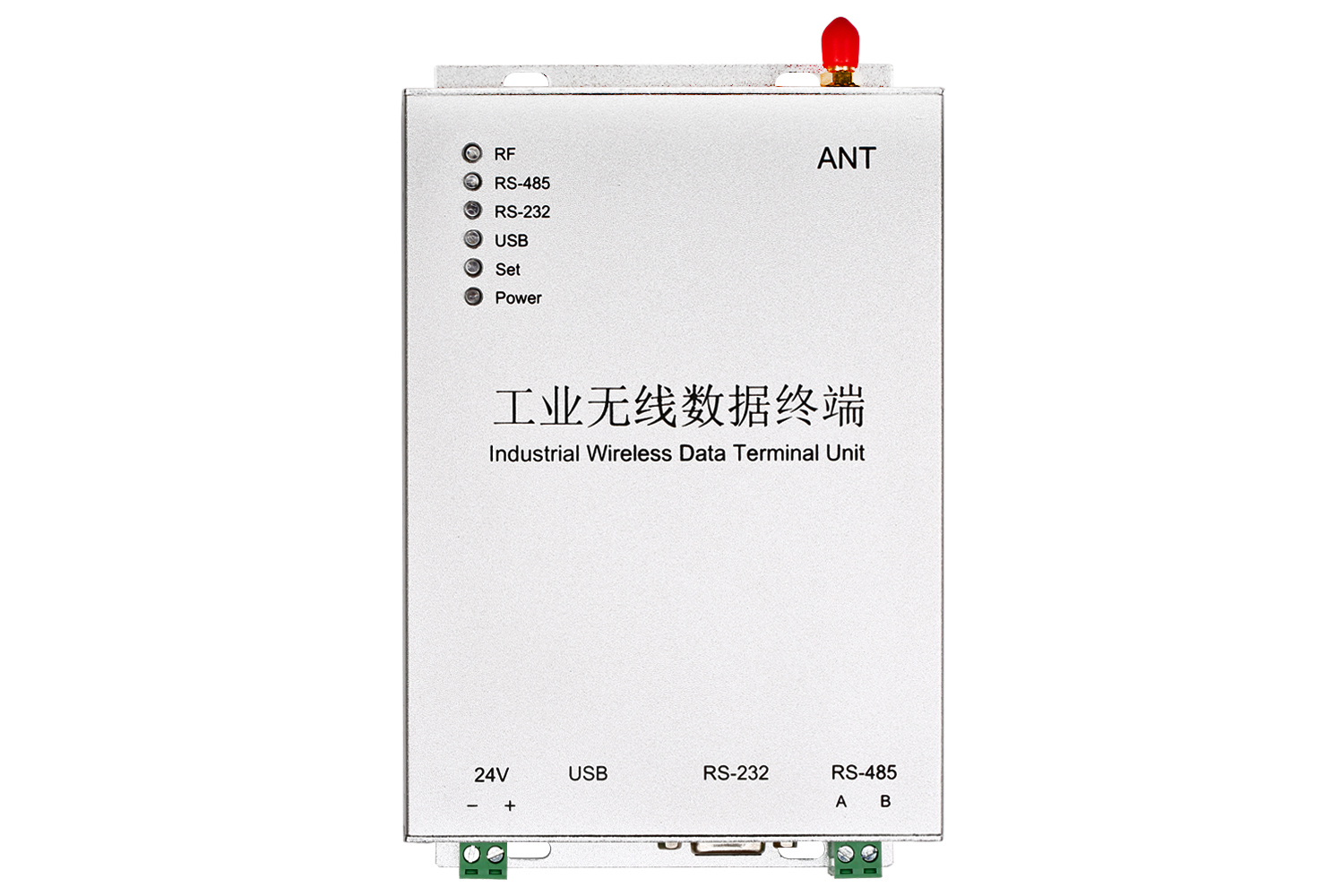

Use LS-R324 as master, it connects with your PLC/HMI via RS485/RS232 port.
LS-R324 is a 1W radio modem, transmit 3km LOS. It supports UHF band, 24V power supply. Usually works as wireless DTU to connect with PLC and other industrial control devices. LS-R324 Supports RS485 Modbus RTU protocol. Has the advantage of register data restore function.
| Frequency | 433MHz or 450MHz, 470MHz |
| Power Output | 1W(3000m LOS) |
| Protocol support | Standard Modbus RTU protocol or user-defined protocol |
| Power supply | 9-36V DC usually use 24V DC or 12V DC |
| Interface | RS-485(default)or RS232 or USB |
| Channel No. | 15 channel, use DIP to change |
| Antenna | Free sucker antenna with 1.5m cable(buy 5.5dBi sucker antenna) |
| Temperature | -35℃~+75℃ (industrial) |
| Dimension | 175×115×32(mm) exclude antenna |
| Fix method | Screw |

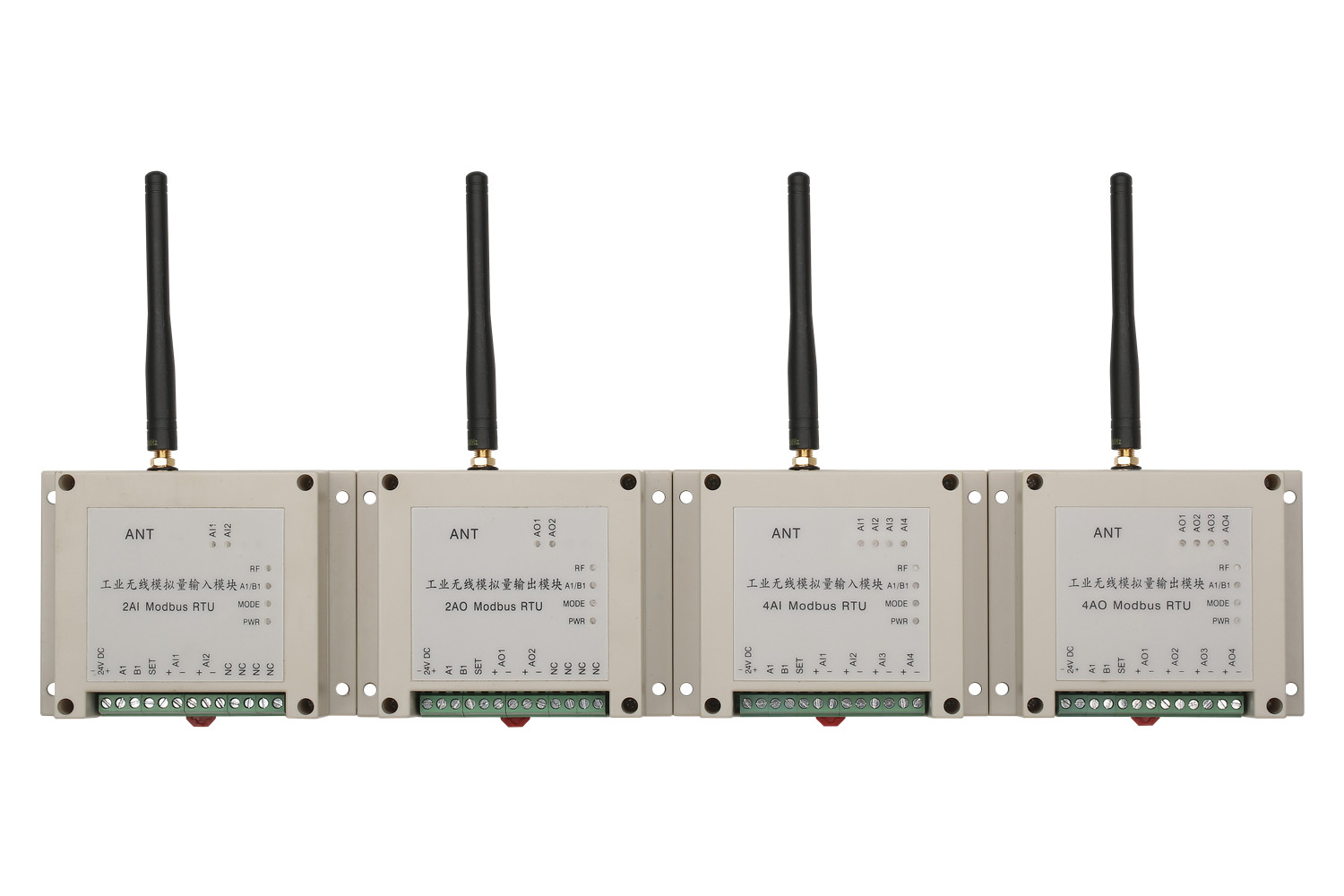

Use LS-RDIO or LS-RAI as slaves to connect with local side sensors, pumps, alarms etc.
| Frequency | 433MHz or 450MHz or 470MHz | |
| Power output | 1000mW(3000m) | |
| Products | 2AI,4AI,2AO,4AO | |
| Input type | 4-20mA or 0-5V or 0-10V | |
| Output type | 4-20mA or 0-5V or 0-10V | |
| Resolution ratio | AI: 24 bit | |
| AO: 12 bit | ||
| Accuracy | AI: ±0. 2% | |
| AO: ±0. 5% | ||
| Power supply | 9-36V DC usually use 24V DC | |
| Interface | RS-485 | |
| Channel No. | 16ch default, can program via DIP switch | |
| Antenna | Sucker antenna with 1.5m cable | |
| Working temperature | -35℃~+75℃ industrial | |
| Working humidity | 10%～90% relative humidity, no condensation | |
| Dimension | 2AI,4AI | 115×90×40(mm) |
| 2AO,4AO | ||
| Fix way | Standard 3.5 inch industrial DIN guild rail | |
The master and slaves will wireless RS485 communication, we support Modbus RTU protocol.
Wireless Control distance is around 2km LOS.
Welcome to try and test. Any questions, welcome to contact Sunny freely.
|
