| Categories | Current Transformer |
|---|---|
| Place of Origin: | China |
| Brand Name: | SUCHEN |

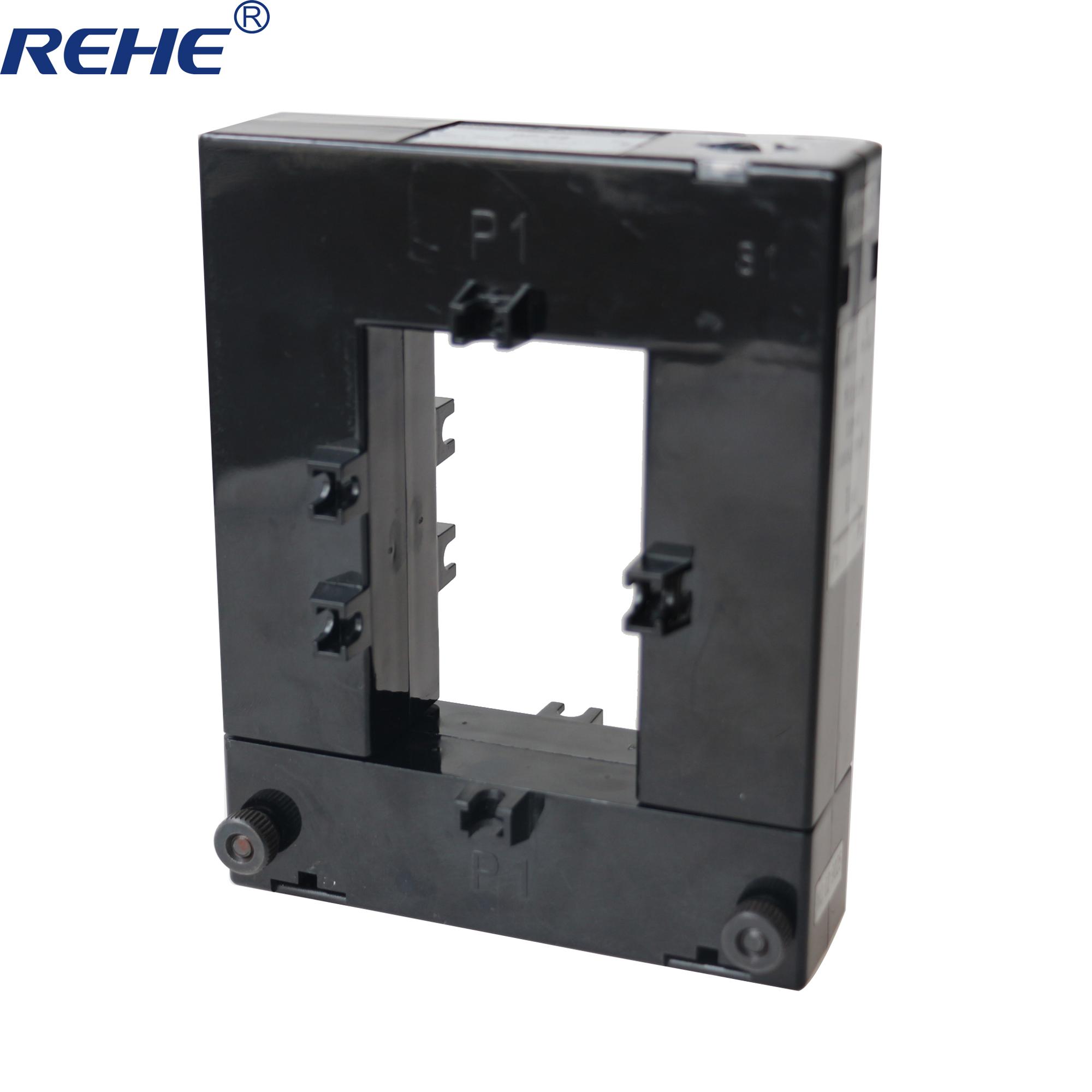

| Model Number: | DP-58 |
| Usage: | Current |
| Phase: | Single |
| Coil Structure: | TOROIDAL |
| Coil Number: | AUTOTRANSFORMER |
| Usage:: | Current |
| Coil Structure:: | Toroidal |
| Coil Number:: | Autotransformer |

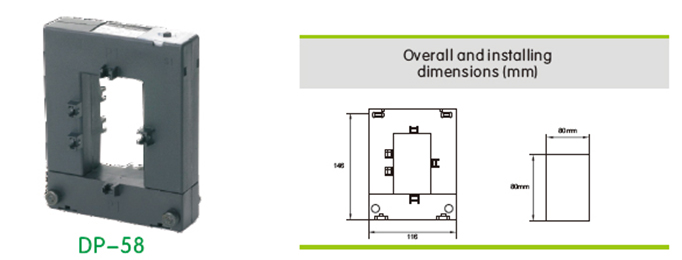

| widow size:: | 50*80 mm |
| Input range:: | 250A -1200 A |
| Accuracy:: | 0.5/ 1.0 |
| Rated output:: | 5A / 1A |
| Case:: | PC/UL94-V0 |
| Packaging Details: | 1) There's Foam box which is for DP Series split core current transformer and Accessory. 2) Then put it to Standard Export Cartons. 3) One carton(43*24.5*36cm) is for 18 pieces. |
| Price: | $108.45/pieces 1-19 pieces |
| Company Info. |
| YUEQING RENHE ELECTRIC CO., LTD. |
| View Contact Details |
| Product List |
Features

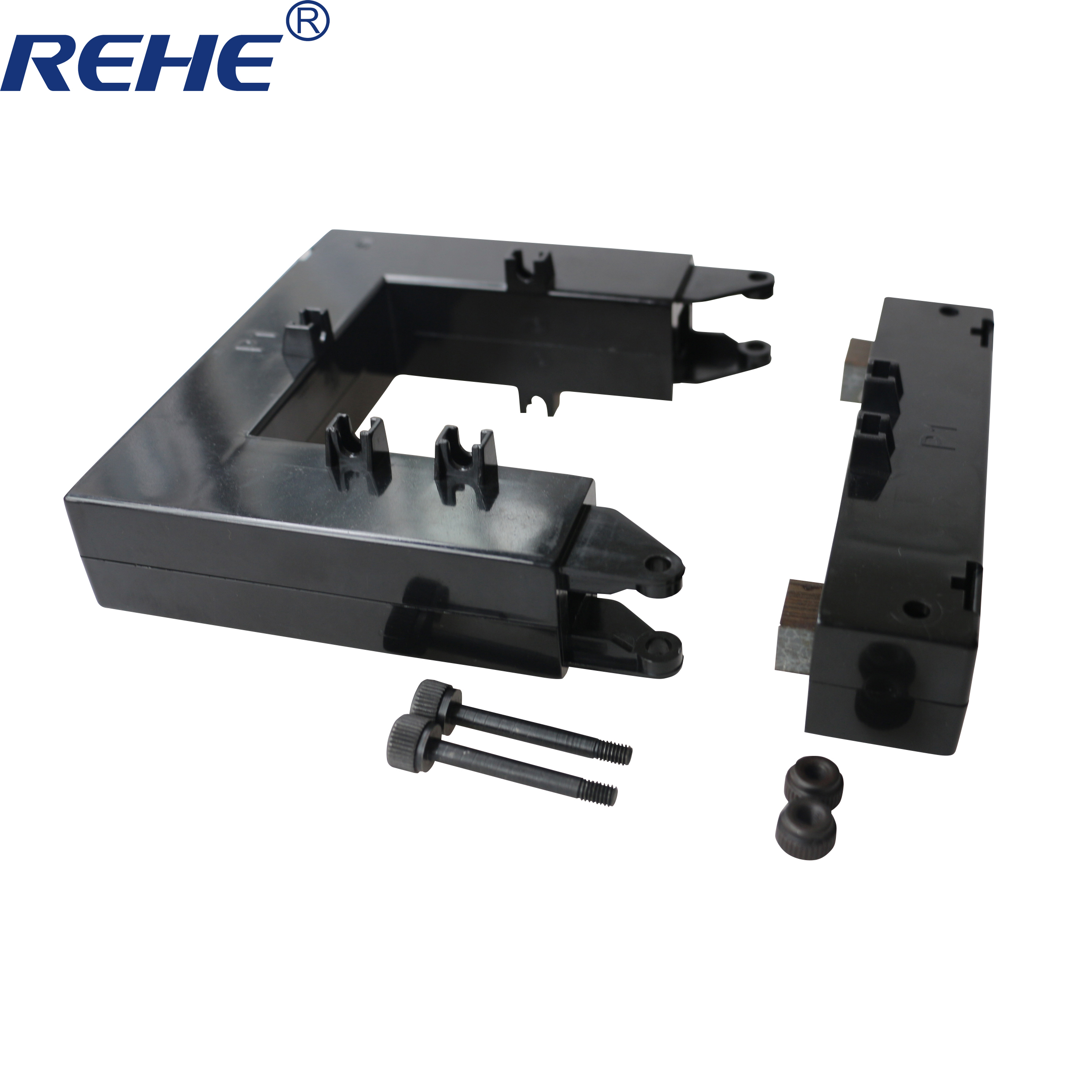

1) Double-screw fastening, safe, easy to install, portable
2) Two built in fixing methods: Base; Busbar mounting
3) Wide inner window, allowing clamping of big cables or bus-bars
4) Wide range of sizes to accommodate all the existing installations.
5) Primary current from 5A to 5000A
Specification
| Model | Nominal current ratio | Burden(VA)/Accuracy | |
| 0.5 | 1.0 | ||
| DP-58 | 250/5A | / | 2.5 |
| 300/5A | / | 2.5 | |
| 400/5A | 2.5 | 2.5 | |
| 500/5A | 2.5 | 5 | |
| 600/5A | 2.5 | 5 | |
| 800/5A | 3.75 | 5 | |
| 1000/5A | 5 | 10 | |
| 1200/5A | 5 | 10 | |
|
