High Efficiency LED Lights CCD Optical Multifunction Color Grading Machine

High Efficiency LED Lights CCD Optical Multifunction Color Grading Machine​

1. Color Sorter Machine Working Flow and Principle:

Raw materials are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate. Under the effect of light source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber

2. Technical Parameters:

3.Machine Advantages:

4. Examples of Color Sorting Examples:

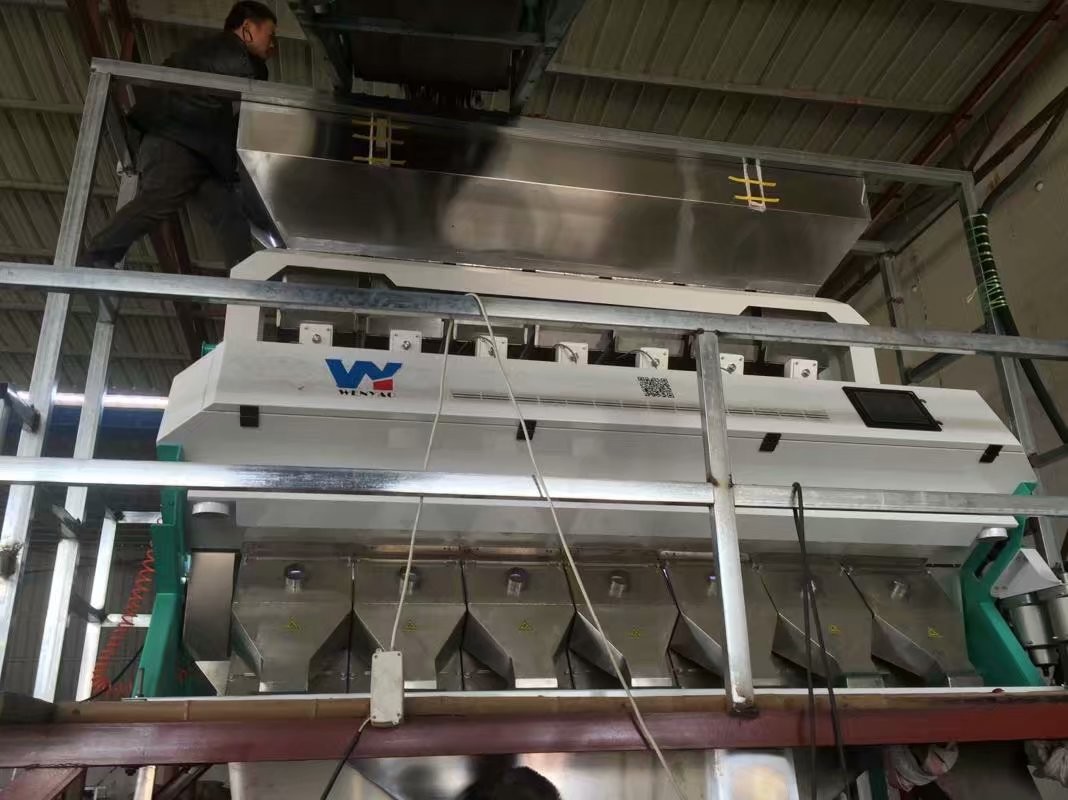

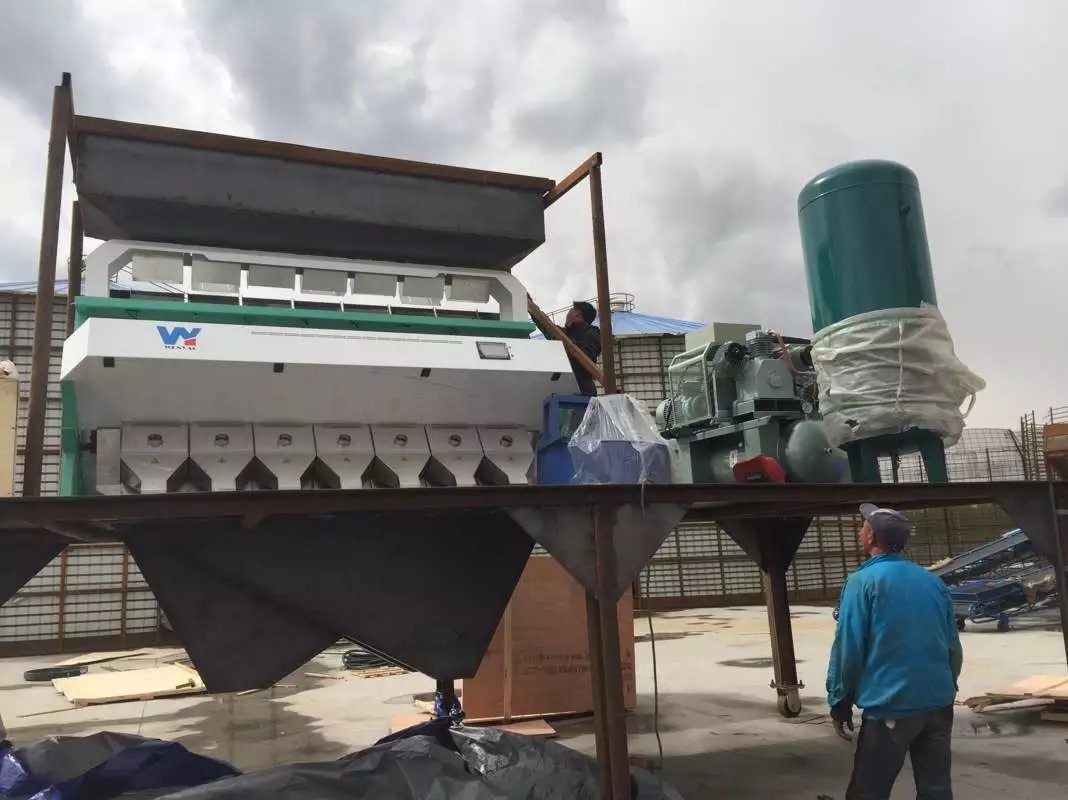

5. Customer Local Site:

6.The Color Sorter characteristic:

1. Automatic computing and intelligent identification with high speed camera.
2. 5400Pixel CCD image acquisition system with high speed chip.
3. Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
4. Self design high frequency ejectors,It means high speed and accurate sorting performance.
5. Low temperature LED light source system,Cooling system to make the LED lamp more long life.

6. WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

7. Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.

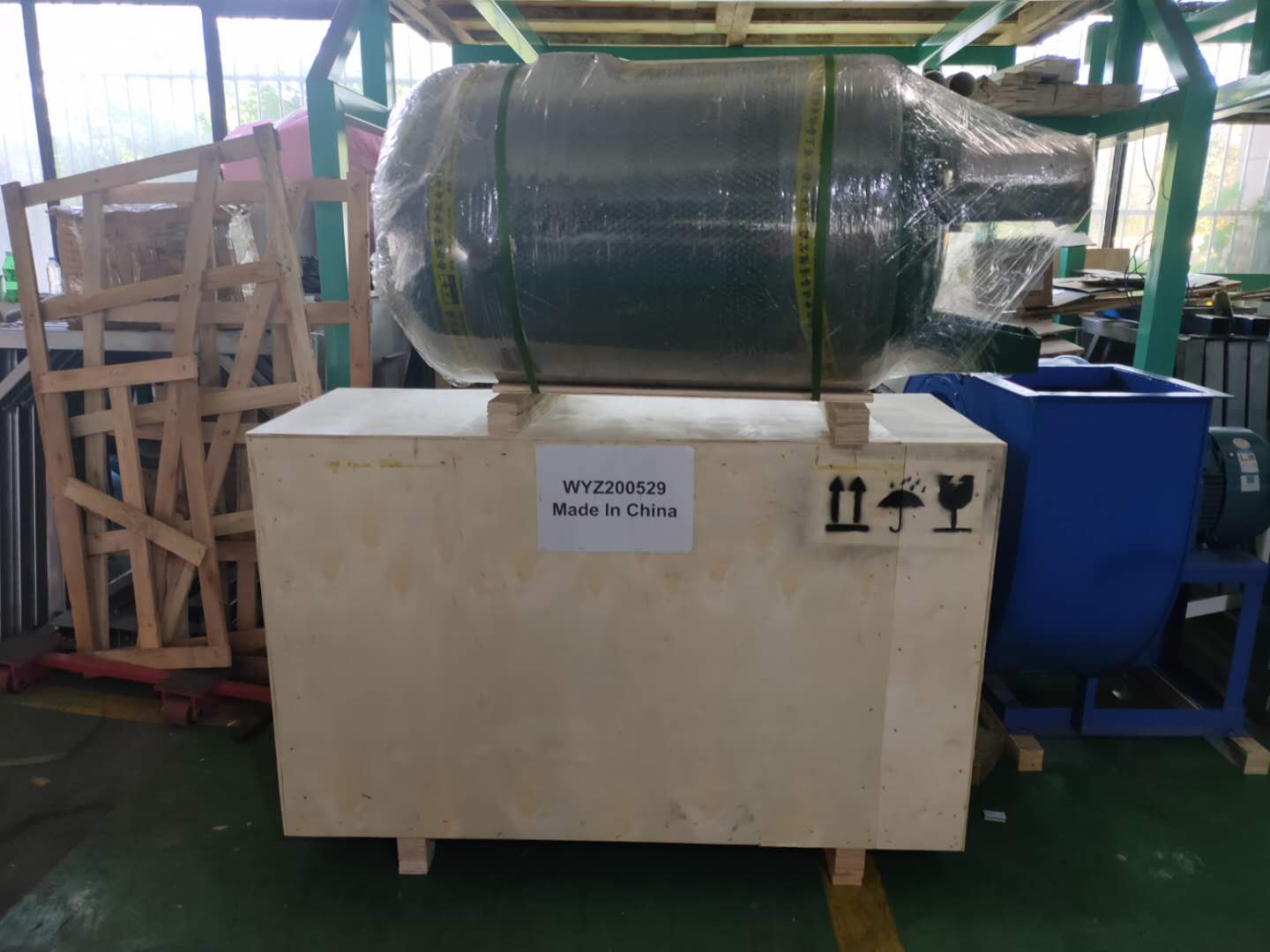

7. Packing and Delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
