| Categories | 2D Barcode Scanner Module |
|---|---|
| Brand Name: | Rakinda |
| Model Number: | RK65 |
| Certification: | FCC Part15 Class B, CE EMC Class B |
| Place of Origin: | China |
| MOQ: | 1 pc |
| Price: | Negotiation |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 10000 pcs per month |
| Delivery Time: | 5-8 Working days |
| Packaging Details: | carton package |

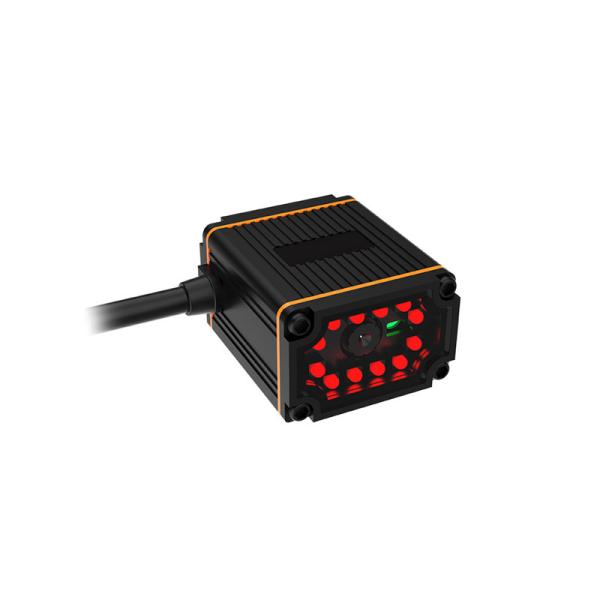

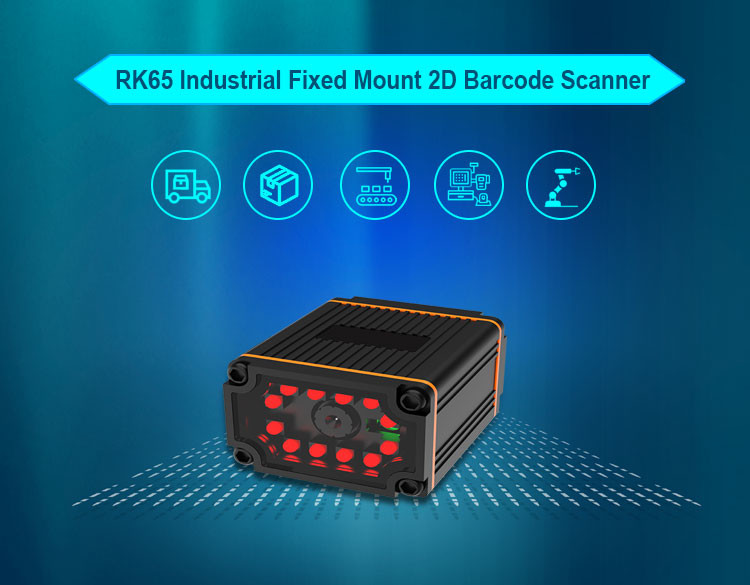

| Model: | Industrial 2D Barcode Scanner Module |
| Interface: | RS232/ USB |
| Image Sensor: | 1280 x 800CMOS |
| Aiming: | Green LED aiming |
| Dimensions: | 36（W）×43（D）×24（H） |
| Sealing: | IP65 |
Industrial Barcode Scanners Features:
Supports high-performance one-dimensional/two-dimensional barcode
scanning, and has a good performance for poorly printed,
contaminated or deformed barcodes that are difficult to read
RK65 has IP65 industrial protection grade, suitable for various
complex industrial environments
RK65 has the ability to quickly capture mobile barcodes, and has a
high degree of recognition for barcodes that move quickly in the
assembly line.
RK65 adopts a large-angle optical lens, which supports fast
scanning of long and thin barcodes in close proximity
USB/RS-232 multiple communication interface options, using
lock-attached cables and industrial port connectors, the connection
is more reliable
Parameters of Industrial QR Code Reader
Scan Performance | Resolution | 1280 * 800 | ||
| Field of view | Horizontal 46° (H),Vertical 29° (V) | |||
| Illumination | High brightness red light/High brightness white light | |||
| Aiming | Green LED aiming | |||
| Scan Mode | Auto sense; external pulse mode; continuous mode; serial command mode | |||
Symbologie s | 1D | UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited , Composite Code-A , Composite Code-B , Composite Code-C | ||
| 2D | PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode | |||
Typical depth of field | Versio n | RK65-SR | RK65-HD | |
DOF | Code 39 (5mil) : 60 mm ~ 250 mm EAN-13 (13mil) : 50 mm ~400 mm QR (10 mil) : 35 mm ~ 130 mm | Code 39 (3 mil) : 50 mm ~ 90 mm Data Matrix (10 mil) : 40 mm ~ 150 mm QR (7 mil) : 35 mm ~ 120 mm | ||
Resol ution | 1D : ≥4 mil ; 2D : ≥9 mil | 1D : ≥3 mil ; 2D : ≥7 mil | ||
Contrast | ≥20% (UPC/EAN 100% , PCS 90%) | |||
Mechanical / Electrical Parameters | Dimensions (mm) | 36(W)×43(D)×24(H) | ||
| Enclosure | Aluminum alloy | |||
| Sealing | IP65 | |||
| Indicator | Buzzer, LED | |||
| Interface | RS232,USB (HID ; CDC),Ethernet(TCP/UDP/Modbus) | |||
| Power | 5-36 VDC | |||
| Input | 1 way out photoelectric coupled isolate input (NPN / PNP /relay) | |||
| Output | two ways out photoelectric coupled isolate output (Good ; NG) | |||
Current@5 VDC | Working current 300 mA ±5%(typical), 450 mA ±5%(Max) Standby current 100 mA ±5% | |||
| Environmenta l | Storage | -40℃~+70℃ | ||
| Working | -20℃~+50℃ | |||
| ESD | ±20 kV(air discharge),±8 kV(direct discharge) | |||
| Certification | CE EN55022 , FCC Part 15 Class B , CE EMC Class B | |||
|
