| Categories | Diatomite Filter |
|---|---|
| Brand Name: | Yuwei |
| Model Number: | YWLS-1 |
| Certification: | CE,ISO |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | USD+500-8000+set |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Delivery Time: | 5-8 work days |
| Packaging Details: | wooden case |
| Material: | ss316 |
| HS Code: | 8421299090 |
| Capacity: | 2T/H |
| Core Components: | Motor, Pump |
| Voltage: | 220-380V |
| Warranty: | 1 year |
| working pressure: | ≥0.3Mpa |
| Product name: | Diatomite Filter |
| Motor: | 1.5kw |
| Outlet dia: | DN50 |
| After sales service: | online support |

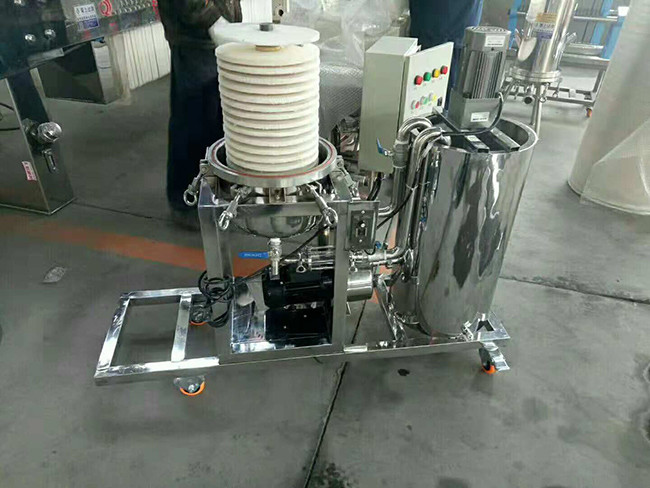

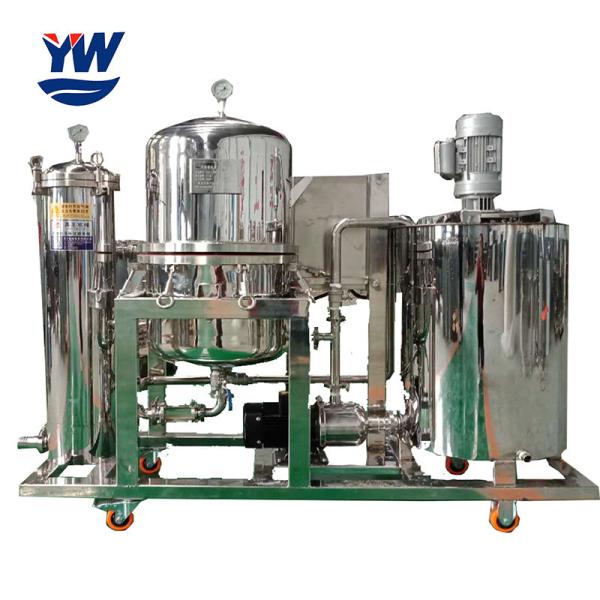

Stainless Steel Wine Beverage Soy Sauce Vinegar Diatomite Filter
Description
The stainless steel diatomite filter is made after digestive
absorption of abroad similar product, it is widely used for liquid
clarifying filtration of white wine, fruit wine, beverages, soy
sauce, vinegar, as well as liquid product in pharmaceutical
industry, chemical industry, etc. The material adopts food grade
stainless steel, inside surface and outside surface are both
automatic mechanically polished.
The filtration unit adopts the most advanced screen filter tray,
the liquid inlet design is very logical, which makes the thickness
of diatomite layer is uniform, thereby guarantees the precision of
the filtered liquid.
Specification
| Model | Size(mm) | Filter area(m2) | Quantity of plate | Inlet/outlet(DN) | Max.Flow(t/h) | Pressure of work(Mpa) | The model of pump | The power(kw) |
| YWWk220 | 900×300×400 | 1 | 20 | 32 | 1-2 | ≥0.2 | YL3-20 | 0.75 |
| YWWk250 | 1100×350×450 | 2 | 20 | 32 | 1-3 | ≥0.2 | YL3-20 | 0.75 |
| YWWk330 | 1700×600×750 | 3.1 | 20 | 32 | 3-5 | ≥0.3 | YL5-25 | 1.5 |
| YWWk400A | 2350×680×800 | 9.8 | 38 | 32 | 9-12 | ≥0.3 | YL15-25 | 3 |
| YWWk400B | 1840×680×800 | 5.1 | 20 | 32 | 6-8 | ≥0.3 | YL10-25 | 2.2 |
| YWWk500A | 2450×750×850 | 15.9 | 38 | 25 | 13-15 | ≥0.3 | YL20-25 | 4 |
| YWWk500B | 1950×750×850 | 8.9 | 20 | 25 | 8-10 | ≥0.3 | YL20-25 | 4 |
| YWLS-1 | 100×300×600 | 1 | 20 | 25 | 1-2 | ≥0.3 | SHL2-50 | 0.55 |
| YWLS-3 | 100×300×950 | 2 | 40 | 25 | 2-3 | ≥0.3 | SHL2-50 | 0.55 |
| YWLS-5 | 1200×600×1350 | 2.4 | 20 | 32 | 3-5 | ≥0.3 | SHL4-40 | 0.75 |
| YWLS-10 | 1200×600×1650 | 4.8 | 40 | 40 | 8-10 | ≥0.3 | SHL12-40 | 2.4 |
| YWLS-15 | 1200×600×1800 | 7.2 | 60 | 50 | 12-15 | ≥0.3 | SHL16-40 | 3 |
| YWLS-20 | 1200×600×2100 | 9.6 | 80 | 50 | 18-20 | ≥0.3 | SHL20-40 | 4 |
|
