Full Specification Frame Manual Mold Moving Vulcanizing Machine PLC Control 400T

Full Specification Frame Manual Mold Moving Vulcanizing Machine PLC Control 400T

Full Specification Frame Manual Mold Moving Vulcanizing Machine PLC Control 400T
Full Specification Frame Manual Mold Moving Vulcanizing Machine PLC Control 400T
Categories Plate Vulcanizing Press
Brand Name: HHS
Model Number: 2000T
Certification: CE
Place of Origin: Qingdao Shangdong
MOQ: 1 set
Price: USD 5000-50000
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets/Year
Delivery Time: 30 work days
Packaging Details: standard wood package or based on clients request
Type: Vulcanizer
Colour: customized
Voltage: customized
Working Layers: 1layer
Clamping force: 400T
advantage: high production
Contact Now
Company Info.
Qingdao Honghesheng Industry Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Full Specification Frame Manual Mold Moving Vulcanizing Machine PLC Control 400T

Non-Standard Custom Full Specification Frame Vulcanizing Machine 400T Manual Mold Moving Vulcanizing Machine PLC Control

Product Application

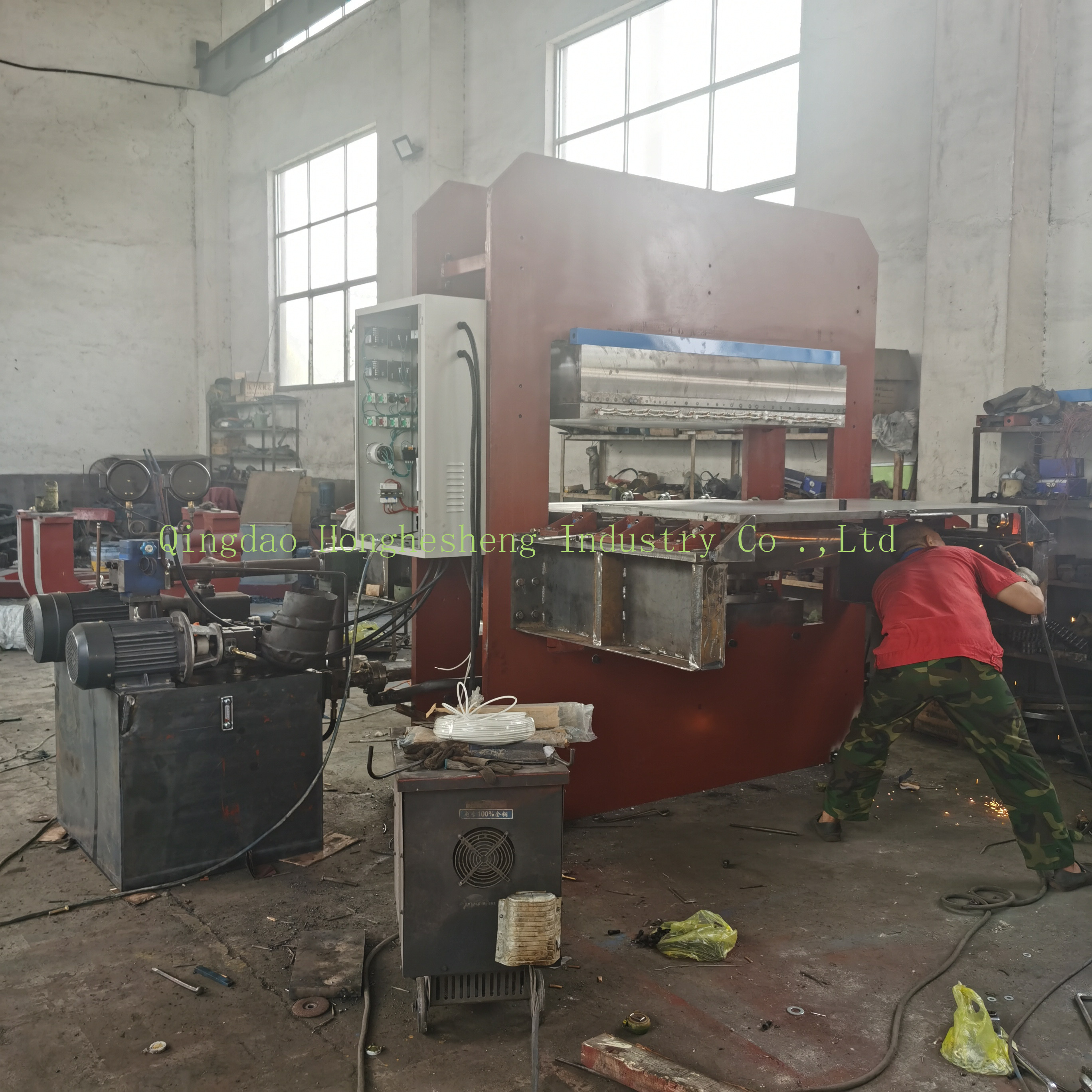

This machine consists of heating plate , beam and plate form , cylinder , base , electrical system , etc .it is widely used for heating , vulcanizing and solidifying various kinds of rubber molded product , such as seal , gasket , o rings , etc

Main Features

1. Hydraulic system:
When the hydraulic system reaches the working fluid pressure, keep the pressure for 1 hour, the pressure drop of the hydraulic system is less than 10% and there is no blockage or leakage in the hydraulic system; when the pressure drop exceeds 10% of the working pressure, the hydraulic system automatically compensates for pressure until it reaches the working pressure until.

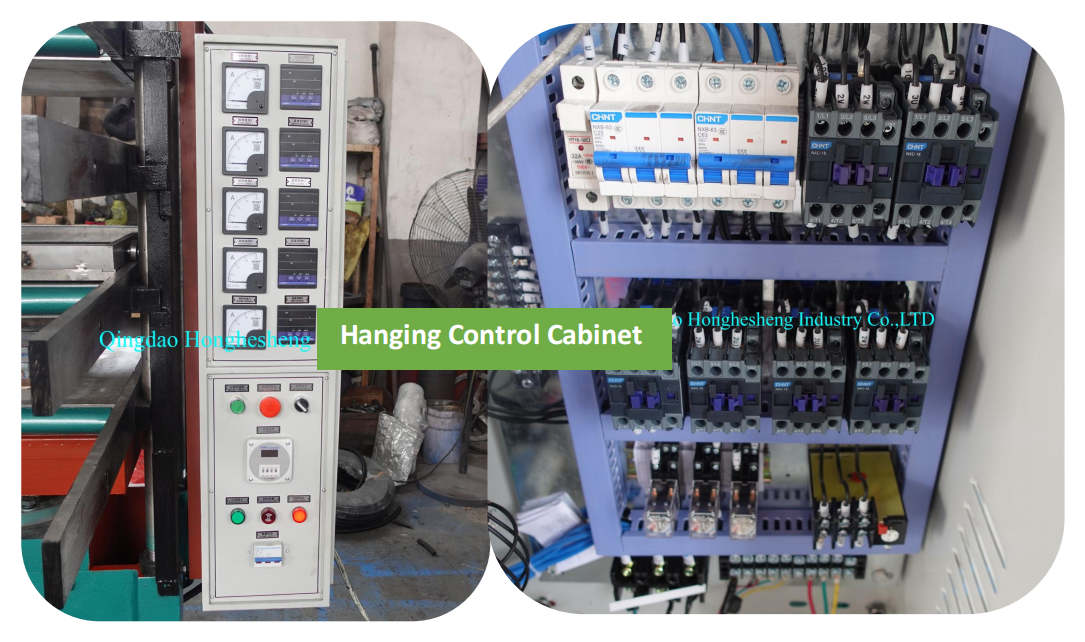

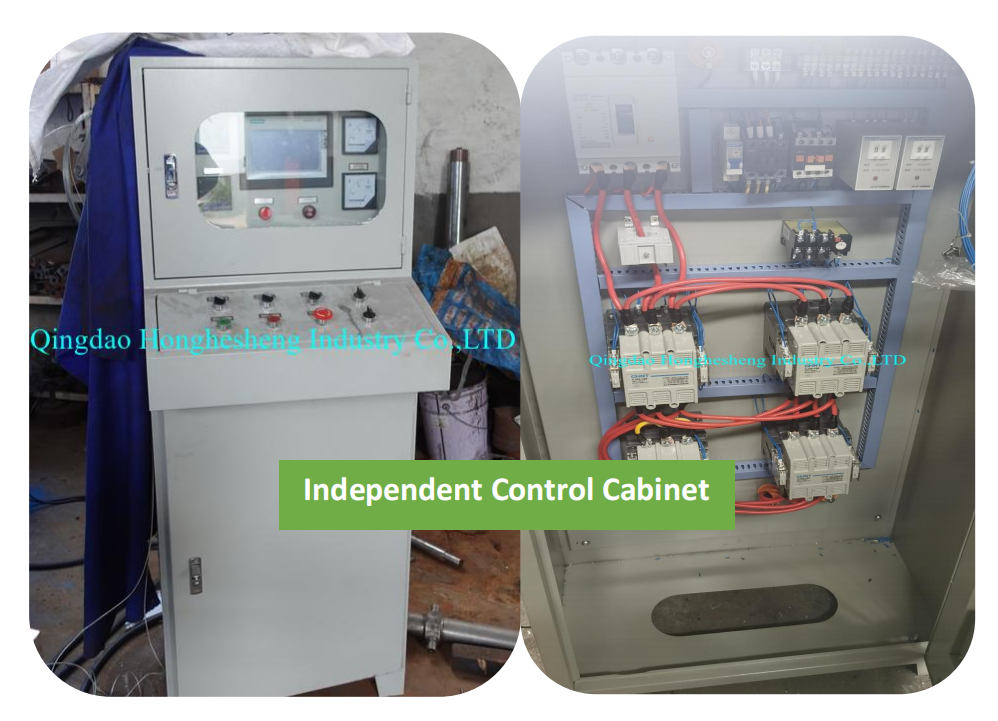

2. Electrical control
Use automatic control system. Two control modes can be realized: automatic control and manual control; the automatic mode can realize functions such as automatic opening, closing, exhaust, vulcanization timing, pressure compensation, and alarm after vulcanization.
The company can also design and customize various non-standard rubber machinery and equipment according to the needs of customers.

Technical Parameter

Structural form Four-column structure
Hydraulic upward type
Nominal clamping force
4.00MN (400T)
Hot plate specification
700×1400
Number of working layers
1 layers
Hot plate spacing
500mm
Plunger stroke
500mm
Number of cylinders
1
Motor power
11.5KW
temperature difference
≤5℃

Detailed Images

IMG_20210811_154644IMG_20210811_155213IMG_20210811_154910IMG_20210811_154723IMG_20210811_155347IMG_20210811_155536

_20220507144959_20220507145019_20220507145109_20220507145044_20220507145132
