| Categories | Test Finger Probe |
|---|---|
| Brand Name: | kerang |
| Model Number: | HT-I20/21 |
| Certification: | certification |
| Place of Origin: | CHINA |
| MOQ: | 1SET |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets/month |
| Delivery Time: | 5-7 days |
| Packaging Details: | plywood |
Test Probe with Force HT-I20 & HT-I21
Standard:IEC60884-1 figure 9 and figure 10.
Application:The HT-I20 test probe with 20N force is used to test whether the live parts inside can be touched.
The HT-I21 test probe with 1N force is for testing whether the live parts with the protection of socket can be touched.
Feature:Nylon handle + probe.
Parameters:
1,Test probe with force of 20N HT-I20:
The probe part: 3+0.03 0×1+0.015 0 ×80±0.5;
the diameter of the round: R0.2±0.05, with 20N force.
2,Test probe with force of 1N HT-I21:
The probe part: Φ1+0.015 0 ×80±0.5; the diameter of the round:
R0.05,with 1N force.

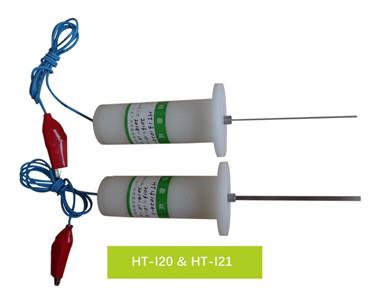

Picture for reference:
|
