Excavator 9~36v Tilt Angle Sensor with 0.05 Degree Static Accuracy

Categories Dynamic Inclinometer
Brand Name: RION
Model Number: HDA436T-CAN2.0B
Certification: CE, ISO
Place of Origin: Guangdong, China
MOQ: 1
Price: $141.00/Pieces
Payment Terms: T/T, PayPal
Supply Ability: 5000/month
Delivery Time: 7 days for samples
Packaging Details: cartons
Usage: Excavator tilt sensor
Theory: dynamic tilt sensor
Output: CAN2.0B
Voltage - Supply: 9~36v
Operating Temperature: -40C° ~ +85C °
protection class: IP67
Highly anti-vibration performance: >2000g
Sensitivity temperature coefficient: ≤100ppm/℃
Response time: 0.01s
static accuracy: ± 0.05°
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Excavator 9~36v Tilt Angle Sensor with 0.05 Degree Static Accuracy

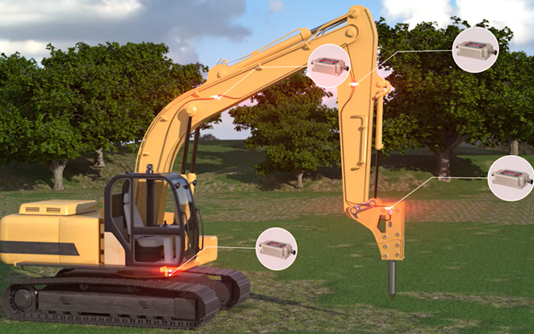

excavator tilt sensor


RION QUALIFICATION CERTIFICATION

○ Enterprise quality system standard: ISO9001: 2015 standard (certification No.: 128101)

○ High-tech enterprise (Certificate No.: GR201844204379)

○ CE certification: registration No.:AT18250EC001210

○ Revision date: 2022-3-30

Note: Product functions, parameters, appearance, etc. will be adjusted as the technology upgrades. Please contact our pre-sales business to confirm when purchasing.



HDA436TCONDITIONINDEX
Measure rangeRoll ±180°, pitch ±90°, azimuth ±180° (initial value at power-down is 0°)
Measure axisX axis / Y axis / Z axis
Resolution0.01°
Static accuracy@25℃± 0.05°
Dynamic accuracy@25℃± 0.1°
Bias Instability (Allan)8°/h
Zero point temp. coefficient-40~85℃±0.01°/℃
Sensitivity temp. coefficient-40~85℃≤100ppm/℃
Power-on startup time1S
Response time0.01S
Output signalRS485/RS232/TTL
Electromagnetic compatibilityAccording to EN61000 and GBT17626
MTBF≥ 50000 hours / time
Insulation resistance≥100 Megohm
Impact resistance100g @ 11ms,3 axial direction (half sinusoid)
Anti-vibration10grms,10~1000Hz
Waterproof levelIP67
CableStandard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight≤165g (excluding cables)

▶ KEY FEATURES

★ Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)

★ Dynamic accuracy: ± 0.1°

★ DC 9~6V wide voltage input

★ Wide temperature operation -40~+ 85℃

★ Resolution 0.01°

★ IP67 protection level

★ High anti-vibration performance>2000g

★ Size: L72×W47×H22.5mm


ELECTRICAL PARAMETERS

PARAMETERCONDITIONMINTYPMAXUNIT
Supply voltagestandard912,2436V
Working currentwithout load60mA(12V)mA
Operating temp-40+85
storage temp-40+85

MECHANICAL PARAMETERS

○ Connector: M12 aviation plug 5P connector

○ Protection level: IP67

○ Shell material: frosted aluminum alloy

○ Installation: Four M4 screws

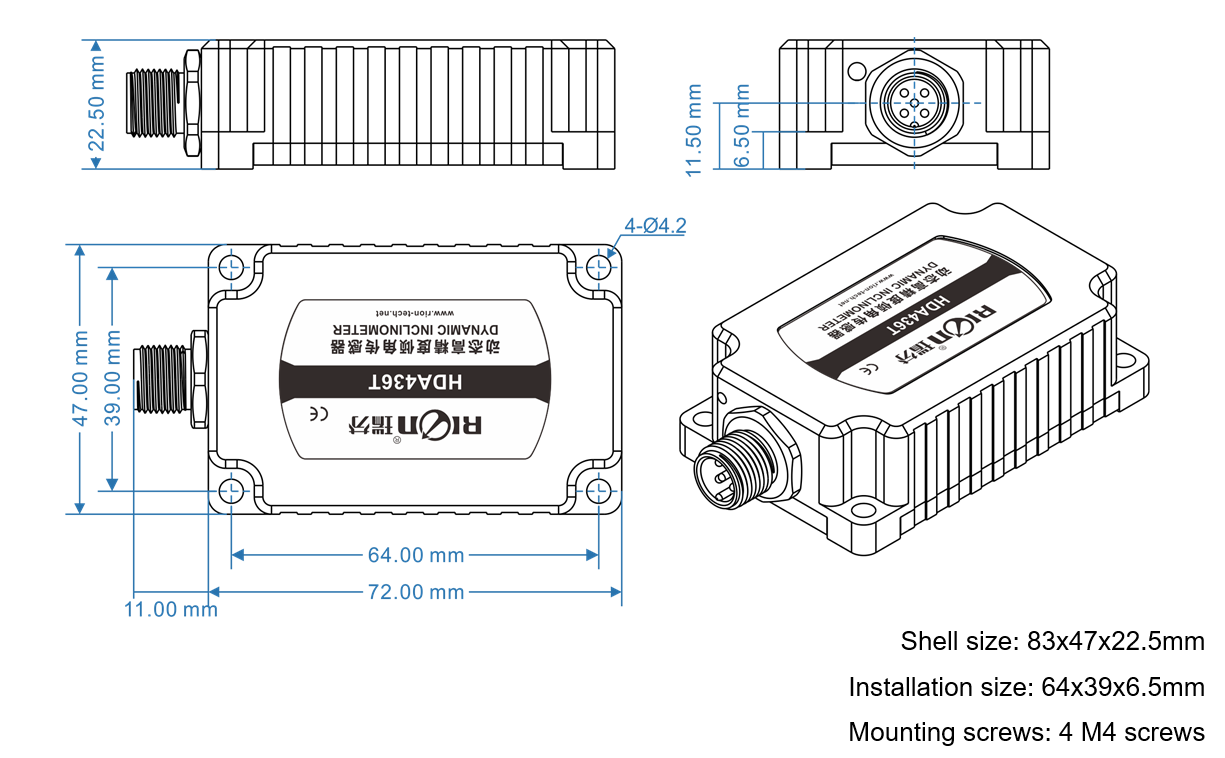

PRODUCT SIZE
