| Categories | Discrete Magnetic Transformers |
|---|---|
| Brand Name: | LINK-PP |
| Model Number: | LPXXXXXX |
| Certification: | UL,RoHS,Reach,ISO |
| Place of Origin: | Guangdong,China |
| MOQ: | 400/2000/10K/25K |
| Price: | $0.06-$3.2 |
| Payment Terms: | TT,NET30/60/90 Days |
| Supply Ability: | 3KK/Month |
| Delivery Time: | Stock |
| Packaging Details: | T&R |
| Original: | ST4202FNLT |
| Equivalent: | LPxxxxxx |
| Speed: | 10Base-T |
| Transformer Type: | Isolation and Data Interface |
| Temperature: | 0°C ~ 70°C |
| File: | PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
| Company Info. |
| LINK-PP INT'L TECHNOLOGY CO., LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
| LINK-PP Part Number | LPxxxxxx |
| Other Part Number | ST4202FNLT |
| Speed | 10 BASE-T |
| Number of Ports | SINGLE |
| POE RATING | NON-POE |
| Package | SMT |
| Temperature | 0°C ~ 70°C |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| APPLICATION-LAN | ETHERNET TRANSFORMER |
| Package Height (Inches/mm) | 5.969 |
| Package Length (Inches/mm) | 12.70 |
| Package Width (Inches/mm) | 9.398 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly | ||||

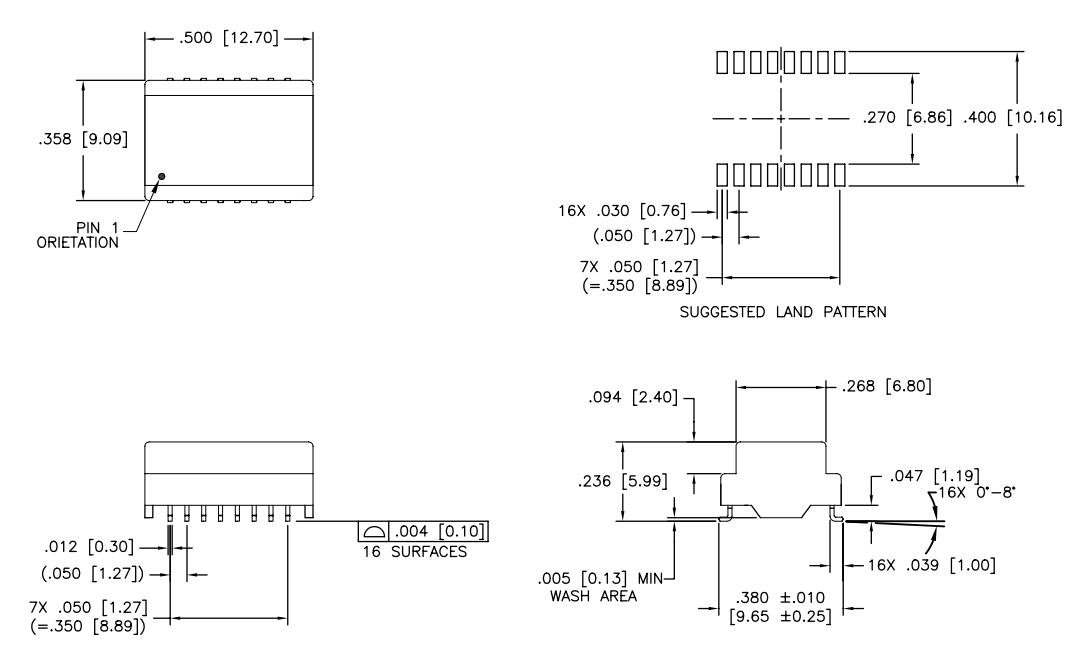

ST4202FNLT Mechanical Specification:

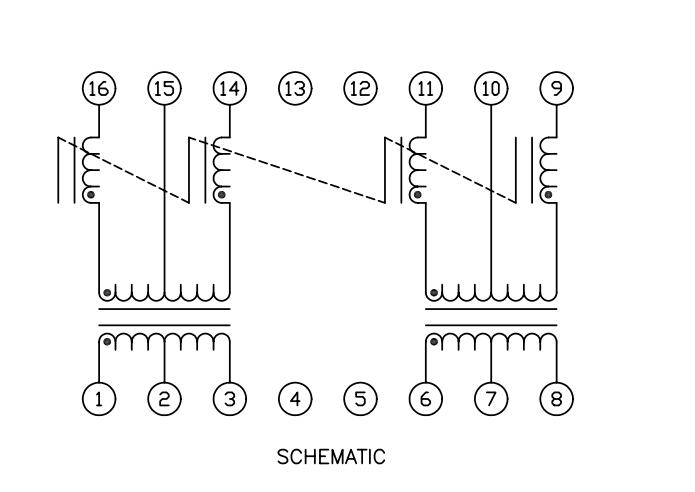

ST4202FNLT 10 BASE-T Lan Transformer Modules Electrical Schematic:

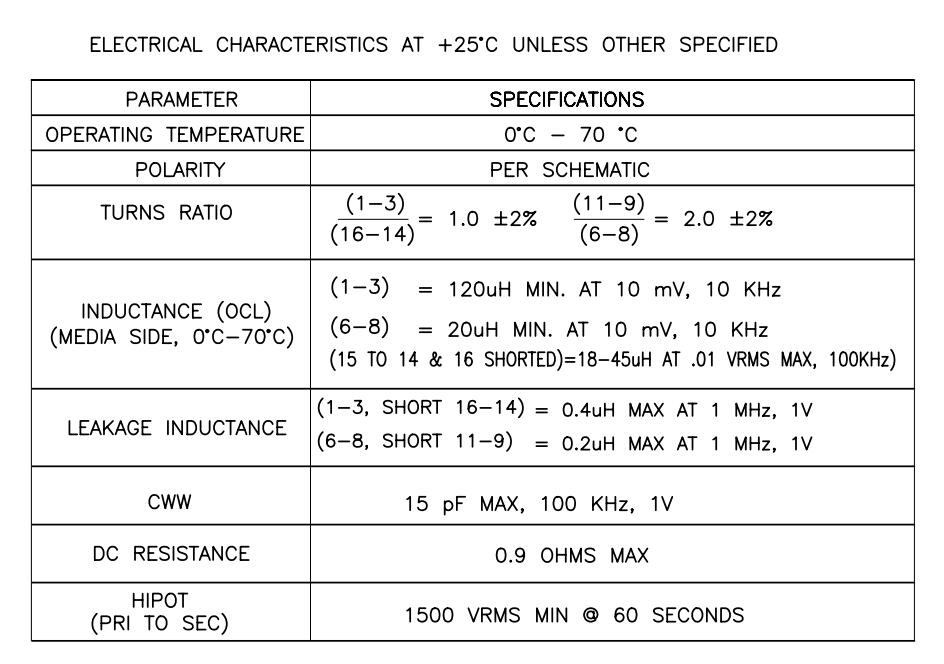

ST4202FNLT SINGLE Port 16 Pin Ethernet Transformer Modules Electrical Specifications:
ST4202FNLT similar Part Number :
| ST4202FNLT | ST4202TNL | ST7010FNL |
| ST7010FNLT | ST7011FNL | ST7011FNLT |
