SINO RoHS Mill DRO 3 Axis Multilingual EIA-422-A Signal Durable

SINO 3 Axes Metal TFT Lathe Machine Digital Display Unit SDS 200 Mounting On Electric Box Three Linear Rulers

This digital display unit is for 3 axes manual lathe machine positioning.

The SDS 200 should be on the lathe's electirc box.

The KA-600 ruler should be for axis Z, and KA-300 or KA-500 rulers should be for axis X and Z1.

The standard cable of the scales is 3 meter, sometimes extension cable is necessary for large size lathe's installation.

The length of extension cable is 1 meter to 10 meter, is the optioned accessories.

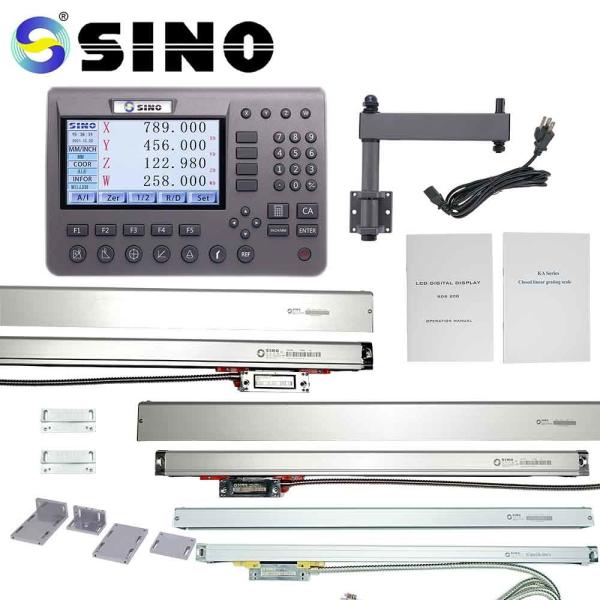

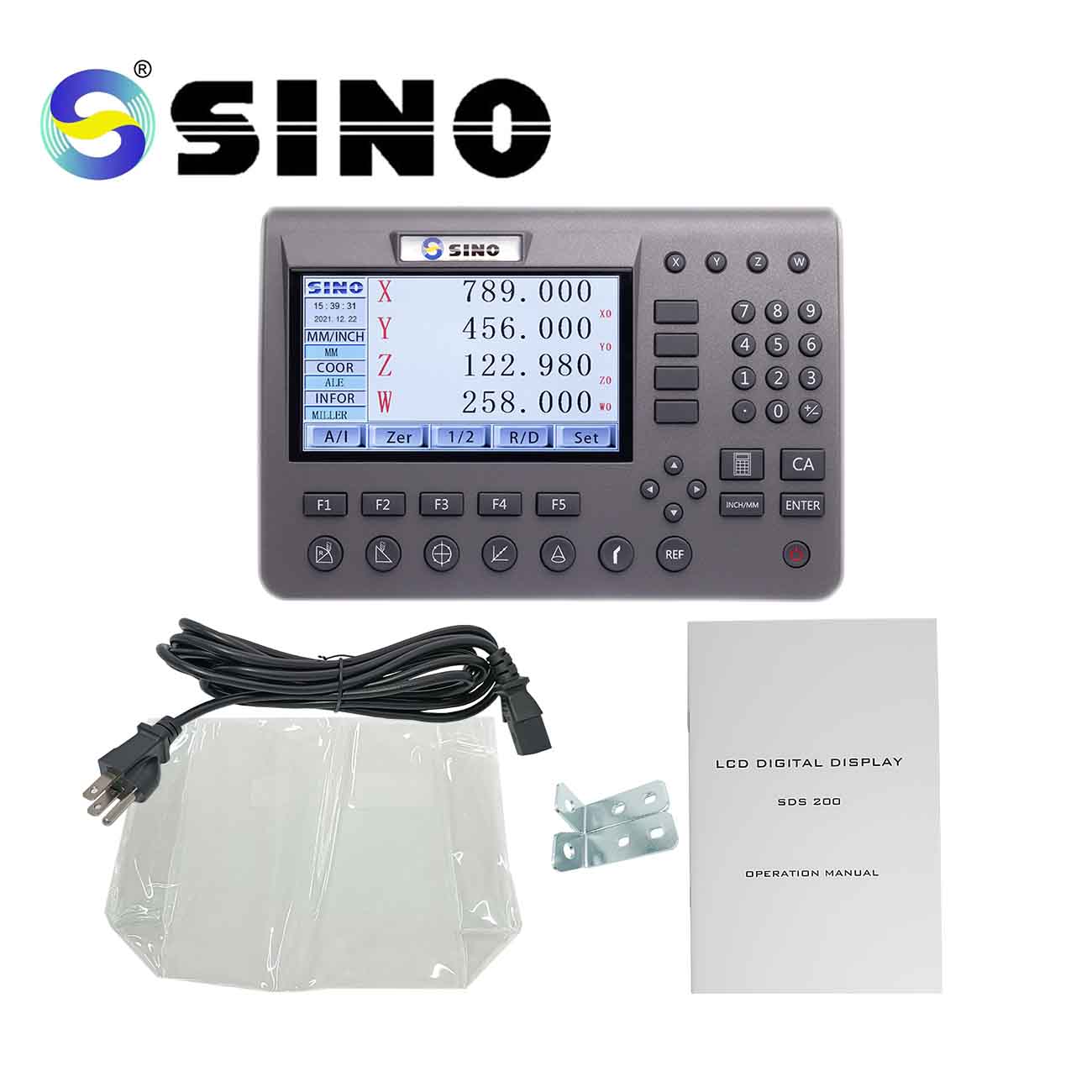

Package list:

Functions for lathe machine:

1. Radius / Diameter Conversion
2. Tool Diameter Compensation
3. Taper Measurement
4. 200 Tools Storeroom

Detail Information:

Pin Description:

All linear scales were tested before delivery. Here is a sample of a scale's test report.

It's a sample that a DRO is mounting on the electric box of a lathe:

It's a sample that KA-500 linear encoder on axis X of lathe:

It's a sample that KA-300 linear encoder on axis Z of lathe:
