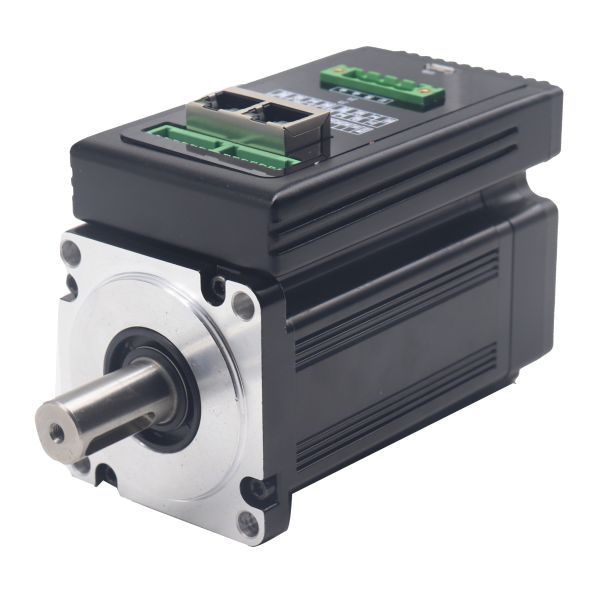

DC Servo Motor Drive 200w With Incremental Encoder Logistics Sorting AGV Robot

DC Servo Motor Drive 200w With Incremental Encoder Logistics Sorting AGV Robot

Product description of DC Servo Motor Drive

一,Application Features

① A combination of servo drive and servo motor in one compact size.

② On equipment suitable for operation in a variety of situations.

③ Support for incremental or absolute encoders.

④ Support position control, speed control, torque control and single-axis control modes.

⑤ RS485/CAN bus communication for multi-axis device control.

二,Supporting functions

① Modbus serial communication protocol (RS485).

② Upper computer software with oscilloscope function for parameter modification and monitoring and debugging.

③ Providing serial port burn-in download tool and supporting online remote serial port upgrade.

Products features of DC Servo Motor Drive

① Highly integrated design reduces installation complexity and saves space · Eliminate the matching process between the driver and the motor, reducing the cost of use
② Adopt EtherCAT/CANopen protocol Wide voltage input (24v~80VDC)
③ Optional off brake protection

④ Integrated single-turn incremental encoder, limited zero memory
⑤ Provide speed and position feedforward parameter configuration to improve response speed
⑥ Integrated I/O, can be set to positive limit, negative limit, origin, multi-function digital output, pulse input detection
⑦ Real-time fault monitoring and protection functions, including overcurrent, overload, overvoltage, undervoltage, overheating,overspeed, and out of tolerance protection

⑧ Provide application scenarios and development kit support for multiple scenarios, shortening user development cycle

Specification of DC Servo Motor Drive

Power supply input	DC24~ 50V (48V)
Rated power Pn(W)	200W
Rated speed(rpm)	3000RPM
Rated torque(Nm)	1.27NM
Maximum continuous operating current (A)	10A
Encoder feedback	2500-line incremental encoder
Overload	2X overload
Communication	RS232, RS485, CAN interface
Operating ambient temperature	-20 to 55°C (no freezing)
Use of environmental humidity	90% RH or less (no condensation)

Advantages of DC Servo Motor Drive

① ①The motor winding protects the power supply from short circuit

②Motor winding inter-phase short circuit protection

③ Encoder disconnection protection

④ Over-voltage protection

⑤ Over-current protection

RFQ

1. How about your company's actual strength?
We have more than 100 employees, a R&D group with 50 people,1 office and 1 factories. Factories and office buildings are larger than 1500 square meters.

2. How about the payment method?

Standard products: 30% deposit, 70% balance payment before shipment.

3. How long is your warranty period?

One-year guarantee & Life-time technology support.

4. How do you do after-sale service?
We provide life-time technology support online, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

5. How long is your warranty period?
One-year guarantee & Life-time technology support

Product Tags:


*From:	Your email address is incorrect!
*To:	Shenzhen Jiayu Mechatronic Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	DC Servo Motor Drive
Brand Name:	Jiayu
Model Number:	AL200
Certification:	ce, ROHS
Place of Origin:	China
MOQ:	2
Price:	negotiation
Payment Terms:	L/C, T/T
Supply Ability:	5000/year
Delivery Time:	7 working days
Packaging Details:	carton
Power supply input:	DC24~ 50V (48V)
Rated power Pn(W):	200w
Rated speed(rpm):	3000rpm
Rated torque(Nm):	1.27nm
Maximum continuous operating current (A):	10A
Encoder feedback:	2500-line incremental encoder
Communication:	RS232, RS485, CAN interface
Operating ambient temperature:	-20 to 55°C (no freezing)
Use of environmental humidity:	90% RH or less (no condensation)
Overload:	2X overload
