Pneumatic ROPP Screw Automatic Capping Machine For Wine Glass Bottle

Categories Automatic Capping Machine
Brand Name: YIMU
Model Number: CM200
Certification: CE
Place of Origin: Shanghai
MOQ: 1set
Price: Negotiable
Payment Terms: T/T, L/C, D/A, Western Union
Supply Ability: 20set/month
Delivery Time: 12-15 working days
Packaging Details: wooden case, L2000*W800*H1700mm, 300KG
Product name: Popular Automatic Wine Glass Jar Syrup Round Bottle ROPP Aluminum Screw Capping Machine
Function: ROPP capping machine
Bottle type: glass bottle
Cap: Aluminum ROPP cap
Material: SUS304
Capping speed: 25-45 bottles/min
After-sales service provided: Online Video technical support,Free spare parts
Driven type: Pneumatic, Electric
Application: Wine, pharmacy
Warranty: 1-2 years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Pneumatic ROPP Screw Automatic Capping Machine For Wine Glass Bottle

Popular Automatic Wine Glass Jar Syrup Round Bottle ROPP Aluminum Screw Capping Machine

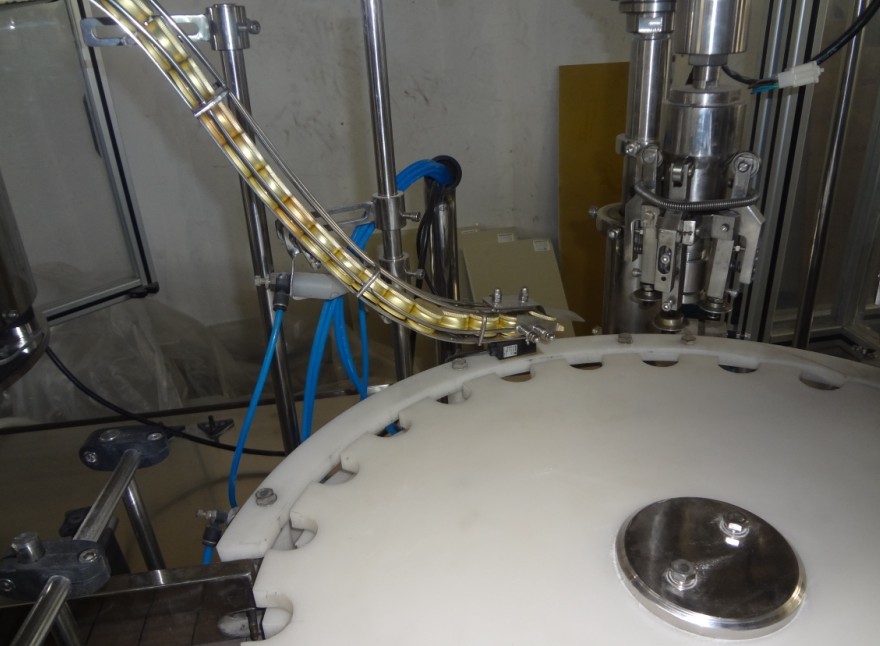

Cap chute features
• All contact parts in stainless steel.
• Designed and tested for each cap to avoid jamming.
• Includes cap demand sensor to start and stop the cap feeder.
• Quick change over, since parts are pin guided so no tweaking is required.

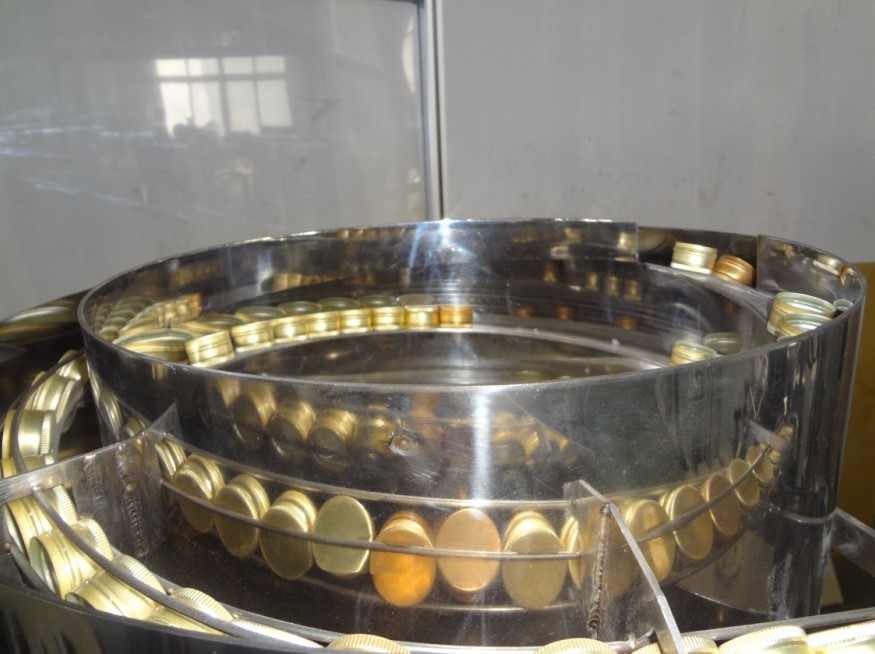

Vibratory cap feeder features
• Aluminum casting with polyurethane liner to minimizes cap marking-scratching
• 24 inch diameter feeding disc - ramp assembly.
• Bad caps rejected mechanically, minimum air usage.
• Cap by demand controlled by photoelectric sensor.
• Bowl tooled for one model cap.
• Adjustable vibration and speed control
• Heavy duty extra heavy base for better vibration transmission.
• Sorter mounted on machine, no need for independent height adjustment.

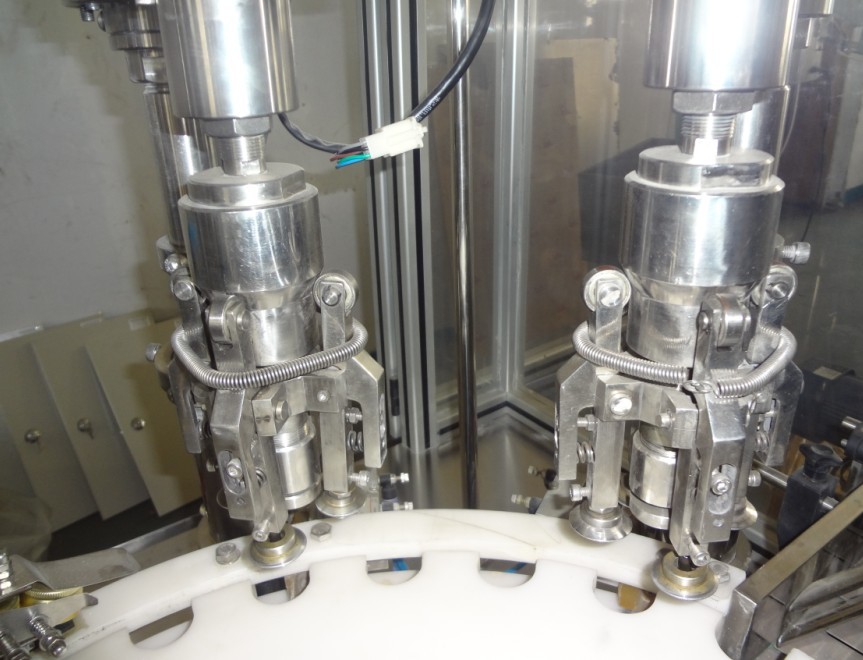

Capper features
• Machine designed to place and form metal caps on a wide range of containers – enclosures.
• Price includes one set of change of parts (star wheel, outer guide and cap delivery).
• Bottle will pick up cap and the container will be indexed into position.
• Maximum bottle diameter with 12 pocket star wheel: 4.25 in
• Maximum bottle diameter with 6 pocket star wheel: 8.00 in
• Automatic start and stop with presence or absence of containers.
• Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills).
Electrical box
• Ac motor with frequency drive speed control
• Stainless steel electric enclosure.
• Heavy duty 304 Stainless steel welded frame.
• Stainless steel enclosure with polycarbonate windows and safety switches.
• Gear driven transmission machine to avoid timing loss.
• Complete height adjustment with bottle setting guide for quick changeovers.
• Tool less changeovers for star wheels and most change parts.
Technical Parameter:
Cap feeding device
Vibration disk
Capping type
ROPP capping head screwing
Bottle height
60-300mm
Cap diameter
16-68mm
Bottle diameter
50-100mm
Capping speed
25-50 bottles/min
Capping voltage
AC 220V 50/60Hz,1 phase, (customized)
Air pressure
0.3-0.6MPa
Dimension
2000(L)*1000(W)*2000(H)mm
Packing size
2100(L)*1100(W)*1700(H)mm
Machine weight
About 500KG
