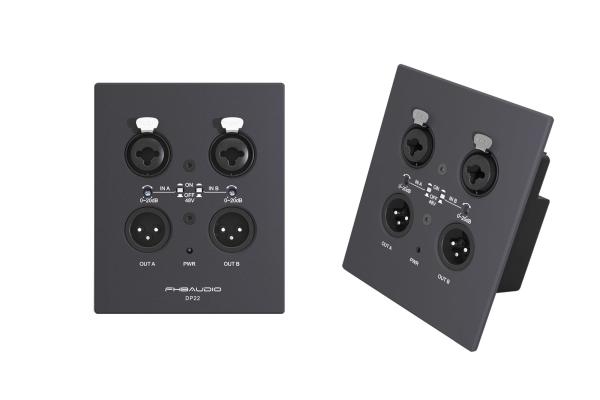

Phantom Power Switch Network Audio Transmitter CAT5 2CH Dante Audio

Provide phantom power switch and gain adjustment 2CH Dante audio network audio transmitter

Introduction:

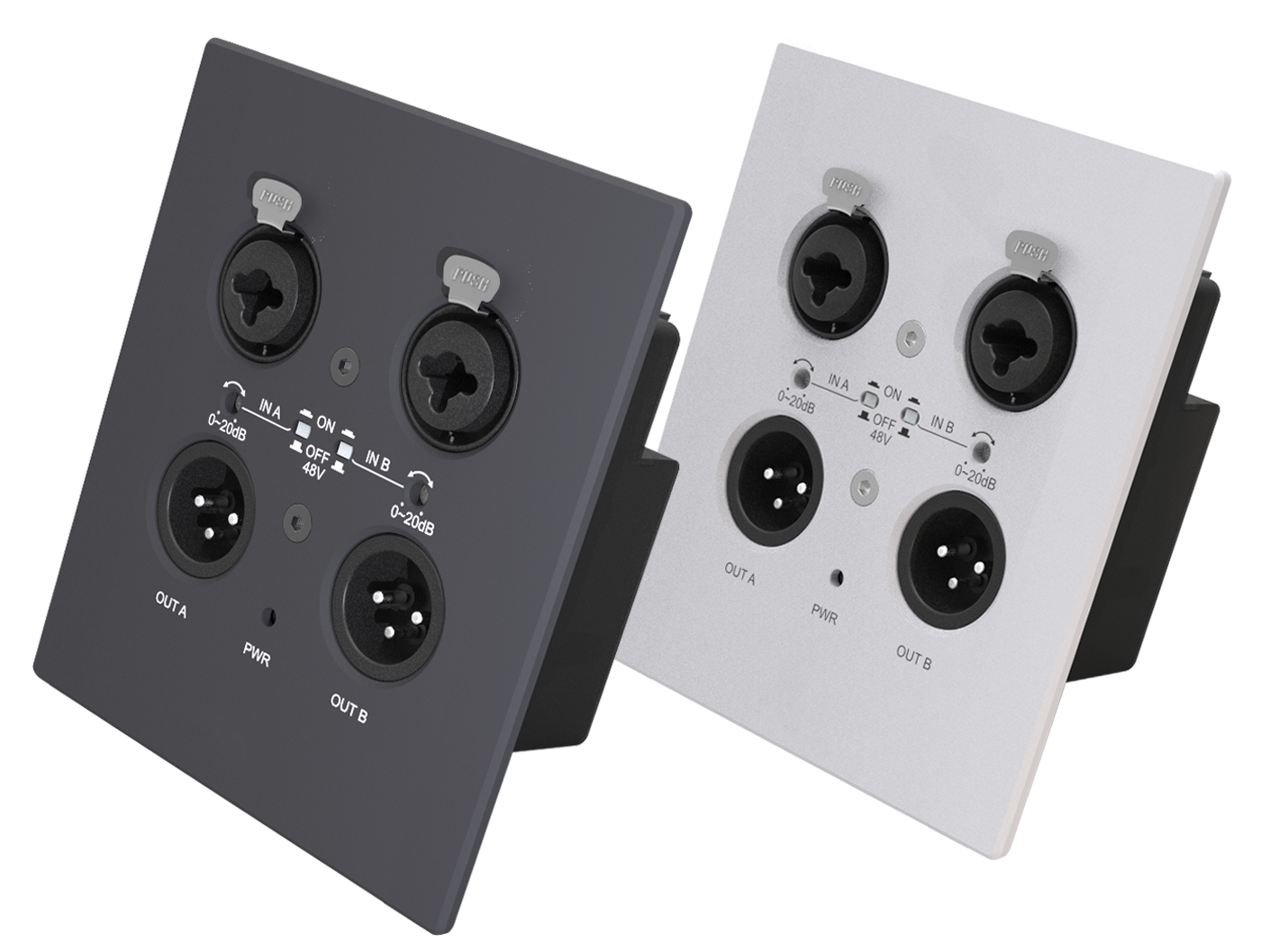

This product supports two sets of balanced I/O analog signals access to the Dante system through a local network. Use the XLR input interface and provides the function of the phantom power and the input signal gain adjustment.

The output interface is a standard three pin XLR socket, analog signal output balance. The four output version can be selected. RJ45 network interface, please use CAT5 or above to connect the PoE switch.

Function:

• For analog signal and Dante signal conversion.
• Support 2 channel analog input, 2 channel analog output.
• Support 2 channel Dante input, 2 channel Dante output.
• The input channel has an phantom power switch and a gain manual adjustment knob.
• PoE power supply, 802.3af, 802.3at standard PoE switch.
• Front panel independent power indicator

Specification:

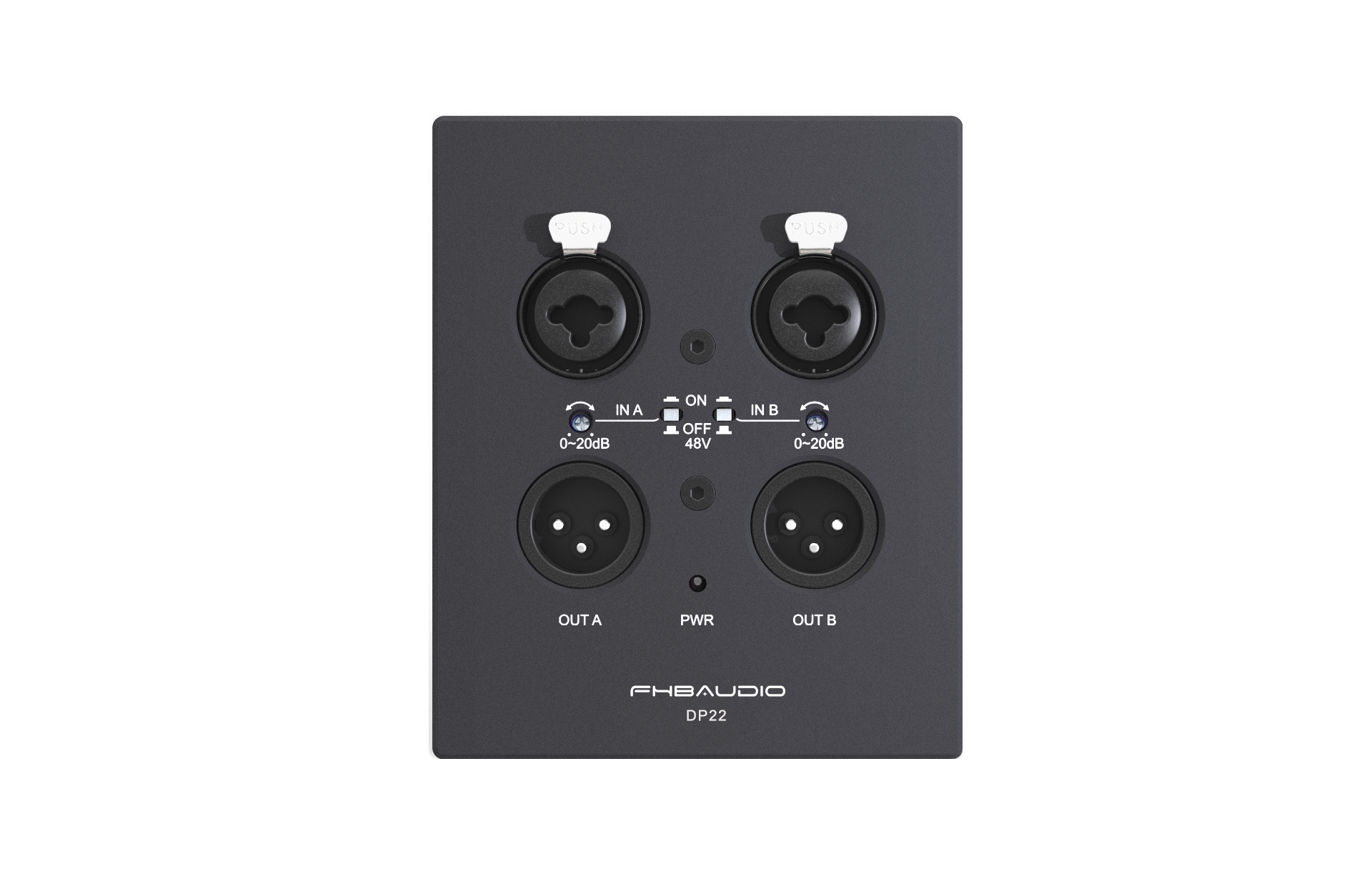

Product Model No. DP22 Analog input channel 2 Analog output channel 2 Dante input channel 2 Dante output channel 2 Dante interface 1 Input gain amplification Rotary gain knob (0 ~ 20dB) Balanced/non-balanced, input/output support √ MICLINE, input/output support √ 48V phantom power switch √ Sampling rate 48kHz Phantom power 48V Frequency Response (20~20KHz) 20Hz ～ 20K Hz,±0.5dB THD+N ≦0.005% @4dBu Digital-analog dynamic range (A weighting) 120dB Analog - digital dynamic range (A weighting) 114dB Input impedance (balanced) 20kΩ Output impedance (balanced) 100Ω EIN(A weighting) ≤-131 dBu Channel isolation @1kHz 100dB @1k Hz,4dBu Simulated maximum gain 20dB Common-mode rejection 80dB @80 Hz Maximum input level 18dBu Maximum output level 18dBu Ground Noise -90dBu System delay ≤3ms Working Power Supply PoE 48V Operating temperature '-10-50℃ Size 87*97*46(mm)

Application:

FAQ:

Q1: Are you manufacturer or trade company?
A: We are manufacturer,which located in Shenzhen, Guangdong, China.

Q2: Do you offer OEM&ODM service?
A: Yes, We can provide OEM or ODM Solution depends on client requirements

Q3: What's the quality standard of your products?
A: Our products has approved CE, ROHS certification.

Q4: Which place will use FHB equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Airports, Parliaments, Education institutes, Hotel, Private corporate conference hall etc,.

Q5: What’s the delivery time?

A:Sample order: During 5days,Bulk order:10-15days

• Quality Assurance

Check Products one by one, to make sure all products are working excellent quality..
