| Categories | Hybrid Stepper Motor |
|---|---|
| Brand Name: | HeTai |
| Model Number: | 57BYGH801-01 |
| Certification: | CE ROHS ISO |
| Place of Origin: | China |
| MOQ: | 50 |
| Price: | USD |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 PCS/MONTH |
| Delivery Time: | 28-31 DAYS |
| Packaging Details: | Carton with Inner Foam Box, Pallet |
| Product Name: | Hybrid Stepper Motor |
| Step Angle: | 1.8 ° |
| Lead Wire: | 6 |
| Holding Torque: | 16 Kg.cm |
| Rated Voltage: | 3.3V |
| Rated Current: | 3.0A |
| Inductance: | 2.5mH |
| Resistance: | 1.1Ω |
| Motor Height: | 84 mm |
| Motor Weight: | 1.13 Kg |
| Company Info. |
| Changzhou Hetai Motor And Electric Appliance Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

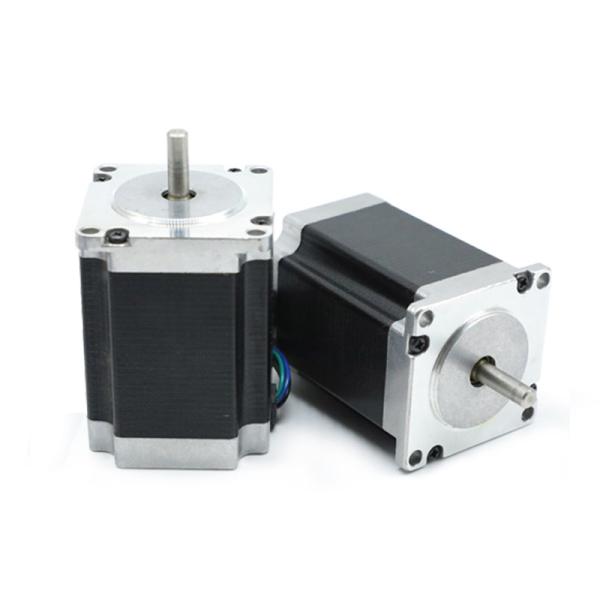

Nema23 hybrid stepper motor 6 lead wire 3.3V 3.0A 16kg.cm factory direct sale high quality stepper motor
Application areas of stepper motors
①Not only the electrode must be driven to run, but the driving
signal must be a pulse signal. When there is no pulse, the stepper
motor will stop. If a proper pulse signal is added, the speed of
rotation will be proportional to the frequency of the pulse at a
certain angle (called the step angle).
②The stepping angle of the Tamron version of the stepping motor is 7.5 degrees, and one circle is 360 degrees, which requires 48 pulses to complete.
③The stepper motor has the superior characteristics of instant start and rapid stop.
④Change the sequence of pulses, you can easily change the direction of rotation.
Therefore, at present, printers, plotters, robots and other equipment are powered by stepper motors.
Electrical Specification Of Hybrid Stepper Motor
Product Name | Hybrid Stepper Motor |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500V DC |
Step Angle | 1.8° |
Lead wire | 6 |
Voltage (V) | 3.3 |
Current (A/Phase) | 3.0 |
Holding Torque (Kg.cm) | 16 Kg.cm |
Mechanical Dimension Of Hybrid Stepper Motor
Market Range of Hetai
Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
Hetai's Customers
A variety of types of stepper motors are available for you to choose, support customization.

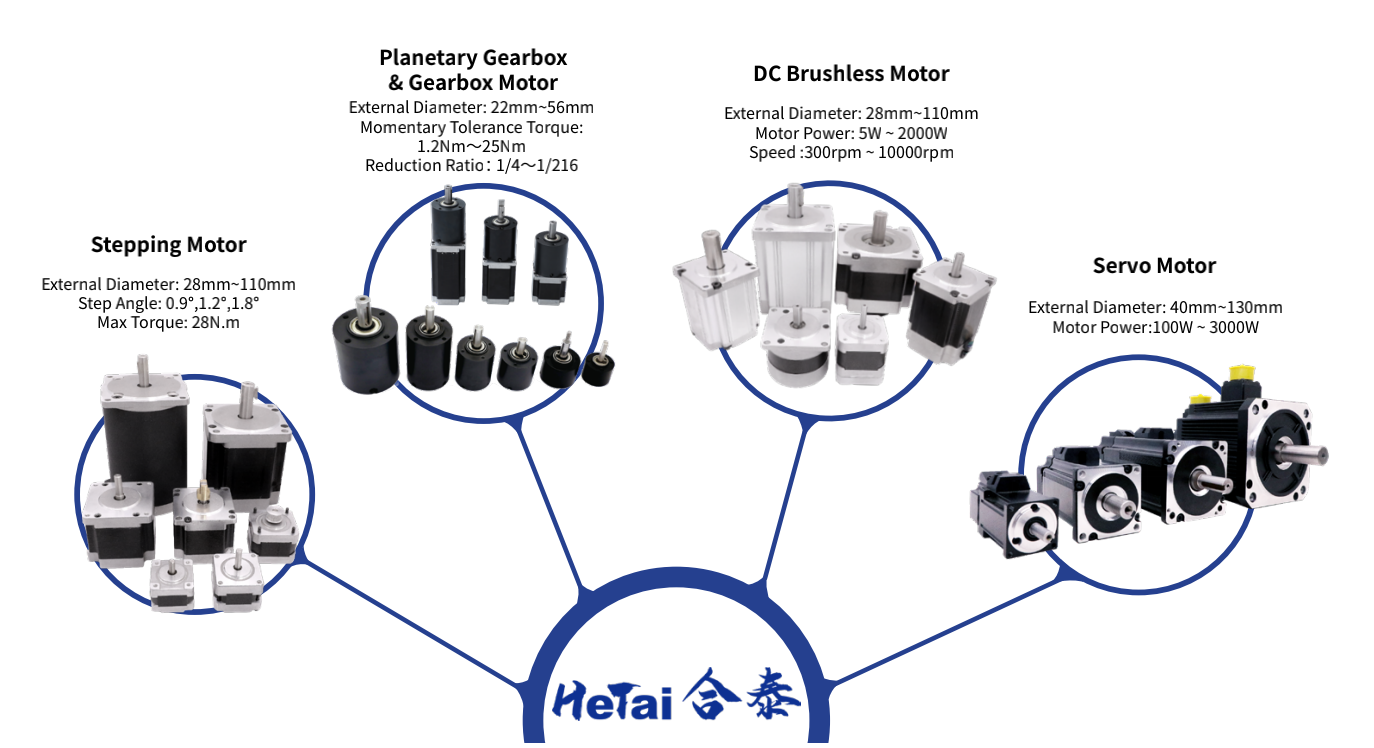

Product Range Of Hetai
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

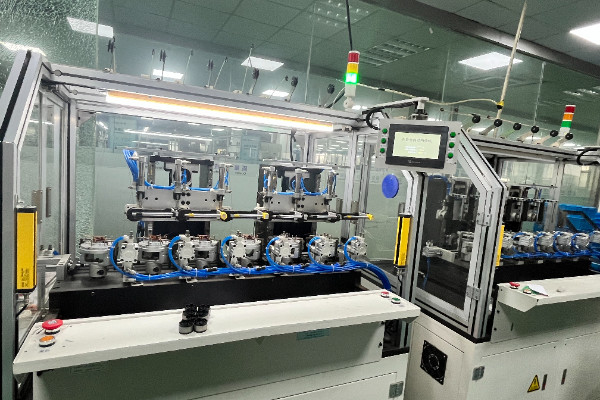

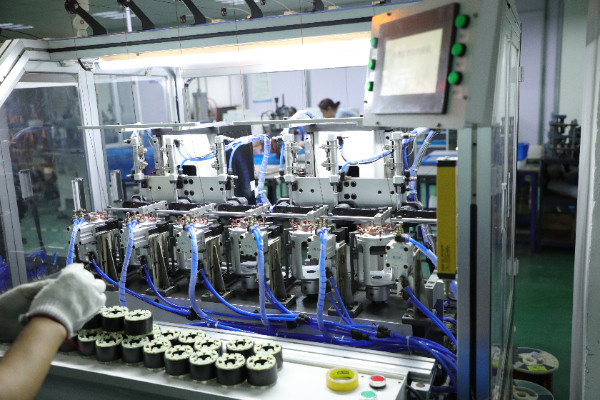

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Hetai reduction gearbox

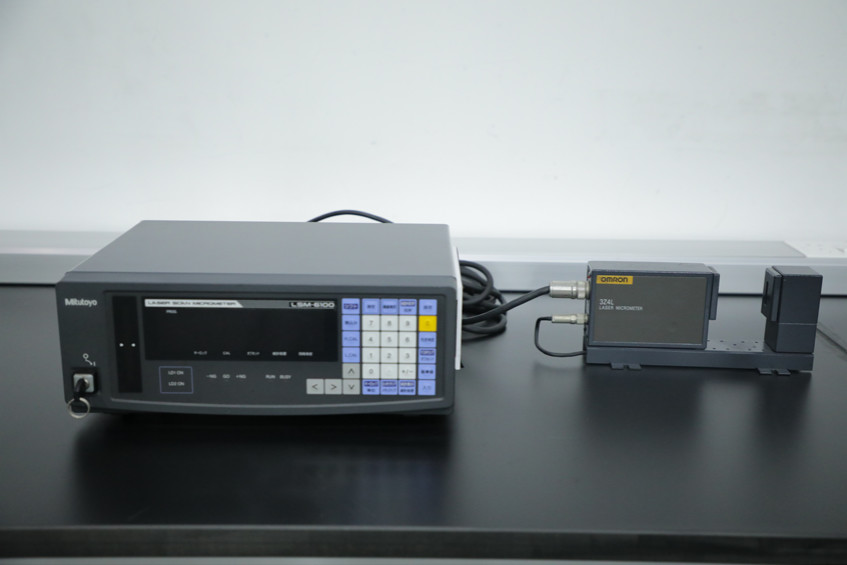

Laser rangefinder
CNC Center

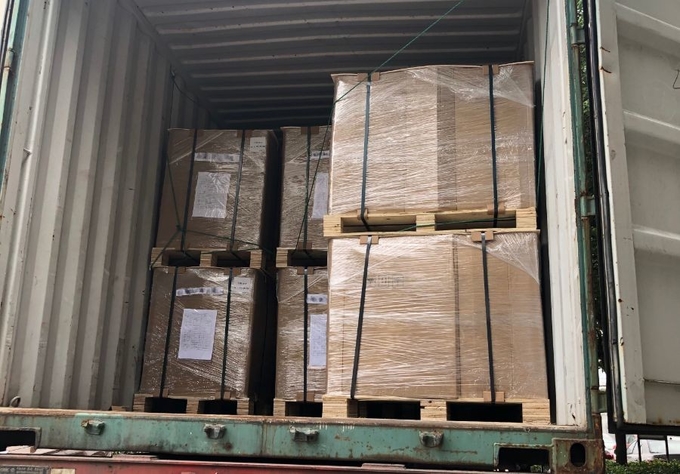

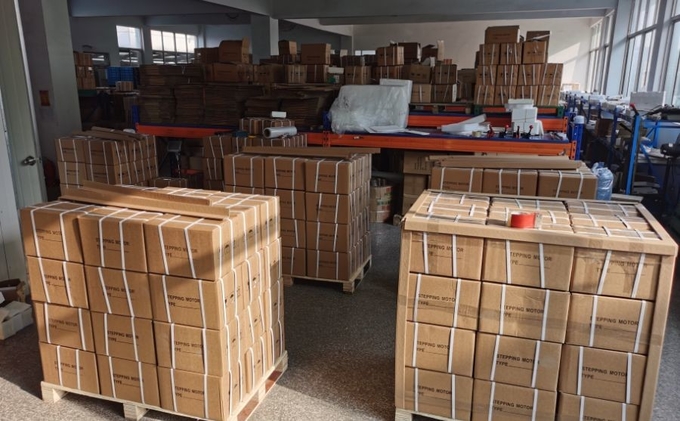

Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition

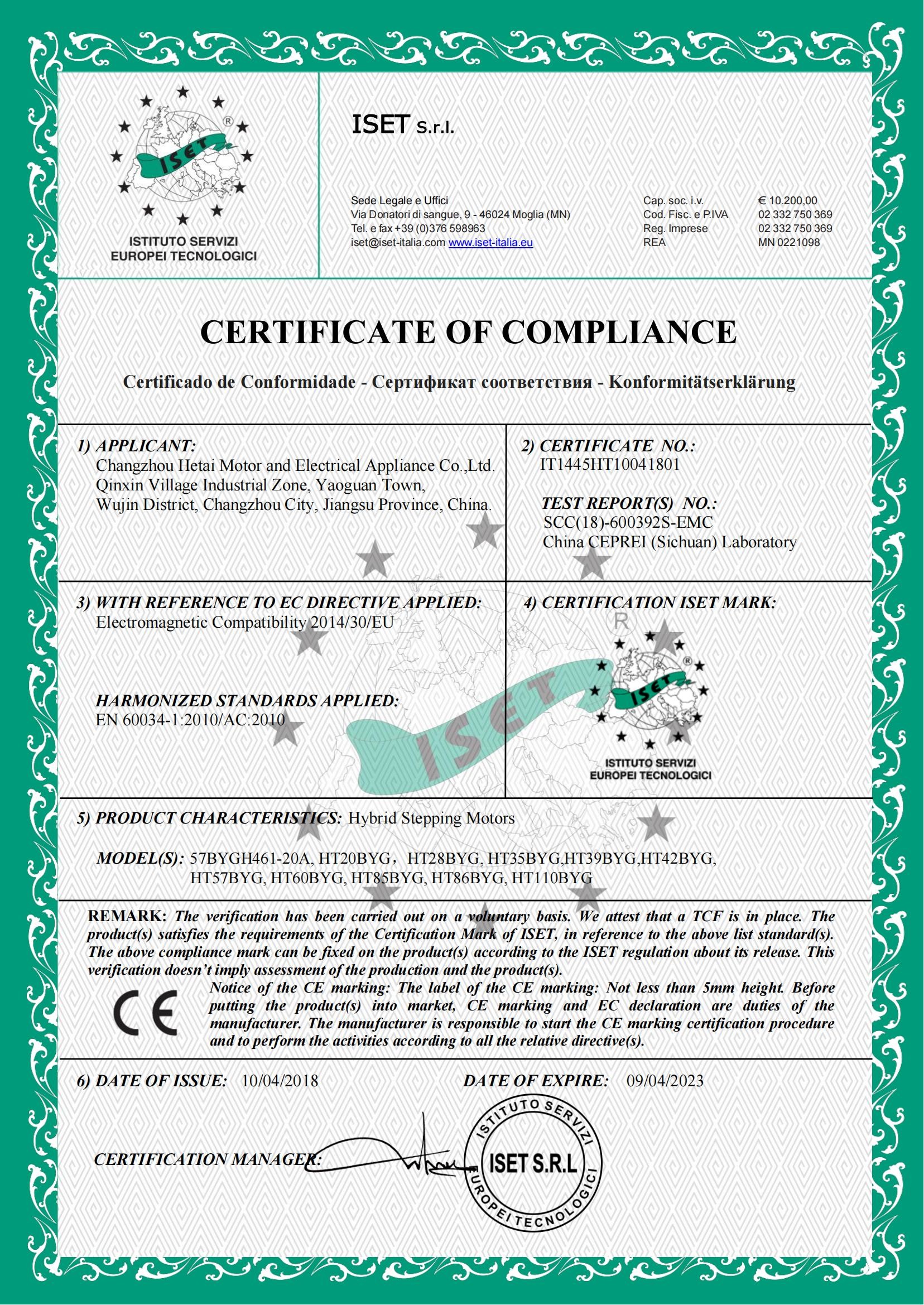

CE certificate
|
