RFID UHF Reader R2000 Module Modbus TCP Communication Integrated Reader IP67

Quick detail of RFID UHF Reader:

• Support Standard:ISO18000-6C,EPC C1G2；
• Communication mode:Ethernet,RS232/RS485；
• Fixed type:4*M5 screw；
• Waterproof/ dustproof:IP67；
• Communication Interface:M12A(8pin M) + M12A(5pin M)+M12D(4pin M)；

Specification of RFID UHF Reader:

Feature of RFID UHF Reader:

RFID readers allow you to optimally manage machines, tools and materials, reduce production costs, shorten delivery times, reduce the number of errors and increase production efficiency. You can achieve up-to-date data, available wherever and whenever we need it, is the basis for effective decisions.

Industrial RFID readers collect data automatically , allowing you to track material flows,monitor the efficiency of machinery and equipment,monitor the condition of fixed assets.

As each RFID applications has its unique requirements. Our RFID readers widely used for identify, track tagged,supply chain,inventory management,real time monitor,categorize and track assets. When intergrate into the right RFID systems,the RFID reader can identify objects quicker, more accurately, at a reduced overall cost, and at various points of the object’s lifecycle.

RFID UHF Reader Application:

Optimize processes in Production and Logistics

Industrial RFID readers are especially common in the field of intralogistics and so-called “gate applications”. The HF technology is an important driver of digital production processes and the HF RFID readers have been used successfully in production processes for many years. Andea Electronics has UHF and HF frequencies industrial RFID readers available for you.

Among other things, you can also use the read/write heads for fast and reliable tracking of material in intralogistics, tracking of individual products, tracking of transport carriers through the production process.

Intelligent Application of Home Appliance Manufacturing Process

Through RFID data acquisition technology (By adding RFID tags on the product/tooling board and deploying RFID readers on the workstation),the unmanned,automatic and real-time identification of single-item products on the production line is realized.

Using real-time collected product information,complete error prevention of mixed flow production materials,real-time push of process guidance,automatic diversion of defective products,automatic generation of quality reports,product traceability management,mixed flow line alarms,and equipment automation docking.

Engine Assembly Line

The reader can interface with various PLCs such as Siemens,Schneider and Mitsubishi through the industrial bus controller. By reading the RFID tag mounted on the tray,passing the information to the PLC, Through the information of installation to guide the assembly robot or the assembler to auto select the appropriate part,the engine assembly efficiency can be greatly improved.

Dimension Drawing(mm):

Installation Instruction:

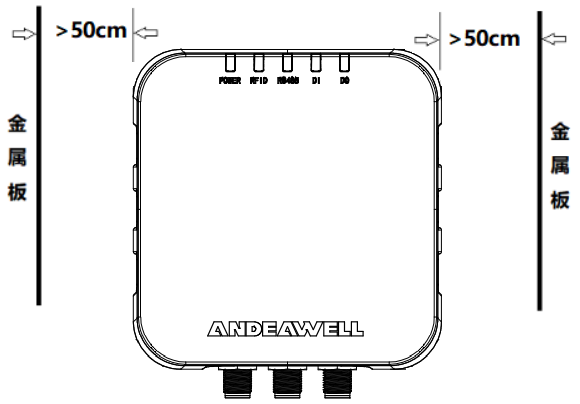

This reader use four M4 screws to fixing. According to the installation environment of the site,we can support bracket to install.If there has Metal plate beside the product,please make sure that the distance between reader and Metal plate has more than 50cm,or it will influence the performance of reading and writing.

When there are more than two readers to be installed, the distance between the readers needs to be greater than 10.5m.
