| Categories | Beans Color Sorter |
|---|---|
| Brand Name: | WENYAO |
| Model Number: | WYCS3-192 |
| Certification: | CE,ISO9001,SGS,TUV |
| Place of Origin: | Anhui,China |
| MOQ: | 1 PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200PCS Per Month |
| Delivery Time: | 3-5 Days |
| Packaging Details: | Plywood case package with Pe bag inside wrapped Packing size(L*W*H):1.77x1.54x2.10M |
| Function: | All kinds of Beans Color Sorting |
| Accuracy(%): | ≥99.99 |
| Condition: | 2022 New hot selling |
| Color: | Customized Color |
| Warranty: | 2 Years |
| After-sales service provided: | Engineers overseas are available |
| Capacity: | 1-4 T/H |
| Filter: | Japan CKD & SMC |
| CCD Camera: | Toshiba |
| Company Info. |
| Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

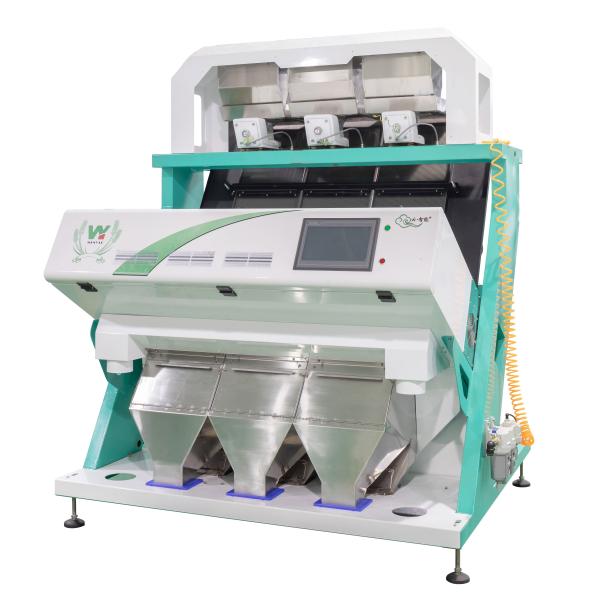

Mexico Macadamia Nut Color Sorter Full Color CCD Camera Color Sorting Machine for Macadamia Nuts Kernel Separator
Mexico Macadamia Nut Color Sorter Full Color CCD Camera Color Sorting Machine for Macadamia Nuts
PARTS DETAILS:
►Automatic computing and intelligent identification with high speed
camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning
time and period according to your need.
►Self design high frequency ejectors,It means high speed and
accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the
LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
Kernel Separator
Color Sorter Machine Work Principle:
Technical Parameters:
| Model | WYCS1-64 | WYCS2-128 | WYCS3-192 |
| Chute/Channel | 1/64 | 2/128 | 3/192 |
| Throughput(t/h) | 1 Ton /H | 0.6-2.5 Ton /H | 1-4 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 0.75kw | 1.1kw | 1.6kw |
| Power Voltage | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 280kg | 450kg | 600kg |
| Diamension(L*W*H) | 780*1527*1543mm | 1250*1535*1832mm | 1620*1535*1832mm |
Examples of color sorting:

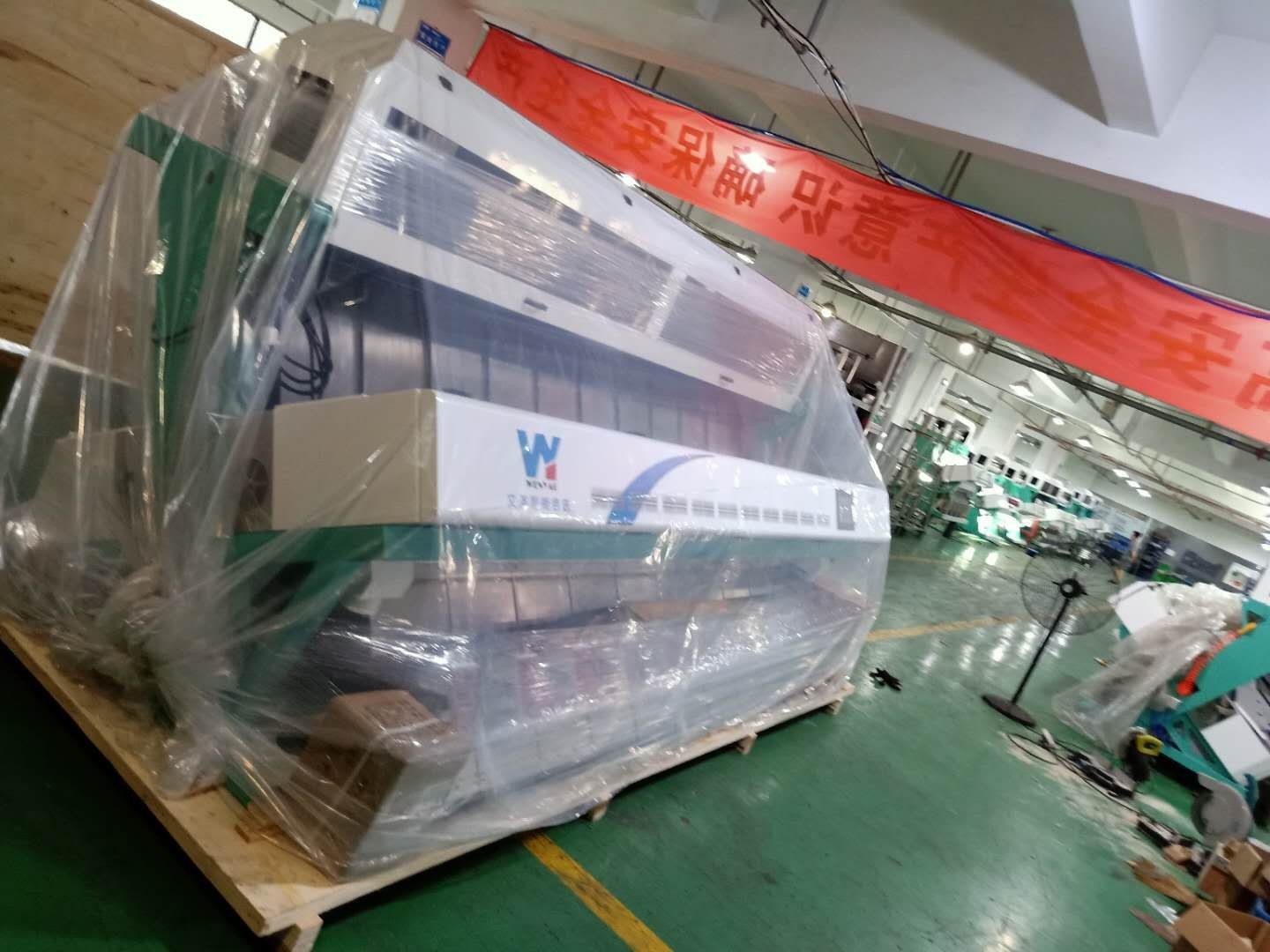

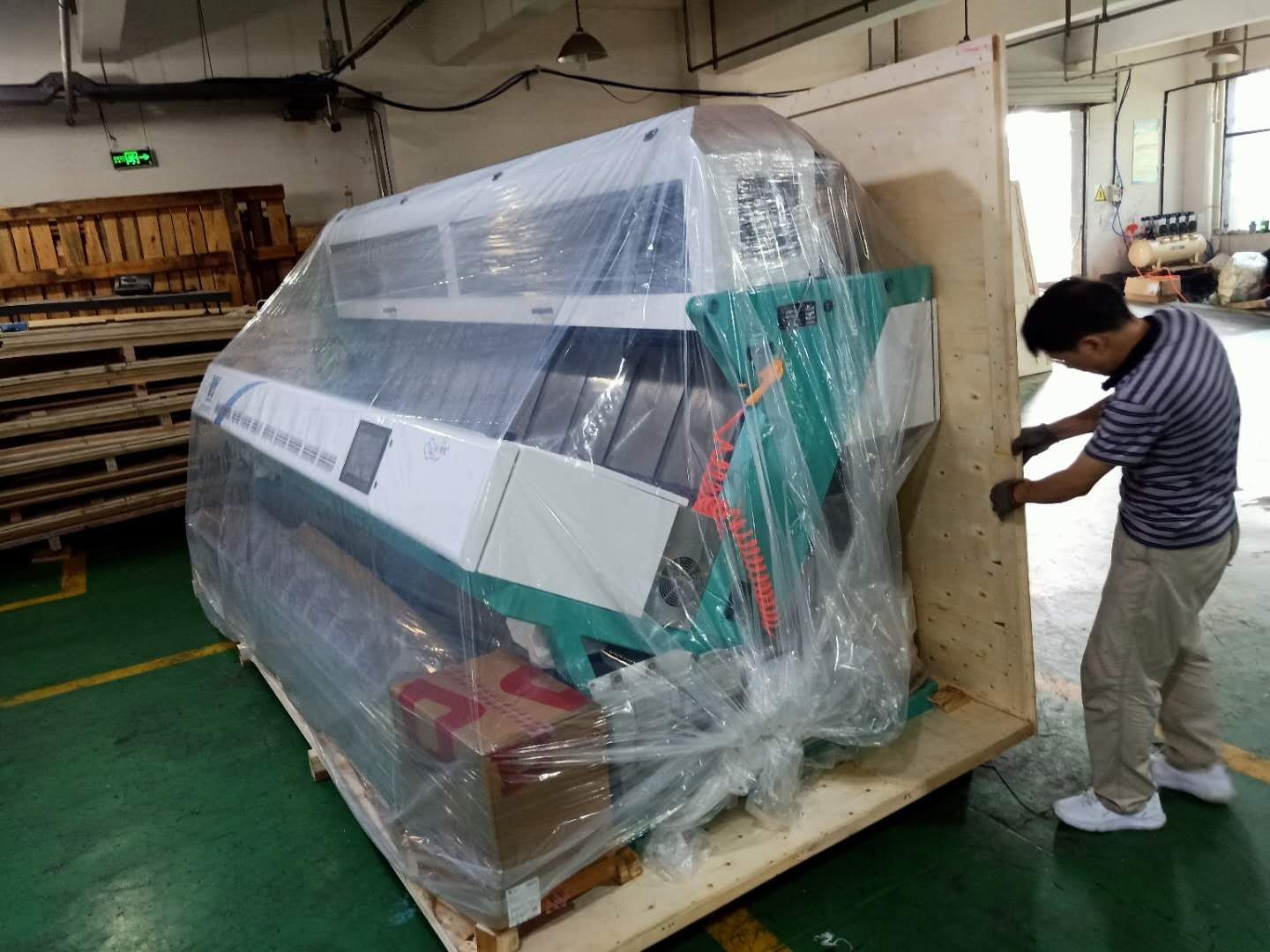

Packing & Delivery:
Contact :
|
