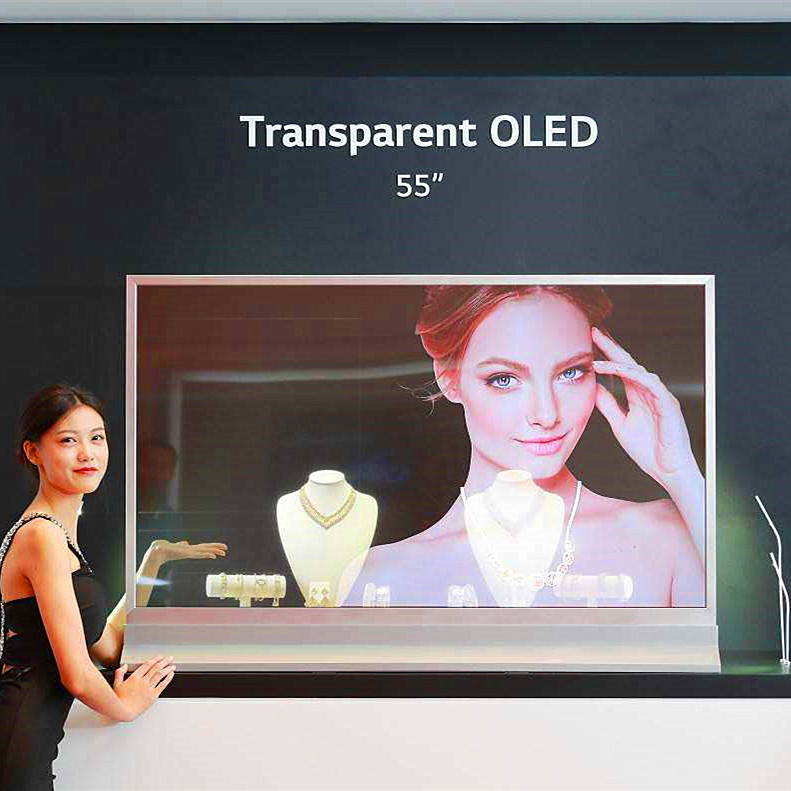

Lightweight OLED Display Panel , Ultra Thin Touch Screen Interactive Display

Lightweight OLED Display Panel , Ultra Thin Touch Screen Interactive Display

OLED Display Panel Superior Aesthetics

Improved image quality
Thin and Light
180 degree viewing angle
Infinite contrast ratio and an infinite dynamic range
Real-time video speeds – excellent for 3D
Self-emissive display
On- cell touch without sacrificing fill factor

OLED Display Panel Application

Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course

OLED Display Panel Configuration:

Advantage		Adopting the latest innovative display, the OLED(Organic Light-Emitting Diode Display ) which is recognized as the most advanced energy-saving and environmentally friendly display technology nowadays, make the completed products with advantage of energy saving and slim feature, its frame can be only 10mm with double-sided display together, this high-end display has a wide range of uses in high-end commercial application like Jewelry Shops/Watch shop/Bar/Hotel/Club, which can greatly enhance the high-end image of luxury commodities like jewel, watch
Configuration Type		Standalone U-disk auto play (based on Android OS)	Android OS with Cable Network & WIFI network version( Content Management Software is included)	Windows OS WIFI Cable Network
Unique Function		Plug-in-and-play function. Plug in the U-disk,or HDMI input signal, the machine will play automaticly	We offer free-of-charge CMS ( Content Management Software), with which you will be able to access to all of machines with one personal computer via Internet (Cable Network/Wirelss/ 3G network/ 4G network/ 5G network) doing control like upload/delete advertising content, changing schedule, split-screen, monitoring its playing content… even you are in another country! Meanwhile, this software is capable of split-screen, combination of video, image, weather, date, time, news broadcast, webpage, daily/ monthly/yearly schedule....	It's powerful as computers like we daily use, can be with touch function or non touch.It can achieve all the functions of regular computers
After-Sale Service Term	Warranty Period	One year of repair coverage & Lifetime complimentary support and 2~3 year warranty is optional
Certificate& Green Management	CE	CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS
Certificate& Green Management	Packaging Recyclability	All Packing material are recyclable
Main Specification	Display Size	55"
	Packing Material	Veneer Wooden Box( Aluminium Box is optional)
	Power Comsuption	20W~80W
	Power Supply	Wide range power input : 110-240V/50HZ/60HZ workable in every country all around the world
	Enclosure Material	High-strength fully High-temperred Glass,Coat Painting Strong Steel
	Operating temperature	-20 ~85ºC
	Speaker Power	2×6W (8Ω)	2×8W (8Ω)	2×8W (8Ω)
	Video Format	MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), WMV,MP3,MPG,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,ASF,FLV,... etc. support all of the format of video
	Audio Format	MP3..etc. all of the format of audio
	Image Format	JPG,JPEG,BMP,PNG,GIF...etc, support all of the format of image
	Operating System Language	EnglishРусский/France/Español/Italian/Português/Japanese/Korean/Hebrew ... any all other language
Touch Screen Specification (Touch Screen is optional)	Touch Point	N/A	SoftTouch sensitive Real 10 points Mult-touch
	Touch Type	N/A	Latest Version Infrared Ray SoftTouch
	Touch Sensibility:	N/A	<3~5mm
	Response Time	N/A	<2ms
	Scanning Rate	N/A	50 scans/s
	Available object size for touch	N/A	<2mm
	Transparency of Tempered protecting glass	N/A	>95%
	Durability of Touch	N/A	No limited
	Surface hardness of Touch screen	N/A	Mohs 7th level ,and bearable with the hit of 6kg weight of metal ball
Display Specification	Display Brand	LG / SAMSUNG Original A+Grade OLED(Organic Light-Emitting Diode Display), without any light spot or black spot and Full Viewing Angle
	Max Resolution	FULL HD 1920×1080/ Ultra-HD 3840*2160 is optional
	Display color	16.7 Millinium
	Brightness (nits)	600cd/m2
	Contrast	1500:1
	Visual angle	Full View 178/178 degreee
	Response time	3~5ms
	Life(hrs)	>70,000(hrs)

	Accessories	Qty of Accessories
	1.User Manual	1
	2.Warranty Card	1
	3.Power Cord	1
	4.Remote Controller	1		N/A
	5.Security Door Key	2
	6.WIFI antenna	N/A	2

Product Tags:

transparent oled touch screen

clear oled display

Lightweight OLED Display Panel , Ultra Thin Touch Screen Interactive Display

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Maystar Electronics and Electrical Industry Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Transparent OLED Display
Brand Name:	Maystar/KarmerMarker/Megapack
Model Number:	OLED Display Panel
Certification:	CE /RoHS/CB/GS/SAA/SASO/UL/FCC/SGS
Place of Origin:	China
MOQ:	Negotiation
Price:	Negotiable
Payment Terms:	TT/LC/Paypal/Western Union
Supply Ability:	3000 units
Delivery Time:	7~15 days
Packaging Details:	Packed with Strong EPE and Carton Box, Wooden Box
Product Name:	OLED Display Panel
Configuration Type:	Android OS with Cable Network & WIFI network version / Windows OS WIFI Cable Network
Feature:	Lightweight
Input Power:	110-240V/50HZ/60HZ
Viewing Angle:	178 / 178
OSD language:	Mult language Support
Panel:	Ultra Thin
Power Consumption:	20W~80W
