Infineon Chip Auto Tire Pressure Sensor Car Tpms External With LCD Color Display

Categories	Tyre Pressure Monitoring System
Brand Name:	Yoelbaer or OEM
Model Number:	YB069
Certification:	CE ROHS
Place of Origin:	China
MOQ:	MOQ : 30PCS
Price:	USD 28/Set - USD 31/Set
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1500pcs/week
Delivery Time:	3-5 working days for mass order , samples have in stocks,
Packaging Details:	Neutal color box, box size : 18.6X13.2X5 cm 0.3kg/set/ external sensors, 0.4kg/set/internal sensors
Pressure range:	0-99psi/ 0-116psi
Product name:	Tire Pressure Monitoring System (TPMS)
Display:	LCD Display
Working temperature:	-30°C-85°C
Chip:	Infineon
Type:	cheap price tire pressure monitoring system car tpms external tpms

Contact Now

Add to Cart

Company Info.

Shenzhen Xianghan Technology Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

cheap price tire pressure monitoring system car tpms external tpms

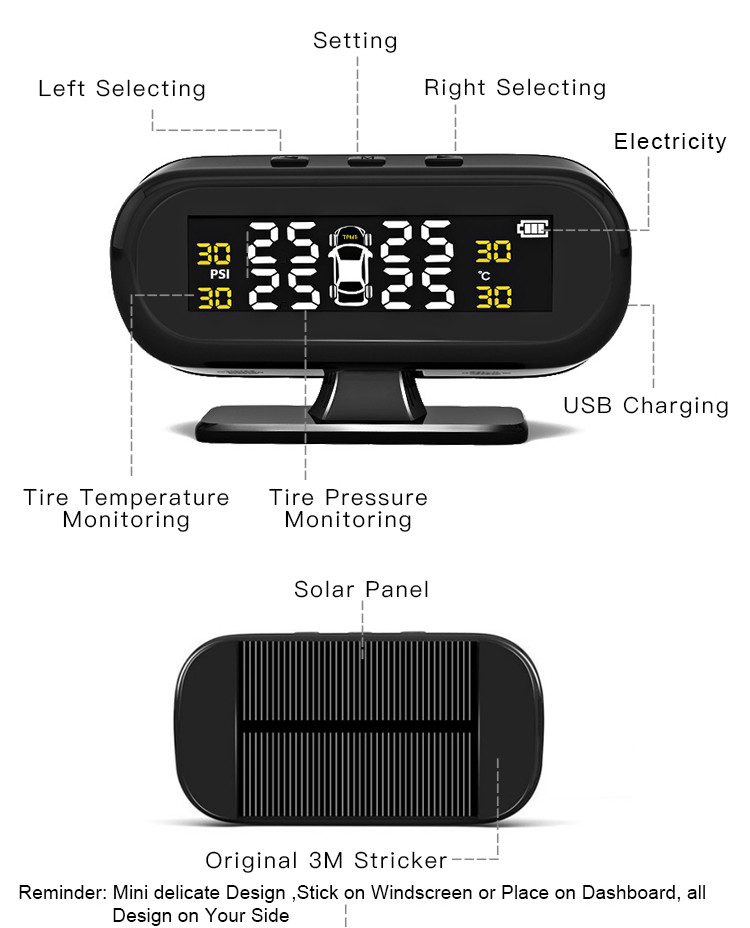

1.Solar power charging, LCD color display, adjustable brightness

2.Real-time monitoring the pressure & temperature

3.Wireless transmission technology,100% DIY installation

4.With built-in rechargeable explosion proof lithium battery

5.Acurately detect air pressure(High/low pressure, quick air leakage and temperature), the 4 sensors will alarm under abnormal condition

6.Support' BAR' 'PSI'

cheap price tire pressure monitoring system car tpms external tpms
Monitor Specification
1. Operating Voltage	3.7-5v
2. Storage Temperature	-30℃-90℃
3. Working Temperature	-30℃-85℃
4. RF Emission Frequency	433.92MHZ+/-50MHZ
5. Monitor Mode	LCD Color Display
6. Working Pressure	0-116 PSI(Freescales) 0-72PSI(Infineon)
7. Bright Operating Current	≤6mA
8. Black Operating Current	≤4mA
9. Size	958375MM
10. Chip	Infineon chip (Import from Germany)
11. Use time/cycle	10-15days after get full charged
12. Factory Default Pressure	26-46 PSI
13. Solar Panel Battery Capacity	400 ma
10. NW	0.3KG
11. GW	0.36KG
External Sensor Specification
1. Battery Life	24months
2.Operating Voltage	3v
3. Storage Temperature	-30℃-90℃
4. Working Temperature	-30℃-85℃
5.Temperature Resolution	+/-2℃(25℃)
6. Pressure Range	0-7.0Bar
7. Waterproof Grade	IP67
8. Transmitted Power	≤10dBm
9. Transmitted Frequency	433.92MHZ
10. Size	21*17mm
11. Weight	9g
12. Lithium Battery	CR1632
Certification	CE ROHS
Aging test	full 72hours
QC Test	100% full inspection before shipping out
HS Code	9026209090
