| Categories | Inductive Proximity Switch |
|---|---|
| Model Number: | LJ8A3-1-Z/BY |
| MOQ: | 100 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000only 8day |
| Place of Origin: | China |
| Brand Name: | Zhongde |
| Certification: | CE |
| Name: | M8 Inductive Proximity Sensor |
| Feature: | Oil Prevention |
| Size: | M8 |
| Voltage: | DC |
| Output Method: | PNP |
| Induction Method: | Normally open |

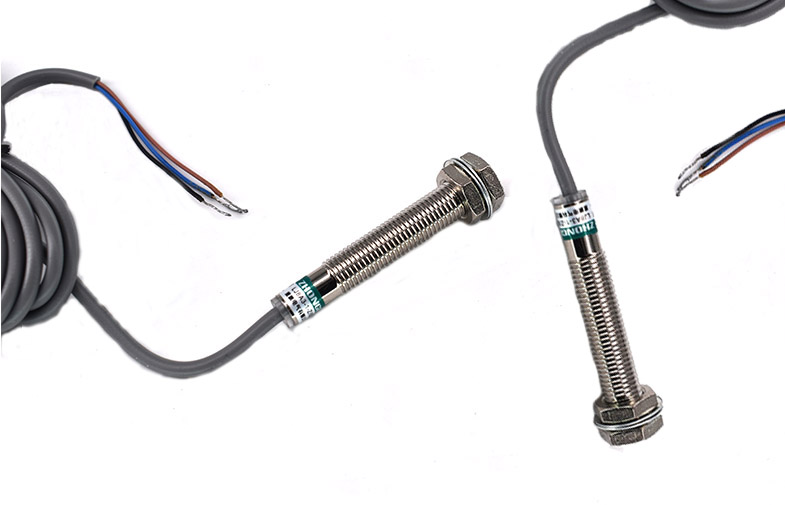

Magnetic Metal Inductive Proximity Switch , M8 Inductive Proximity Sensor
About us
Zhongde is a scientific and technological multi-element enterprise integrating scientific research, production, industry and trade. Its main production and operation: proximity switch, photoelectric switch, photoelectric power supply, sensor, solid state relay, amorphous alloy transformer, large special transformer, small relay, double Power automatic switch, dry variable temperature controller, dry variable fan, electric welder, arc welder and other products, the series of products have obtained CE product certification.
Three-wire PNP normally open DC
Parameter
| Lag distance | Less than 10% of the detection distance |
| Detecting objects | Magnetic metal (detection distance is reduced when non-magnetic metal) |
| voltage | DC : DC 12~24 (6~36V) pulse (p-p) below 10% |
| AC : AC 110~220V (36~250V) 50/60Hz | |
| Current consumption | N.P : ≤13mA |
| D : ≤0.8mA | |
| A : ≤1.7mA | |
| Control output | N.P : ≤300mA |
| D : ≤200mA | |
| A : ≤400mA | |
| Loop protection | N.P.D : reverse connection protection, surge absorption, load short circuit protection |
| A : surge absorption | |
| Ambient temperature | -30~+65°C (no icing, no condensation) |
| Ambient humidity | -35~95%RH |
| Insulation resistance | 50MΩ or more (DC500 megohmmeter) (between charging part and housing) |
| Withstand voltage | AC 1000V 50/60HZ 1min (between charging part and Housing) |
| Temperature effect | -30~+65°C: detection distance error ±15% at +23°C |
| -25~+60°C: detection distance error ±10% at +23°C | |
| Voltage effect | 6-36V (90-250V) : ±15% of detection distance error |
| 10-30V (220V) : ±10% of detection distance error | |
| Protection level | IP67 (IEC) |
| Material | Housing: ABS |
| Detection surface: ABS |
Note:Please read the "Precautions" of the product manual before use.
|
