Power Over Ethernet Poe Rj45 Connector With Transformer Single Port 1X2 Tab Up

Single port 1X2 Tab-Up Power Over Ethernet (PoE+) RJ45 Connector with Transformer TM312QB3ABA213007

RJ45 Connector with Transformer (TM312QB3ABA213007) Description:

100/1000Base-Tx RJ45 single port 1X2 with LEDS with Side Entry (Right Angle)
Single port 1X2 Tab-Up RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 230℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃

RJ45 Without Transformer (TM312QB3ABA213007) Attributes:

RJ45 Female Connector (TM312QB3ABA213007) Applications:

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.

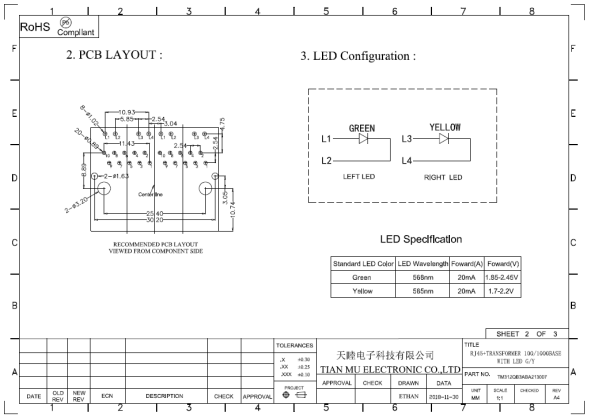

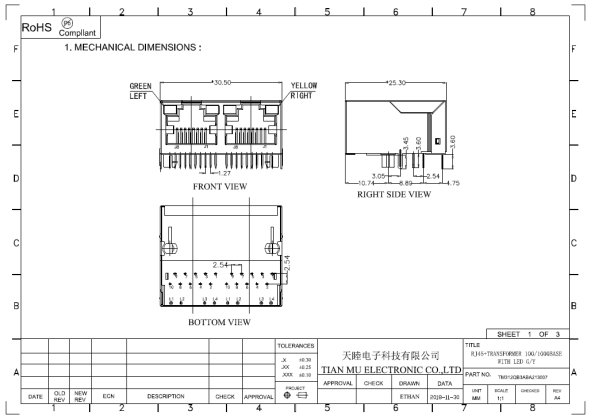

RJ45 Female Connector (TM312QB3ABA213007) Mechnical Drawing:
