| Categories | Rugged Tablet With Barcode Scanner |
|---|---|
| Brand Name: | BATL |
| Model Number: | BT681 |
| Certification: | CE/ROHS/IP67 |
| Place of Origin: | SHENZHEN,CHINA |
| MOQ: | 1 |
| Price: | negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pieces/month |
| Delivery Time: | 5-25 working days |
| Packaging Details: | Gift box 357*186*60mm,1.4kg/piece, cartoon box 10 pieces/cartoon,635*375*220mm |
| Type: | Rugged Tablet With Barcode Scanner |
| battery: | 6000 mAh |
| memory: | 2GB RAM+32GB ROM |
| display size: | 8.0 inch windows 10 |
| camera: | front 2.0M+rear 5.0M |
| Navigation: | GPS+GLONASS |
| data transfer: | 3G/LTE |
| Optional: | NFC reader,barcode scanner |
| Dimension: | 225*143*19mm |
| optional accessories: | vehicle mount,docking station,stylus |

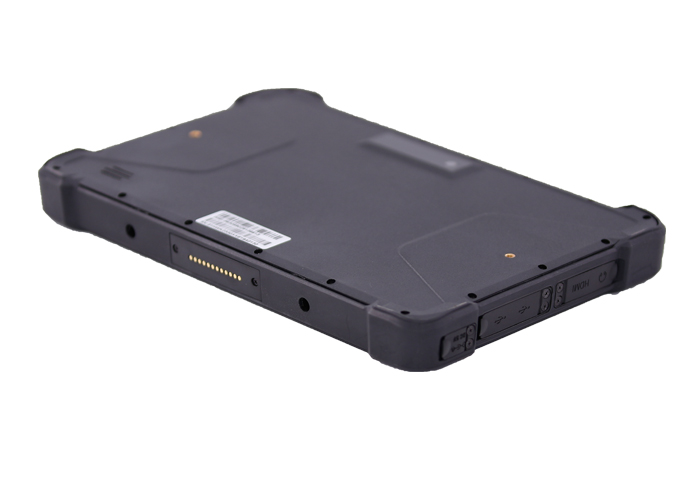

Rugged Tablet With Barcode Scanner Rugged Tablet 8.0 Inch IP67 BT681
Rugged tablet IP67 and 8.0 inch,Corning Gorilla glass touch panel and double injection mould housing Quad core Intel CPU and windows 10 OS,2.0M front camera and 5.0M rear one,2.4G/5.8G Dual band WIFI,BT 4.0 and 2G/3G/LTE etc wireless technology,built in 8500mah big battery to make it continuously working 8-10 hours, And there are HDMI,D.C,Micro USB,Type A etc ports,hand strap to protect sliding from hand,Docking station for better charging and with Type A USB,Ethernet port.vehicle mount with RS232 port,the scenario warehouse management and some install their own Application to control special projects
| Product Outlook | ||||||
| Type | Details | Standard Configuration | ||||
| Product Form | Type | Rugged Tablet | ||||
| Dimension | 227.5*150*21mm | |||||
| Weight | Device unit: 0.558kg ,Unit with giftbox and standard accessories:1330g,docking:290g | |||||
| Device Color | black( bottom shell in black, front shell in black) | |||||
| LCD | Screen Size | 8“ 16:10 | ||||
| Resolution | 800*1280 IPS | |||||
| Brightness | 250nits | |||||
| TP | Touch Panel | Multipoints Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF,support handwriting | ||||
| Camera | Front | Front: 2.0MP with indicator light | ||||
| Rear | Rear: 5.0MP | |||||
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speakerx 1 | ||||
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ | ||||
| Battery | Type | Build in Polymer li-ion battery | ||||
| Capacity | 3.7V/6000mAh | |||||
| Endurance | 10Hrs(default 50% volumn,default200 lumens brightness,play 1080P HD video) | |||||
| System Hardware Configuration | ||||||
| Type | Details | Description | ||||
| CPU | Type | Intel Cherrytrail Z8350 | ||||
| Speed | 1.33Ghz-1.92GHz | |||||
| GPU | Type | Intel HD Graphic(Gen7) | ||||
| RAM | DDR3L | 2GB | ||||
| ROM | Emmc | 32GB | ||||
| G_sensor | Built-in | Gravity acceleration sensor | ||||
| Network Connections | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI, | ||||
| Bluetooth | Built-in | BT4.2 (BLE) class1.5 transmission distance:10m | ||||
| 3G | option | IC:H350-A30-20 bands: WCDMA(900/2100MHz) GSM(900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.7Mbps, LGA interface | ||||
| 1D/2D Barcode | option | 2D QR code Scanner: MOTO SE2707 Hardware decoder,Scan Speed: 50
times/s,Optical resolution: 5mil Support code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, etc | ||||
| NFC | option | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm | ||||
| GPS | option | gps+glonass | ||||
| Interface Configuration | ||||||
| Type | Details | Descriptions | ||||
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max: 128G | ||||
| SIM slot | SIM card | SIM card x1 | ||||
| USB interface | data transmission | USB 2.0*1 (Host)for windows | ||||
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 | ||||
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 | ||||
| HDMI interface | Video Output | HDMI 1.4a Type C x1 | ||||
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 option | ||||
| Power on | press key | power key x1 | ||||
| Volume + - | press key | power key x1,Volume + - x2 | ||||
| Standard Accessories | ||||||
| Type | Details | Description | ||||
| OTG cable | OTG cable | USB OTG to MICRO USB cable length:45mm | ||||
| USB cable | USB cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable | ||||
| Power Adaptor | Standard | AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A USA Standard CE approval | ||||
| Software Configuration | ||||||
| Type | Details | Description | ||||
| Operation System | OS version | windows 10 HOME or Windows 10 Pro | ||||
| Product Certificate | ||||||
| Type | Details | Description | ||||
| Certificate System | IP67 | IPX7 Method name:short time submerging test test device and test condition:submerge water box.the size should make the testing sample into submerge box and after then , the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m. Testing time: 30 min | ||||
| CE | YES | |||||
| 810G | YES | |||||
| Battery | UN38.3, MSDS, IEC62133 | |||||
| Reliability | ||||||
| Type | Details | Descriptions | ||||
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status | ||||
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) | |||||
| Store Temperature | ’-30 °C to 70 °C | |||||
| Humidity | Humidity: 95% Non-Condensing | |||||
Why choose us
1. Experienced
More than 8 years experience in Hardware IOT Platform
R&D and oversea sales, we know how to communicate with our partners to get what they need
2. High Quality Products
IP64/IP67/CE/FCC
100% Strictly QC Before Delivery !
3. Satisfied Service
Before-Sale Service------quick response within ONE working day; experienced sales to know better customers requirements
On-Sale Service---------- delivery on time; quality and quantity assured
After-Sale Service--------One year warranty period; technology support during your project.
Free SDK fro secondary development
|
