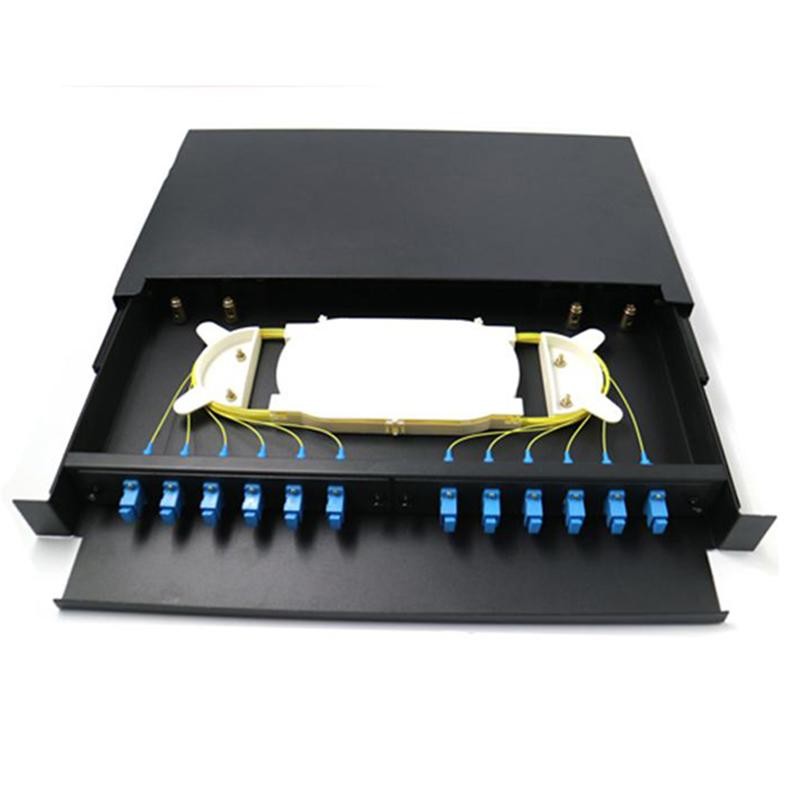

Pull Type Fiber Optic Distribution Unit , 12 Core Indoor Network Patch Panel

Pull Type Optic Fiber Distribution Frame 12 Core Rack Mounted Indoor Patch Panel

Attributes

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/ WAN

CATV

The optical fiber terminal box series products are the auxiliary equipment for the terminal wiring in the optical fiber transmission communication network, which is suitable for the direct and the divergent connection of the indoor optical cable, and plays a protective role on the optical fiber connector. Cable terminal box for cable terminal is fixed, housed and protected cable and pigtail welding and the remaining fiber.

The optical fiber terminal box series products are the auxiliary equipment for the terminal wiring in the optical fiber transmission communication network and protect the optical fiber connector.

Folding environment requirements

A. optical cable terminal box is not suitable for outdoor use, such as to be used, should take protective measures.

B. operating temperature: -25 DEG C ~ +40 C

C. storage temperature: 25 ~ +55

Relative humidity: not more than 85% (30 DEG C)

D. air pressure: 70~106kPa

Folding function requirement

1 with the introduction of fiber optic cable, wiring leads and fixing and protecting pigtail cable, wiring and the performance of optical fiber pigtail damage function.

2 has the function of avoiding the environmental impact of the optical cable terminal.

3 has the function that the optical cable metal component and the optical cable terminal box shell are insulated and can conveniently lead out the ground.

4 provide cable terminal and placed the remaining optical storage space, and convenient installation and operation.

5 boxes of physical strength is sufficient to withstand the impact of the strength of the fixed, and with different occasions of the corresponding installation function.

6 if necessary, should have the function of optical fiber cable connection.

Folded structure

The optical cable terminal box is composed of 3 parts: the shell, the internal component and the optical fiber connector.

1 shell

The shell should be easy to open, easy to install, the shell should be used for the high voltage protective grounding device of optical cable metal component.

2 internal components.

Internal components shall include the following

A. support: the internal structure of the main body for the internal structure of the support;

B. set: in order for fiber disc storage optical fiber connector (and protection) and the remaining optical fiber, can the remaining optical fiber length not less than 1.6m, the radius of curvature of the remaining fiber tray should be not less than 37.5mm. It also provides a marker for easy identification of the fiber number and convenient operation of the space;

C. fixed device for cable sheath, fixed cable strengthen member fixed and fixed line pigtail.

3 optical fiber connector protection

The protection of the optical fiber joint can adopt the heat shrink protection tube, the protection clip, etc..
