| Categories | Oil Filter Making Machine |
|---|---|
| Brand Name: | RILANT |
| Model Number: | SZZJ-2 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Delivery Time: | 45 working days |
| Packaging Details: | Standard export package |
| Production speed: | 30 pcs/min |
| Inner Diameter range: | 50-110mm |
| Machine size: | 1200×1600×1800mm(L×W×H) |
| Machine weight: | 450kg |
| Warranty: | 1 Year |
| Application: | End cap gluing |
| After-sales service provided: | Engineers available to service machinery overseas |
| Product name: | Filter making machine gluing machine |
| Condition: | New |

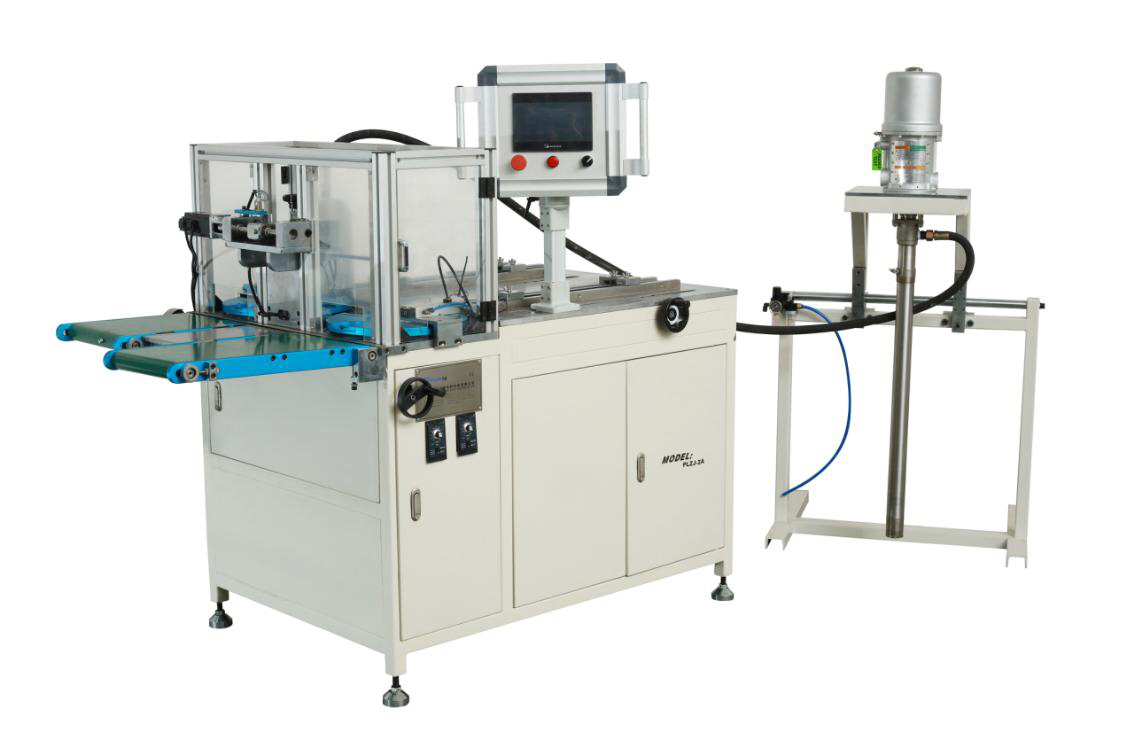

Oil Filter Making Machine Full Auto End Caps PVC Gluing Machine
1, General Description
This end caps PVC gluing machine is used for glue dispensing PVC on the end caps of the filter element.
2, Machine Specifications
| The available ID of the end cap | Φ50~Φ110mm |
| Max end caps input number/time | 2PCS/time |
| Speed | 30 pcs/min |
| Viscidity of glue | ≤50000CP |
| Glue type | PVC(high temp.solidified adhesive) |
| Power supply | 380V/50Hz |
| Conveyor motor power | 0.12KW |
| Working air pressure | 0.6MPa |
| Pump air pressure | ≤0.45MPa |
| M/C weight | 450kg |
| M/C size | 1200×1600×1800mm(L×W×H) |
1, The action of end caps loading and gluing can be regulated
easily by computer control, so it is coordinate and works normally.
2, This machine has the function of evenly gluing on the end cap of
the filter.
3, This machine has excellent characteristics such as high
efficiency and easy operation.
4, Adopts import gluing pump guarantee for accurately gluing.
5, Specially equipped the gluing tanks which make gluing much more
evenly.
|
