Auto Cabin Air Filter Bonding Machine Non Woven Edge Bonding Gluing Toyota Camry Air Filter

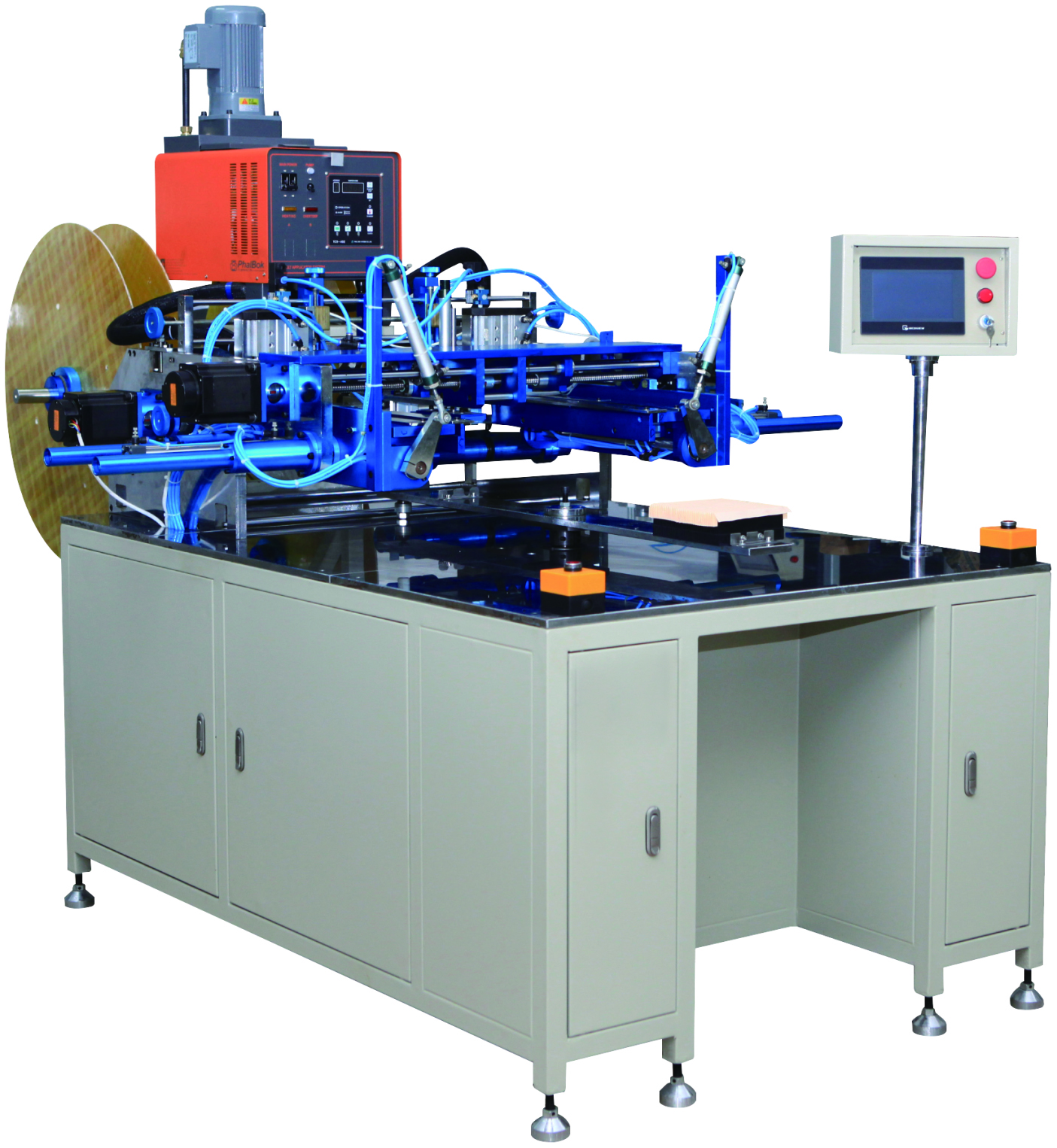

Full Auto Car Cabin Air Filter Gluing Machine Non-woven Edge Bonding Machine

1, General description

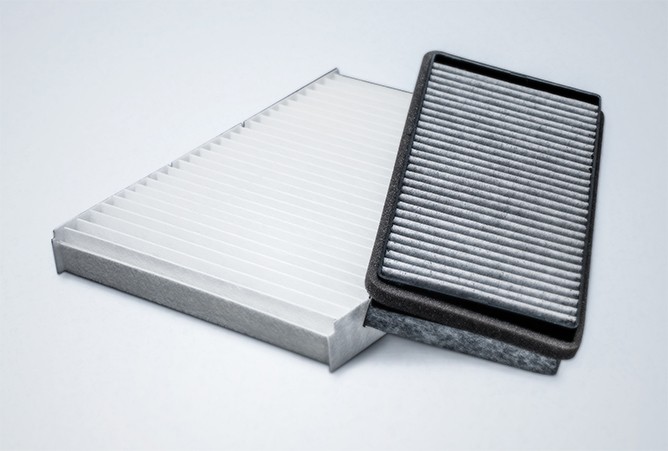

This machine is mainly used for cabin air filter core pleated, then coated with hot melt adhesive strip of non-woven cloth or paper to stick on both sides of the filter paper.

2, Machine Specifications

1, Seal speed:10pcs/min

2, Product height:500mm

3, Product width:400mm

4, Adjustable pleating height: 50mm

5, Machine motor power:8kw

6, Working air pressure:0.6Mpa

7, Power supply:380v/50Hz

8, Main M/C dimension: 2660×1760×1950(L×W×H)

9, M/C weight:700kg

3, Features

1, The machine is suitable for gluing different length filter edge, cut and paste is controlled by computer.

2, Machine gluing speed is fast, high positioning accuracy.

3, Product specifications can be adjusted.

SUZHOU RILANT MACHINERY CO.,LTD is a professional enterprise that is specialized in manufacturing, exporting &importing auto machines, moulds, filter components etc.

The main business scope included as below:

1, Die casting- deburring turnkey solution

2, Filtration-turnkey solution

3, Other customized machinery & Line
