Lightweight Portable Trace Oxygen Analyzer Display 3.5LCD 320*240 Screen Resolution

Categories Portable Trace Oxygen Analyzer
Brand Name: Phymetrix
Model Number: POA200
Place of Origin: USA
MOQ: 1
Payment Terms: T/T
Delivery Time: 5-8 Working Days
Appling Area: Class I,Div.I,Groups B,C,D
Operating Temperature: 32~113F (0~45°C)
IP Grade: IP68 Protection From Harsh Environment
Resolution: 0.01ppm
LCD Display: 3.5”LCD 320*240 Screen Resolution
Operating Humidity: Less than 95%(Non-Condensing)
Connector: Quick Disconnect Fittings
Response Time: <10s(100ppm-1%) <25s(0-10ppm)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

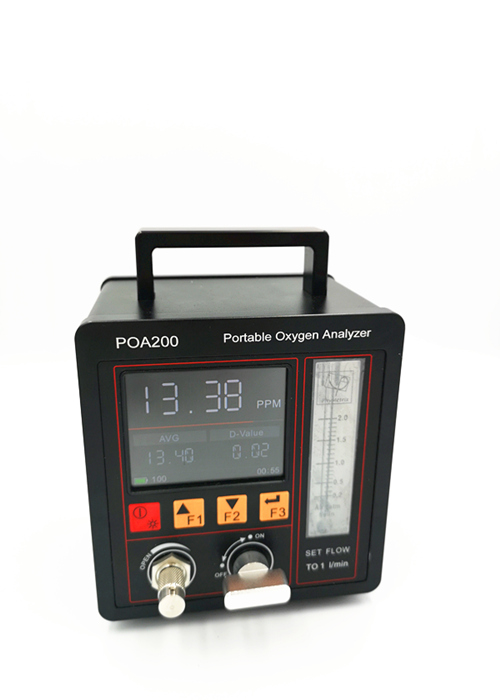

Lightweight Portable Trace Oxygen Analyzer Display 3.5LCD 320*240 Screen Resolution

Display 3.5”LCD,320*240 Screen Resolution , Portable Trace Oxygen Analyzer , IP68 Protection From Harsh Environment


Analyzer performance characteristics:
 POA200 oxygen analyzer adopt special weak acidity electrolyte electrochemical sensor, thesensoris linearinits range.Therefore, measuring oxygen concentration isvery stable, and its measuring range is very wide:0-10ppm and 0-10000ppm.  The resolution for the 320 * 240 color high-definition LCD screen, can also shows that oxygen density, maximum and minimum values, the total time of measurement, and the time difference, measurement process curve, the power and the current time. Especially ,it can also display the measurement process curve, which providing a clear reliableprocessanalysis data for the users.  Temperature compensation of the full range, make instruments more adapting to climate change.  Avariety ofmeasurement interface, userscanchooseaccordingtoindividualhabits.  It can switch interface in both Chinese and English according to users’need.  Theanalyzerissmall andportable,makingno limit from space and the place.


Technical Specifications

Measuring range0~5000PPM; 0~5%; 0~20%; 0~100% (optional sensor)
Minimum resolution0.01PPM
accuracy±1% of full scale (20°C)
Obvious31/2 digital LCD display
Operating temperature32~113F (0~45°C)
Response time100ppm~1%<10 seconds 0~10ppm<25 seconds
Rechargeable battery power115/230VAC±10%
Application areaIntrinsically safe design Class I, Div.I, Groups B, C, D.
size138*185*112 (w * d * h)
weight2.45Kg
