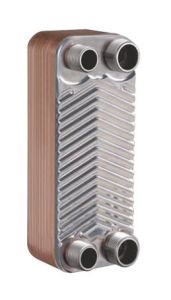

B3-012 Brazed plate heat exchanger for solar water heating system

ECOICE Copper Brazed plate heat exchanger is composed of a lot of stainless steel plates and front and rear covers, it is separated copper sheet (or nickel) with high purity and brazed in high temperature furnace.In order to achieve the best heat transfer effect, All corrugated plates will be combined with velocity heat transfer plate with high, middle and low level according to the clients' requirements. It has a compact structure without gasket and outer frame to operate in the condition of high temperature and high pressure.

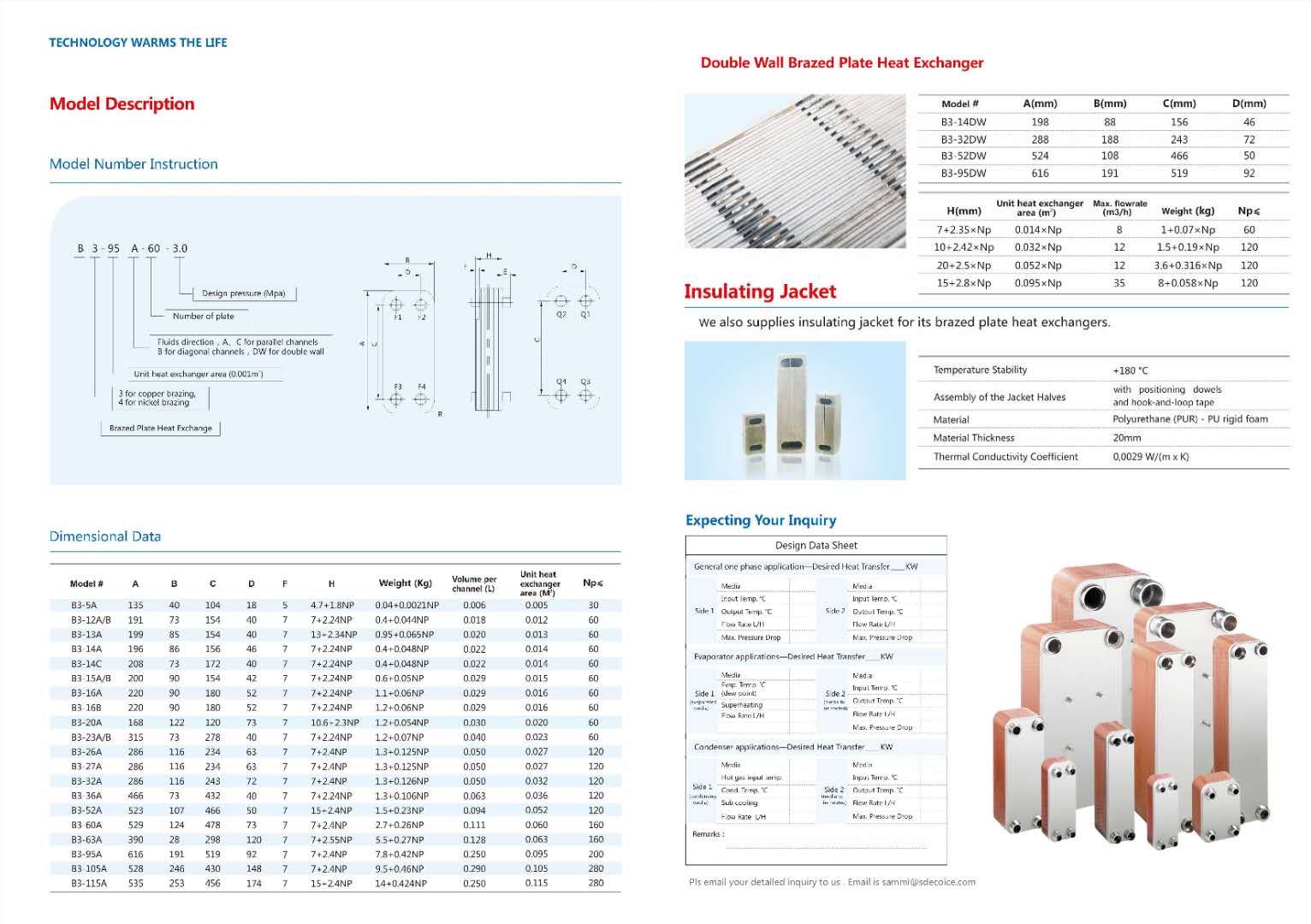

Model B3-012

Height x width :192x73mm
Hole distance :154x40mm
Design pressure: 1.0MPA 3.0MPA
Test pressure :1.5MPA 4.5MPA
Max Threaded Connection: 3/4"
Max Welded Connection: 7/8"
Plate material AISI :316L 304
Max No. Of plate :50
Channel : H
Weight(kg): 0.4+0.044n
Heat exchange area(m2): (n-2)× 0.012
Side valumn : 0.018× N/2 0.018× (n-2)/2
Design temperature : -196---+200 degree
