Gear Box Driven Customized Panel Roll Forming Machine 18.5kw Power Formed

Gear Box Driven Customized Panel Roll Forming Machine 18.5kw Power Formed

1.Machine Components

2.Technical Parameter

1). Decoiler

* Weight Capacity Of Decoiler: 3 Ton

* Inner Diameter. Φ460-520mm

* Outer Diameter. Φ1400mm

2). Roll Former

* Axis Diameter: 90mm

* Forming Roller stand: 10 Groups or according to customer profile

* Main Axis material: First grade 45# steel, heated and quenched

* Roller material: GCr15 Steel, Quenched and heated process

* Drive Type: Gear box

* Chain material: 45#steel, HRC45-50

* Machine Frame stand: 35# steel

* Main Power: 18.5 KW

3) Cutting Device

* Cutting type: Hydraulic cutting

* Hydraulic pump station power:7.5 KW

* Hydraulic Blade and cutter material: Cr12Mov, quenching process 58-62

* Cutting length tolerance: +/- 2.0 mm

4). Electrical System

* Voltage: 380V, 3 Phase 50Hz(can customized)

* PLC Electrical control system: Delta

* Length Controller: Encoder Frequency Control System

* Operation: Touch Screen

5) Runout Table:

* Non-power type

* 2m

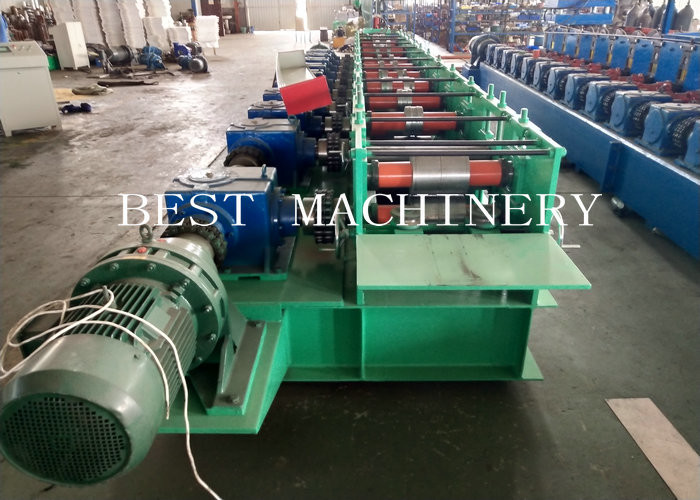

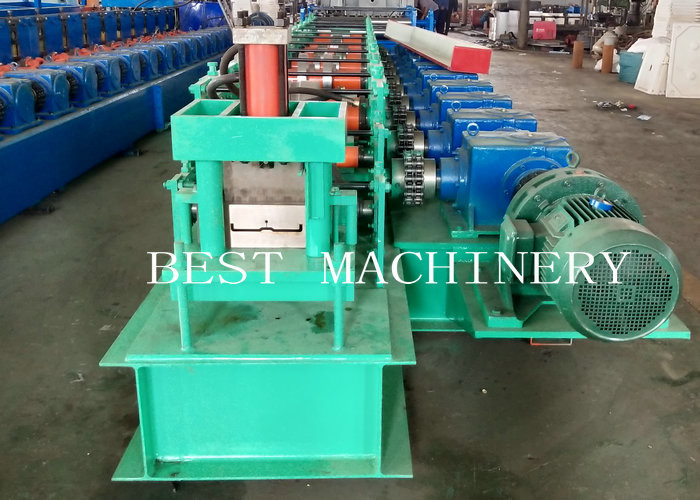

3. Machine photos for reference:

4.Why choose this machine?
1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
80mm diameter solid steel shaft
Cutting blade with heat treatment.
5. Cr12 mould steel cutter with quenched treatment.
6. Product cut-to-length.
8.Technician overseas installing and training available

5.FAQ:

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier with CE,BV,SGS assessment (Audit report can be provided).
