| Categories | Tablet Bottle Filling Machine |
|---|---|
| Brand Name: | URBAN |
| Model Number: | counting line |
| Certification: | CE ISO9001 GMP |
| Place of Origin: | ZHEJIANG-china |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10set/Year |
| Delivery Time: | 40 work days |
| Packaging Details: | Free Fumigation in Wooden Cases |
| Name: | Tablet Capsule pill counting bottle filling packing line |
| Warranty: | One year |
| Packaging Type: | Bottles, Cans, Vitamin Pills counting machine |
| Function: | Unscramble,counting,capping,sealing and labeling |
| Power supply: | 380V 220V 60Hz 3Phase |
| Advantage: | Easy operation High Efficency |
| Output: | 20000-40000capsules/hour |
| Capacity: | customize |
| Company Info. |
| WENZHOU URBAN PACKLINE CO., LTD. |
| View Contact Details |
| Product List |

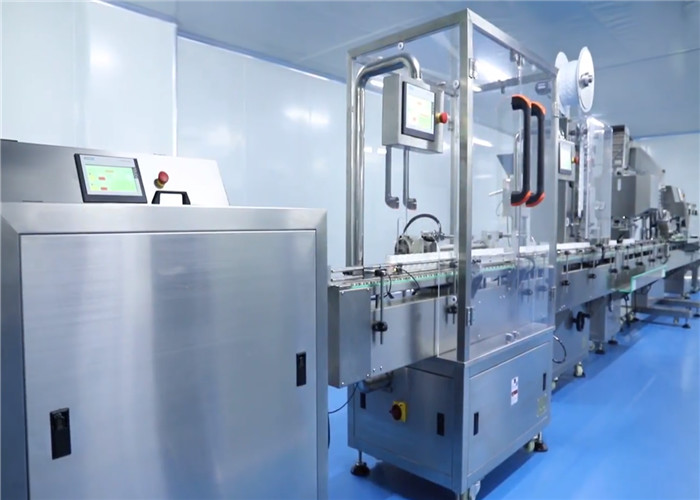

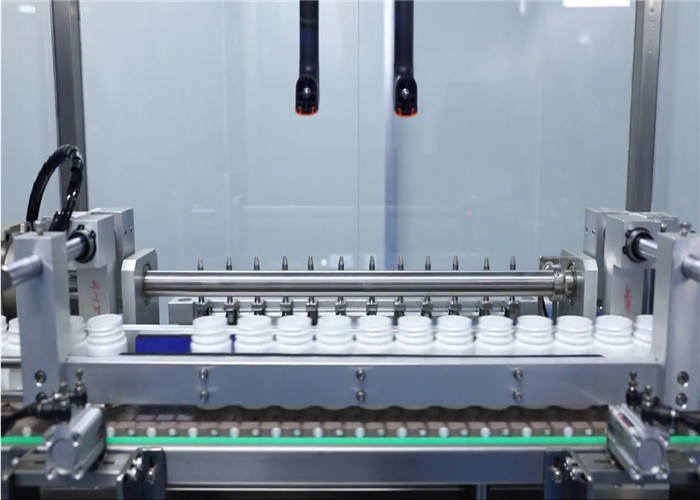

Automatic Pharmaceutical counting bottle unscramble filling packing line for Tablet Capsule pill
Product Application
The number of grain filling line consists of the following units: automatically unscramble bottle machine, electronic capsule counting machine, automatic desiccant machine, automatic screw cap machine, aluminum foil sealing machine, round bottle labeling machine.The whole line filling packaging production capacity of 1000-5200 grains in a minute.
We can make different solutions according to the requirements of customers. Help customers choose best suitable machines to make the production line.
Fully-Automatic Bottle Unscrambler
Used for loading and oriented supply of round/square plastic containers to the automatic line .
| Capacity | Max. 120 Bottle/Min ( Depend on bottle size ) |
|---|---|
| Size of Container | 10ML-300ML |
| Voltage | AC220V , Single Phase, 50Hz |
| Power | 0.5 KW |
| Overall Dimension | 1510×1070×1200 mm |
| Weight | 200kg |
Automatic Desiccant Insert Machine:
It is an automatic equipment integrating machine, electricity and gas.
| Capacity | 20-160 bottles /min |
| Size of Bottle | 15-300ML |
| Air pressure (Mpa) and air consumption (m3/h) | 0.4/0.3 |
| Power | 0.3KW |
| Overall Dimension | 1600 (L)*750(W)*1800(H)mm |
| Weight | 280KG |
RTAY Electronic Pill Counter Machine:
| Capacity | Max.55 bottles /min |
| Size of Capsule | #00-#5 Capsule |
| Size of Tablet | Max. Dia.22mm |
| Size of Bottle | 15-500ML |
| Air Consumption | 0.8 M3/h |
| Hopper Volume | 30ltrs |
| Overall Dimension | 1600 (L ) *1500( W ) * 1600 ( H)mm |
| Weight | 280kg (with conveyor) |
High-Speed Capping Machine:
Applicable for different -size round, square bottles and containers with different caps including CRC cap.
| capacity | :Max. 130 Bottles/Min ( Depends on the bottle mouth Dia.) |
| Size of Cap | Dia. 20-65 MM |
| Size of Bottle | 15-500 ML |
| Overall Dimension | 2600 (L)*1100(W)*2000(H)mm |
| Weight | 500kg (with conveyor) |
Induction Sealing Machine:
Applicable for different -size round, rectangular and most irregular bottles and containers.
| Max.capacity | 200 Bottles/Min |
| Size of cap(Diameter) | 15-100 MM |
| Size of Bottle | 15-2000 ML |
| Height of bottle | 30-300mm |
| Power | 4KW |
| Overall Dimension | 1300 (L)*950(W)*1250(H)mm |
| Weight | 250kg (with conveyor) |
Self-Adhesive Labeling Machine:
Applicable for different size round or square plastic bottles and glass bottles.
| Capacity | 60-120 Bottles/min |
| Size of Container | 15-500 ML |
| Voltage | AC220V / 50HZ |
| Overall Dimension | (L) 2400 × (W) 1350 × (H) 1650mm |
| Weight | 350KG |
|
