High Precision Automatic Paper Box Making Machine With PLC Control

High precision Automatic Paper Box Making Machine with PLC Control

Automatic Paper Box Making Machine Description:

Automatic Paper Box Making Machine adopts motion controller, visual manipulator for positioning ,HMI System,which make it possible that paper feeding, gluing, cardboard four corners taping, feeding, edge covering, full ear folding, forming and shaping of the finished box are completed in one operation.Through the electronic cam gear rack structure driving the box mold to operate, it can independently complete multiple deep folding operations so as to meet the requirements of high-end products and boxes free of folding trace in the market.

The feeder, gluer and conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting, and less time consumption. Double color conveyor can save the time for changing to other color belt, which is Hongming’s patent. The spot unit adopts Germany camera with 5 million pixel and Japanese robot arm to pick and spot the greyboard, enhancing the spotting accuracy to within 0.05mm. The forming unit employs foreign linear slider, stable and wear resistant.

Automatic Paper Box Making Machine Features

1. Automatically sucking covering paper and feeding grey board;
2. Touchscreen HMI system of corner pasting device or board joining & box forming machine (optional)
3. Visually positioning and manipulator capture system (positioning error ±0.05mm)
4. 24-hour control of glue preheating;
5. Glue viscosity automatic control system (optional)
6. Completing multiple folding operations through servo driving box mold

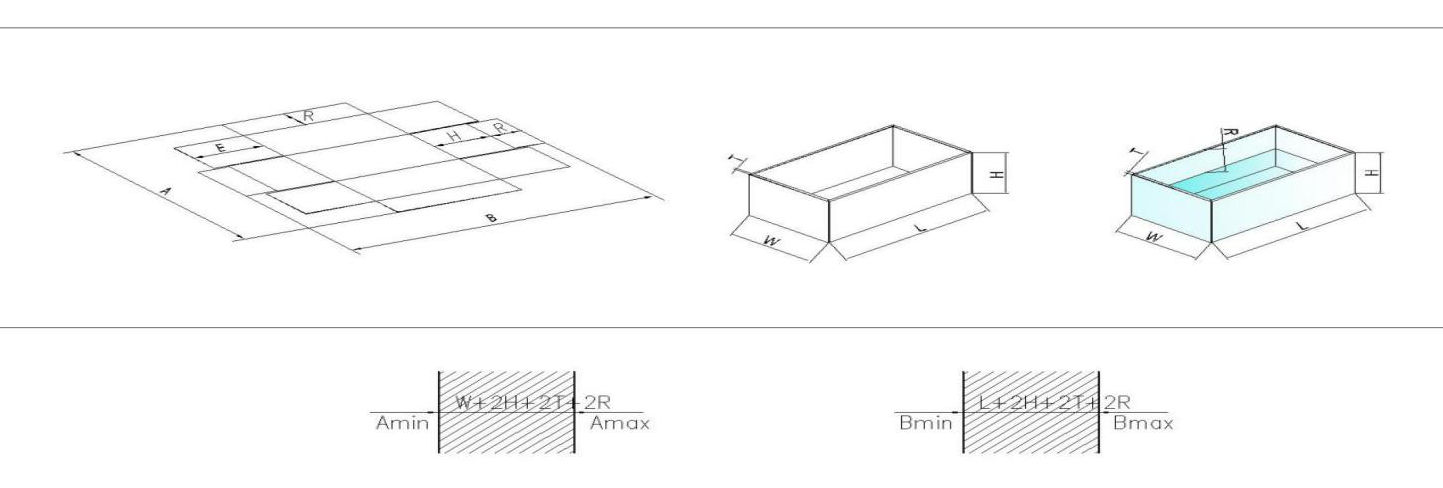

Automatic Paper Box Making Machine Specifications

Note: parts need to be added if the box is 85mm long or if the fold in depth is 100mm.

  Wenzhou Zhongke Packaging Machinery Co., Ltd. (Zhejiang Zhongke Packaging Machinery Co., Ltd.) was established in 2002. It is the first leading enterprise in China to independently develop and create a series of automatic rigid box making machines. The company took the lead of this industry in passing the international quality system ISO9001 certification, environmental protection system ISO14001 certification, EU CE safety system certification, intellectual property management system GB/T29490-2013 certification. After 16 years of development, it has been rated as "high-tech enterprise", "Zhejiang-level patent demonstration enterprise", "provincial high-tech research and development center", "Zhejiang science and technology enterprise", "Wenzhou famous brand product", " Wenzhou City Credit Management Demonstration Enterprise” and “Safety Production Standardization Level 3 Enterprise”; the company has always attached great importance to enterprise management and innovation development. It has more than 39% of the research and development institutions with intermediate and senior technical talents, and has obtained nearly 100 inventions, utility models and software copyrights.

  It is located in Wanquan Light Industry Base in Pingyang County, Zhejiang Province, covering an area of 50,000㎡. It is a private economic entity integrating independent research and development, design, production, sales and service. On the basis of drawing on the advanced technology of similar foreign products, the company cooperates with well-known domestic universities to develop intelligent automatic rigid box making machines. Its technical department is at the domestic leading level, and many have filled the domestic gap, optimizing and upgrading the traditional industry. Promoted the development of China's packaging industry.
