| Categories | Low Speed High Torque Hydraulic Motor |
|---|---|
| Brand Name: | Helm Tower |
| Model Number: | MS35 |
| Certification: | ISO 9001 |
| Place of Origin: | Ningbo |
| MOQ: | Negotiation |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Delivery Time: | 7-15 working days |
| Packaging Details: | Standard Export Wooden Case |
| Type: | piston motor |
| Color: | customized |
| Speed range: | 0-140 r/min |
| Torque range: | 8000-13800 N. m |
| Rated pressure: | 25MPa |
| Max pressure: | 31.5 MPa |
| Company Info. |
| Ningbo Helm Tower Noda Hydraulic Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

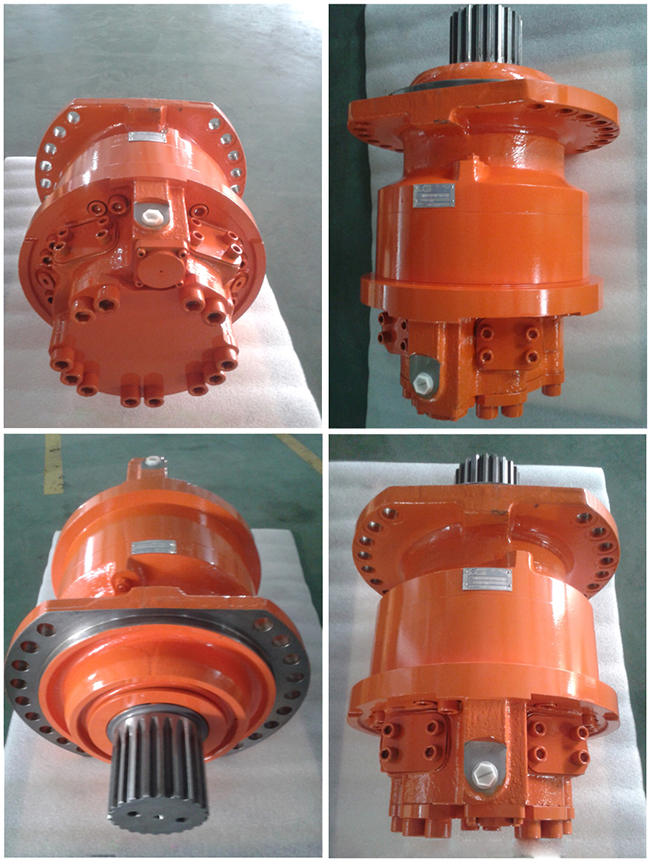

Poclain MS35 Low Speed High Torque Hydraulic Motor With Higher
Output Torques
Features:
MS35 Series Hydraulic Motor
1.radial piston design.
2.higher output torques,lower output speed,smoother output speed at
low speeds.
3.optimized and modular design capable of delivering high
performance.
4.highly efficient at any speed or operating pressure.
5.withstand the most extreme operating conditions and require very
little maintenance.
**IMPORTANT INFORMATION**
As with any hydraulic system, proper flushing of the system is
crucial to the system performing at its maximum efficiency. Before
installation, make sure all lines, filters, and reservoirs are
flushed, cleaned and properly inspected or replaced before
installing knew hydraulic pump, motor or transmission.
MS35 Displacement Diagram
| Code | HMS35 | |||
| Displacement Group | 7 | 9 | 0 | 2 |
| Displacement(ml/r) | 2439 | 3143 | 3494 | 4198 |
| Theoretical torque at 10MPa(N.m) | 3878 | 4997 | 5555 | 6675 |
| Rated speed(r/min) | 100 | 80 | 63 | 63 |
| Rated pressure(MPa) | 25 | 25 | 25 | 25 |
| Rated torque(N.m) | 8000 | 10300 | 11450 | 13800 |
| Max.pressure(MPa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 9850 | 12700 | 14150 | 17000 |
| Speed range(r/min) | 0-140 | 0-140 | 0-130 | 0-110 |
| Max.power(kW) | Standard displacement is110kW,variable displacement priority rotation 73kW,no priority is 55kW | |||

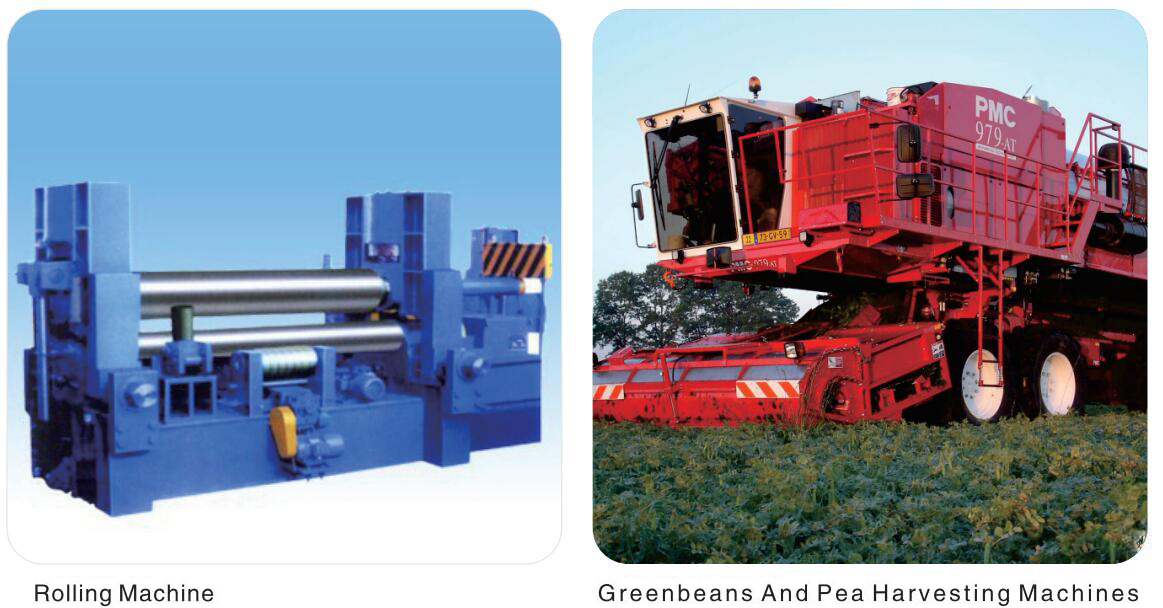

Applications:

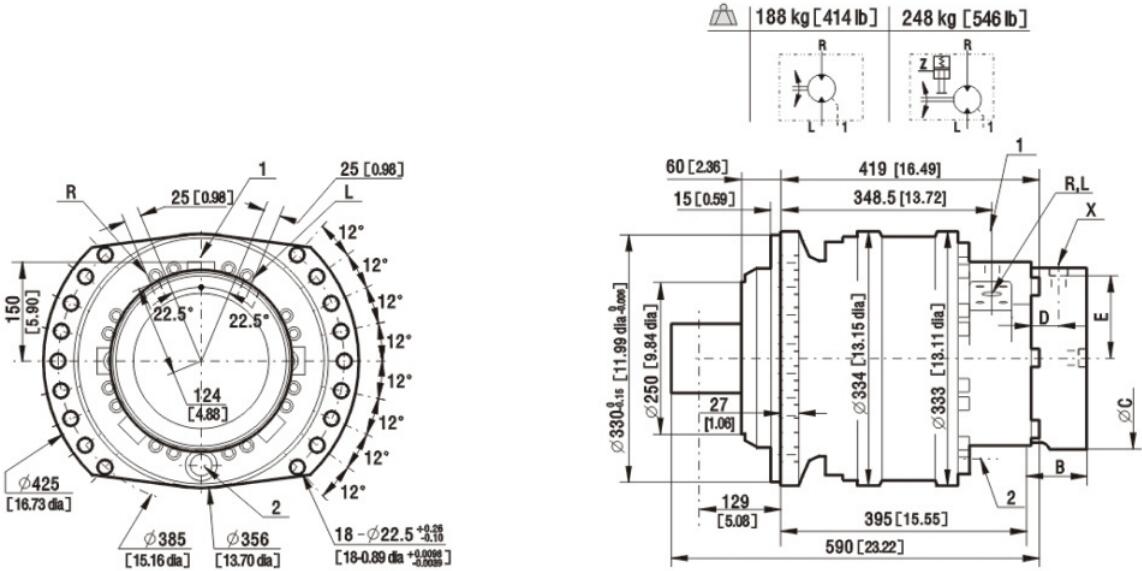

MS35 Connection Dimension

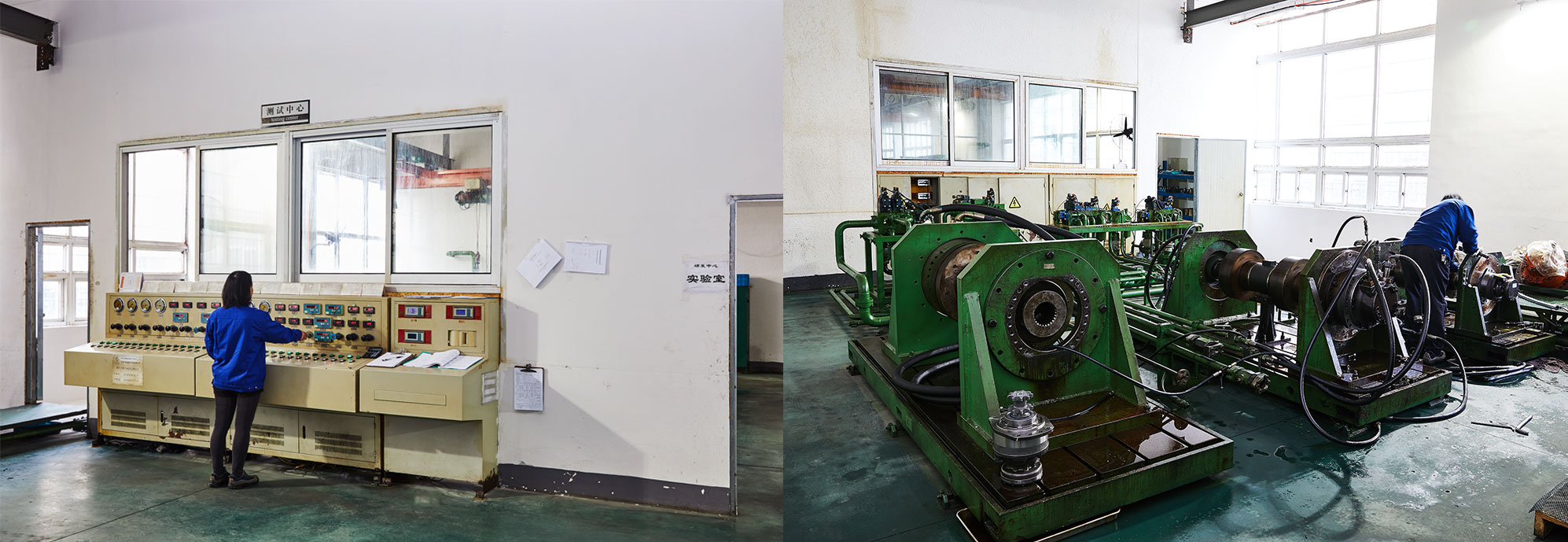

High precision testing facilities and experienced inspectors.
|
