| Categories | Radiator Making Machine |
|---|---|
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | WONDERY |
| Supply Ability: | 100 Set/Sets per Year |
| Packaging Details: | plywood case suitable for sea transportation |
| MOQ: | 1 Set/Sets |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 90 days after receipt of down payment |
| Model Number: | ZPX-280 |
| Certification: | CE |
| machine name: | Radiator making machine |
| fin type: | wavy fin |
| radiator core size: | 800*800mm |
| pneumatic system working pressure: | 0.6Mpa |
| Fin Rolling Unit Life: | about 200, 000,000 fin crests |
| Working Speed: | 0-280M/Minute |
| Company Info. |
| Wuxi Wondery Industry Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

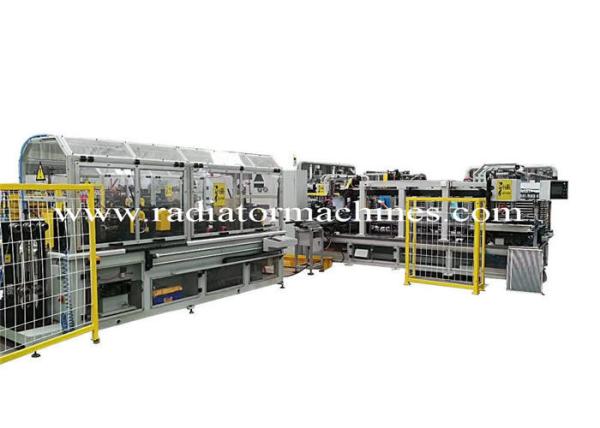

Fully Automatic Radiator Production Line , Aluminium Radiator Core Builder Line
Product description
The fully-automatic high speed radiator core assembly line is designed specially for high volume production.
The radiator making machine line is comprised of the high speed radiator fin making machine, the fin and tube
distribution table, and the
radiator core builder machine.
The radiator core builder machine is also called as radiator core assembly machine,
aluminum radiator core assembly machine, core assembly table, core assembly machine, radiator core
assembly machine, radiator making machines.
Technical Parameters of Fin Machine Section
Production efficiency | Feeding speed: MAX 280m/min; cutting speed: MAX 80 times/min ; Coil inner diameter: 300mm; double coil single channel; |
Operator | 1 person |
Fin forming accuracy | Fin height±0.02 ; fin pitch±0.05 |
Fin forming unit replacement time | Around 20mins |
Electrical components | Delta, Taiwan; Schneider; LG, Omron or IFM, Germany |
Pneumatic components | AIRTAC, Taiwan |
Hydraulic components | Jeougang, Taiwan |
Movement components | PMI, Taiwan |
Control system | PLC and servo control; |
Total power | 380V/50Hz 3-phase 4-wire; 20KVA |
Air source | 0.5Mpa clean and dry air; consumption: 1.0 M³/min |
Fin forming unit lubrication system | DS800 micro-spray precision lubrication system |
Fin forming unit lubricant | Fin volatile oil |
Equipment lubricant | 22-32 mechanical oil |
Overall dimension | 5700X1500x2200 ; 6T |
Product Parameters of Radiator Cores
| No. | Item | Unit | Parameters | |
| 1 | Flat tube length | L | mm | 400---800 |
| 2 | Flat tube quantity | N | pc | 30-80 |
| 3 | Flat tube width | B | mm | 16--20mm (a fixed value) |
| 4 | Flat tube thickness | H | Mm | A fixed value |
| 5 | Flat tube layer | Layer | 1 | |
| 6 | Flat tube center-to-center distance | A | mm | A=H+K |
| 7 | Fin height | K | mm | |
| 8 | Fin width | W | Mm | W=B |
Technical Parameters of Core Builder Section
| Operator | 1 person |
| Distribution movement time | ≤1S/ line (1 fin and 1 flat tube being 1 line) |
| Product replacement time | MAX 30mins (reference value; varying with worker’s skillfulness and product specification) |
| Production capacity | ≤ 90 S/core (based on 40 flat tubes per core; varying with worker’s operation and raw material) |
| Core line error | 0(flat tube and fin for each line) |
| Electrical components | Mitsubishi Q series; Schneider, LG, Omron, IFM (Germany) |
| Pneumatic components | Airtac, Taiwan |
| Movement components | PMI, Taiwan |
| Control system | PLC+ servo drive |
| Total power | 380V/50Hz 3-phase 4-wire; 10KVA |
| Air source | 0.5Mpa clean and dry compressed air; consumption: 1.0 M³/min |
| Equipment lubricant | 22-32 mechanical oil |
| Overall dimension | About 3400x1500x1200mm ; 2T |
Our Company Info
Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various
domestic factories. We can supply the heat exchanger production line for auto radiators, condensers,
oil-coolers, heaters, or other products, and HVAC condensers and evaporators.
Auto Condenser Production Line
Including: collecting pipe single-punch mold; collecting pipe automatic forming machine; aluminum
one-end or two-end chamfering machine; semi-automatic core builder; condenser
side plate forming machine; collecting pipe slitting machine; flat tube straightening and cutting machine;
aluminum brazing furnace.
Auto Radiator Production Line
Brazing radiator machines: fin making machine, radiator core assembly machine, plastic
tank crimping machine, leak detector, header and side plate mold, and brazing furnace; machines
mechanical radiator making machines: fin mold, tube-to-fin expansion machine,
tube-to-header expansion machine, plastic tank crimping machine, etc;

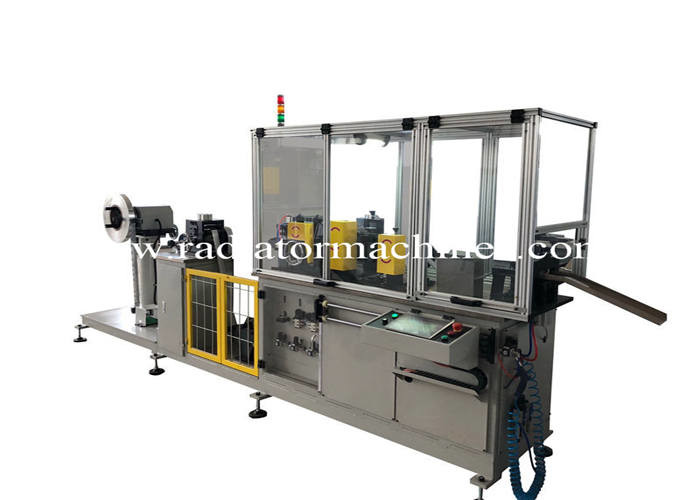

100m/min Aluminum Fin Radiator Making Machine Picture:
|
