Professional Automatic Bottle Washing Machine / Bottle Cleaning Machine

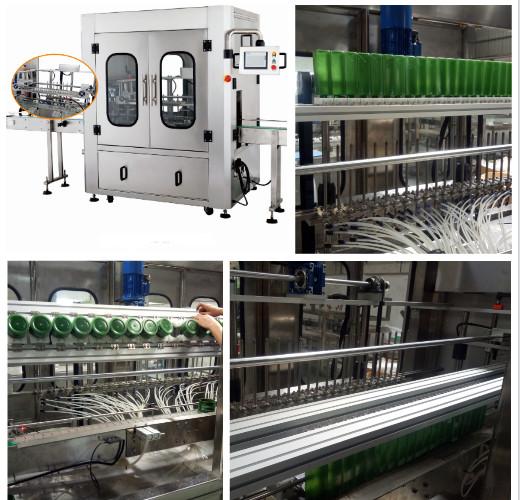

Automatic bottle washing machine.

Automatic bottle washing machine is mainly used for washing and drying bottles such as glass bottles, tinplate, canned aquatic products, and canned fruits. Choose from bottle sorting-washing-drying, which can greatly save time and labor. It can replace the traditional manual bottle washing and wiping, etc., which reduces the cost and has high efficiency.

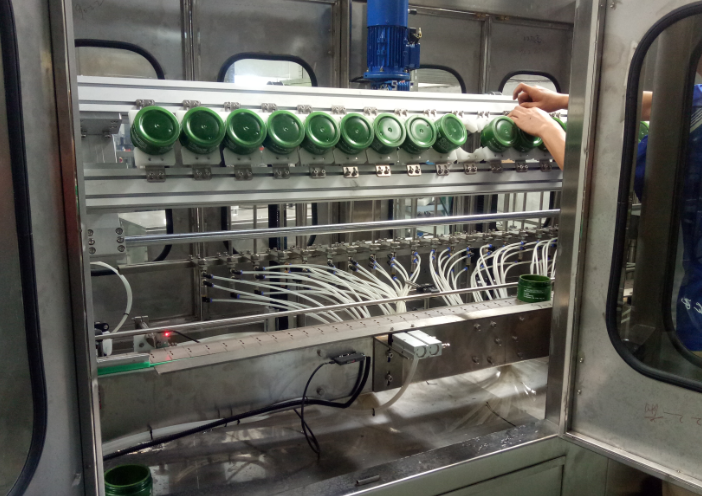

Automatic bottle washing machine is flushed with high-pressure water for a long time to rinse the inner bottle. After the flushing is completed, the water is shut off. At the same station, the high-pressure clean air source is used to dry the inner wall of water. The equipment is suitable for various bottle shapes such as round neck bottles, flat bottles and square bottles. It is very suitable for many types of bottles.

Technical Parameters:

• Production capacity: customized 4, 6, 8, 10, 12, 14, and 16 heads according to demand
• Power source: 380V/220V 50Hz
• Machine power: 2KW
• Gas source: 0.6~0.8Pma clean air source
• Washing medium: filter water, use water once, compress air.
• Program control: PLC + touch screen man-machine interface.

Features:

1. For glass bottles, tinplate, plastic bottles, etc.

The bottle washing machine uses a water pump to circulate spray cleaning. The machine turns the bottle upside down and cleans the bottle at high pressure without dead ends.

2. Rinse with water, then blow with air to blow the water from the top down, so that the inner wall of the bottle will have less water droplets.

3. The washing water can flow away or be designed to use a circulating water pump, so that the water in the water tank can be used optimally.

4, made of food-grade stainless steel, stainless steel conveyor chain conveyor speed can be adjusted.

The filling production line integrated production expert around you

Tengzhuo was founded in 2011 and has more than ten years of experience in the packaging equipment industry. Design the filling production line according to your requirements and workshop layout.

Our products include: filling production lines, bottle washing machines, filling machines, capping machines, labeling machines, sleeve labeling machines, cartoon palletizing machines, etc.

The main electrical components are all from international brands, such as PLC and touch screen from Siemens, servo from Panasonic or Schneider, cylinder from Airtac, and power switch from Schneider. Each piece of stainless steel is made of thick 304 material and will never rust.

The products have passed CE certification.

Our company has 16 senior engineers and designers, 5 CNC lathes and milling machines, and more than 10 other professional production machines and equipment. We have truly integrated R&D, design, processing, assembly, installation and debugging to meet all your pre-sales, installation, production and after-sales problems.
