Four Wheel Pinch Linear Capping Machine Electrically Controlled Movement

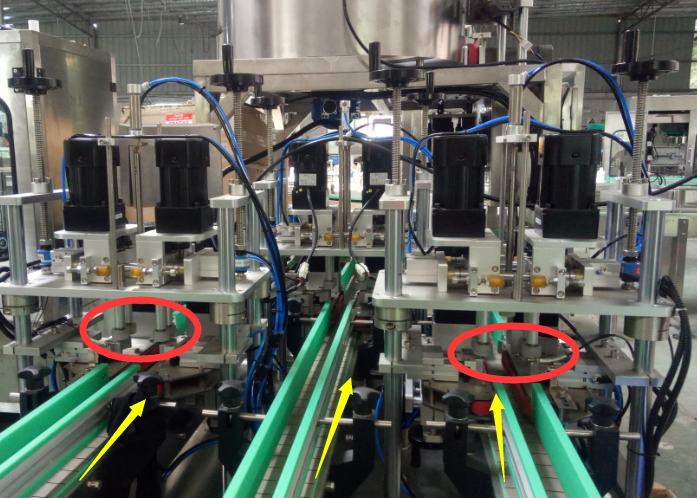

Four Wheel Pinch Capping Machine.

The four-wheel pinch-type capping machine mainly uses pneumatic components to complete the pinning action. It is equipped with a capping (pressing) device that can be used or not. The cap body can be pressed during the capping process to ensure a more stable capping. It is suitable for twisting the screw caps of round bottles and flat bottles (pots) of various materials to complete the capping of bottles.

Four Wheel Pinch Capping Machine structure is simple and easy to adjust. There is no need to change accessories when changing the bottle type, and only the position of individual parts needs to be adjusted. During the capping process, the bottle can be capped without caps.

● digital display, intuitive and clear;

● The control panel is a touch-type button, which is comfortable and sensitive.

● Hand wheel type lifting adjustment, easy to use;

● Electrically controlled movement, bottle positioning mechanism, easy to operate;

● The torque can be adjusted to effectively protect the cap from damage, and the tightness can be adjusted according to different caps

● Small size, full functions, both automatic and manual;

● Suitable for lock caps of various types of bottles, such as food, cosmetics, pharmaceuticals, daily chemicals, etc.

• Wide range of lock caps: bottle caps of different shapes and specifications (such as duckbill caps)

• air pressure: 0.4-0.6Mpa

● capping height: 30-300mm

● capping speed: 1000-2500bottle/hour

Have different style: semi-automatic Pinch Capping Machine, automatic pinch capping machine, one track, two track, three track for you choose.

The filling production line integrated production expert around you

Tengzhuo was founded in 2011 and has more than ten years of experience in the packaging equipment industry. Design the filling production line according to your requirements and workshop layout.

Our products include: filling production lines, bottle washing machines, filling machines, capping machines, labeling machines, sleeve labeling machines, cartoon palletizing machines, etc.

The main electrical components are all from international brands, such as PLC and touch screen from Siemens, servo from Panasonic or Schneider, cylinder from Airtac, and power switch from Schneider. Each piece of stainless steel is made of thick 304 material and will never rust.

The products have passed CE certification.

Our company has 16 senior engineers and designers, 5 CNC lathes and milling machines, and more than 10 other professional production machines and equipment. We have truly integrated R&D, design, processing, assembly, installation and debugging to meet all your pre-sales, installation, production and after-sales problems.
