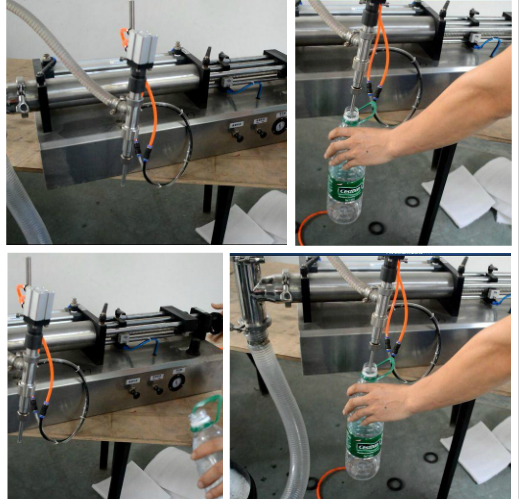

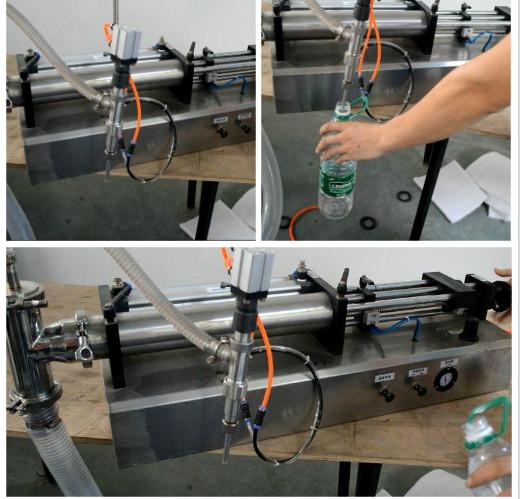

One Head Filling Machine
Advantages:
1. Adopts high-end gas pressure meter, the operation is more accurate.
2. Machine dynamic structure section adopts Germany FESTO and
Taiwan Air TAC etc pneumatic components, material contact parts are
made of 304L stainless steel, meet GMP approval request.
3. Precise check valve, long working life, ensure the filling
product can run smoothly.
4. Filling accuracy is high, within filling range, the filling
volume and filling speed can be set at your option.
5. Filling heads adopt drip-proof and lifting filling device.
Features:
1. Adopts high-end gas pressure meter, the operation is more accurate.
2. Machine dynamic structure section adopts Germany FESTO and
Taiwan Air TAC etc pneumatic components, material contact parts are
made of 304L stainless steel, meet GMP approval request.
3. Precise check valve, long working life, ensure the filling
product can run smoothly.
4. Filling accuracy is high, within filling range, the filling
volume and filling speed can be set at your option.
5. Filling heads adopt drip-proof and lifting filling device.
Parameters:
| Machine model | TZ-100F | TZ-300F | TZ-500F | TZ-1000F | TZ-2500F | TZ-5000F |
| Filling range | 5-100ml | 10-300ml | 50-500ml | 100-1000ml | 300-2500ml | 1000-5000ml |
| Filling speed | 15-35 bottles/min | |||||
| Filling error | ≤±1% | |||||
| Voltage | AC 220V 50Hz / 110V 60Hz | |||||
| Air pressure | 1.5Hp air compressor ; 0.4-0.6mpa air pressure | |||||
| Dimension(cm) | 86*29*32 | 86*30*32 | 89*33*34 | 92*34*34 | 94*35*39 | 95*48*47 |
| Net weight | 32kg | 33kg | 34kg | 36kg | 43kg | 52kg |
We use Famous brand electrical parts to keep the machine with high quality.
|
