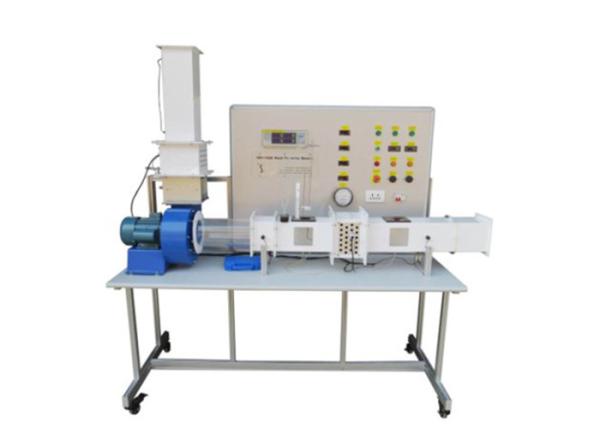

Technical Heat Transfer Lab Equipments Convective Bench

SR1162E Educational Equipment Technical Teaching Equipment Trainer Heat Transfer Bench

• A complete floor standing unit, Specially designed to help student understand the characteristics of a cross flow heat transfer. The unit consists mainly of a vertical duct with clear window, heat transfer elements, a constant speed fan with iris damper, and all the necessary sensors to measure temperatures at various points and air velocity

  Specification

  [1] convective heat transfer

  [2] exchangeable pipe bundle as heat exchanger

  [3] 2 heaters can be inserted in a bundle or alone

  [4] air flow rate adjustable

  [5] Digital Display for pressure measurement station to determine air velocity

  [6] display and control unit indicates air temperature, heater temperature and heating power

  Description:

  The unit should have three heat transfer elements as follow:

  a. Single tube

  b. Tube bundle

  c. Finned surface

  The surface incorporates an electrical heating element with temperature sensor.

  Technical Data

  Duct

  Vertical rectangular epoxy coated mild steel duct mountes on floor standing wheeled frame.

  Acrylic window on the wall of the duct

  cross-section: W xD x H - 0.8 x 0.17 x 1.08 m

  Brand: ShouldShine

  Model: SR1162E

Product Details and Warranty

We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.

We supply 3 years warranty time.

Packaging & Delivery

Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Training Room Photo
