Customizable Wire Mesh Sieve , Round Shape Stainless Steel Test Sieves

Customizable Astm Sieve Analysis Round Shape Wire Mesh Test Sieve

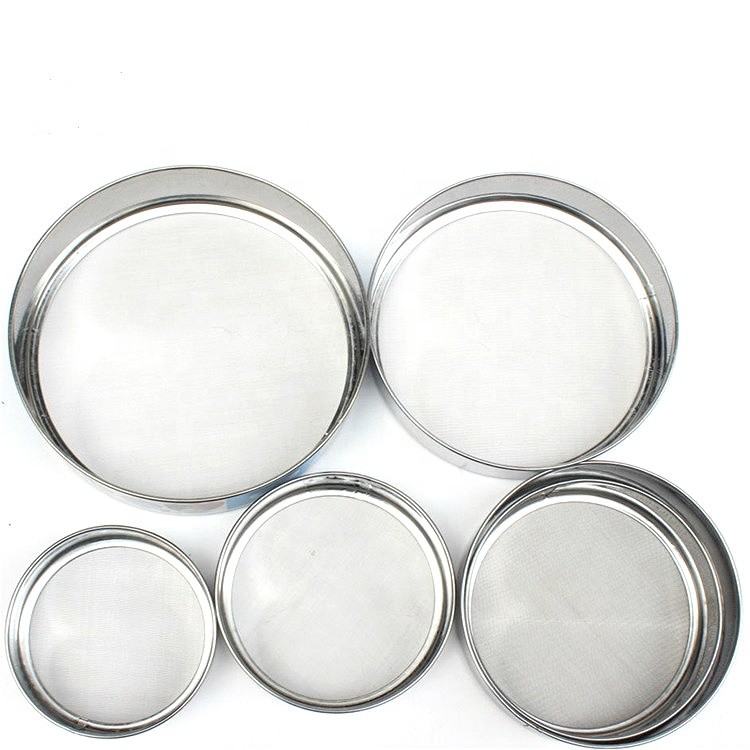

1. Wire Mesh Test Sieve Description

The wire is woven mesh test sieve is produced by the national standard GB/T6003.1-1997. The basic size of the mesh is 2.36mm-0.038mm, in line with the international standard ISO3310-1:1990 R20/3, R20, R40/3 series, the screen material is brass, tin bronze, stainless steel.

2. Wire Mesh Test Sieve Features

1. Good filtering.
2. Corrosion resistance.
3. Easy to clean.
4. Acid and alkali resistance,
5. High-temperature resistance
6. Uniform aperture size
7. Small orders accepted
8. Long using life.
9. Easy to use and transport.

3. Wire Mesh Test Sieve Specification

Materials: stainless steel wires, brass wires, bronze wires, galvanized iron wires, carbon steel wires, nylon wires, chrome plate, copper plate, stainless steel plate.

Wire diameter: 0.025mm - 2.0mm.

Sieve diameter: 5cm - 50cm.

Thickness: 0.6mm - 0.7mm.

Height: 3.5cm - 10cm.

Mesh count: 5 mesh - 1200 mesh.

Weave type: plain weave, twill weave, dutch weave, dutch twill weave, reverse weave.

Packing: waterproof paper then a plastic bag.

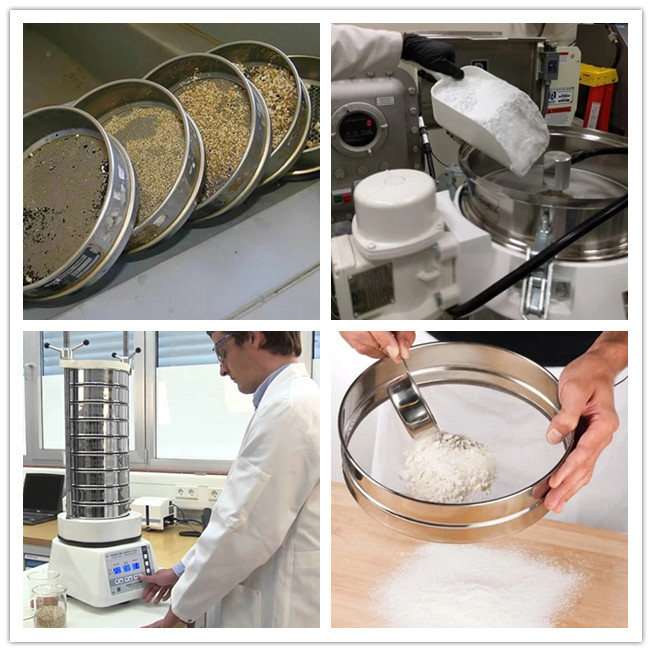

4. Wire Mesh Test Sieve Application

Food industry: flour, sugar, milk powder, salt, soy milk, egg powder, starch, condiments, beverages, soy sauce;

Chemical Industry: Resin powder, paint, industrial medicine, cosmetics, paint, polyethylene powder, washing powder, citric acid, etc.

Metallurgical mining: Aluminum powder, lead powder, copper powder, ore, alloy powder, manganese dioxide, grinding powder, refractory, lime powder, alumina, etc.

Pharmaceutical industry: Chinese medicine powder, Chinese medicine liquid, western medicine liquid, pharmaceutical intermediates, etc.
