Name: Electronic Digital Universal Brinell Vickers And Rockwell Hardness Tester
Brand: LIYI
Price: 1 USD

Categories

Hardness Testing Machine

Brand Name:

LIYI

Model Number:

150DT

Certification:

ISO

Place of Origin:

Dongguan

MOQ:

Price:

Pending negotiation

Payment Terms:

L/C, D/A, T/T, Western Union

Supply Ability:

100 units per month

Delivery Time:

5-20 days

Packaging Details:

plywood case

Power:

Electronic

Conversion scale:

Conversion table

Resolution:

0.5HR

Dwell time:

1-60s

Hardness data read:

Dial

Hardness value range:

110V/220V + 5%, 50/60 Hz

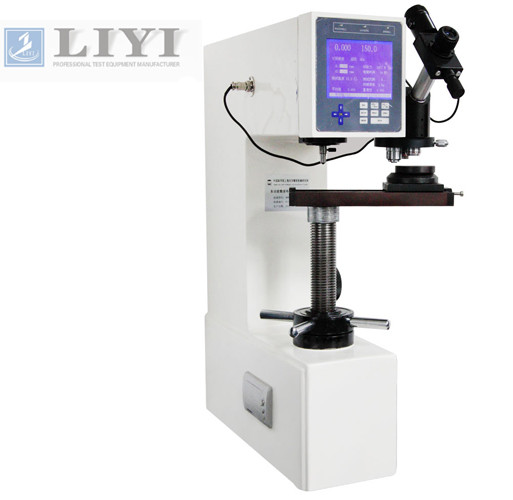

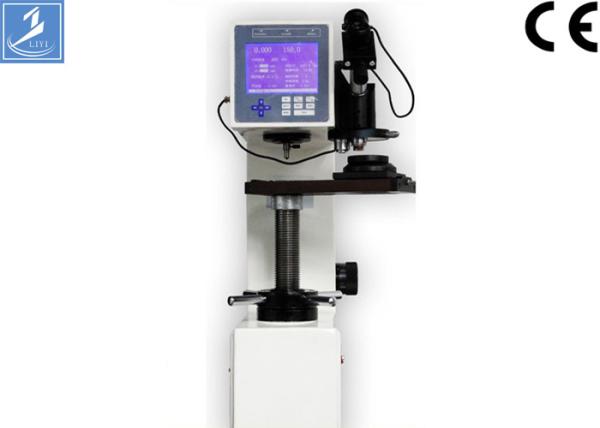

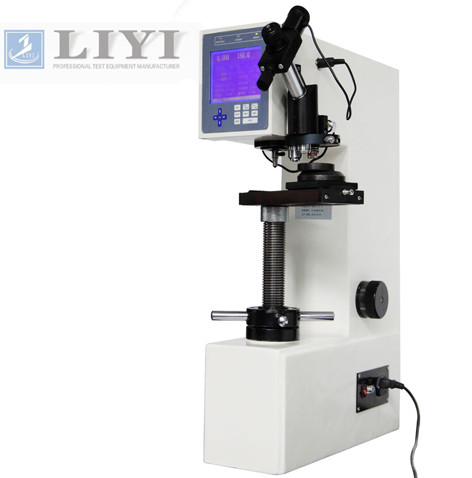

Electronic Digital Universal Brinell Vickers And Rockwell Hardness Tester

Electronic Digital Universal Brinell Vickers and Rockwell Hardness Tester

Main function and Features:

1. This digital universal Brinell vickers and rockwell hardness tester HBRVD-187.5 with concise design, stable function, handy operation, which is adapted to fine mechanical technique and photoelectric technology new type hardness tester.

2. The outer shell of machine is formed of special founding one- time casted technique, stable structure, it is not easy to be out of shape

3. It is automatic to test when the working platform lifting up to some height, then indicate the test result directly

4. It can directly read the Brinell and Vickers hardness value by Omron encoder digital objective

5. It is equipped with 7 grades test forces, which can test the Brinell, Rockwell and Vickers three hardness value, it can meet customers’ requirements

6. Built-in printer, it can print out the test result

7. This digital universal Brinell vickers and rockwell hardness tester HBRVD-187.5 can connect to the computer, analyze, print the report by software.

Main Uses:

Chilled steel, surface hardening steel, hard alloy steel, cast iron, ferrous metal, all kinds of hardening and tempering steel, harden thin plate, also adapted to soft metal, surface heat treatment and chemical treatment etc.

Technical Parameters:

Model	HBRVD-187.5
Rockwell scale Test force	HRA, HRB, HRC, HRD,HRE, HRF,HRG,HRH,HRK 60Kg (588N),100Kg (980.7N),150Kg(1471N)
Brinell scale Test force	HBW2.5/31.25,HBW2.5/62.5,HBW5/62.5, HBW2.5/187.5 31.25Kg(306.5N),62.5Kg (612.9N), 187.5Kg (1839N)
Vickers scale Test force	HV30, HV100 30Kg(294.2N),100Kg (980.7N)
Hardness value read	Big digital LCD
Amplification times	37.5X,,75X
Specimen maximum height allowed	Rockwell: 170mm Brinell, Vickers: 140mm
Dwell time	1~60S
Power supply	AC220V + 5%, 50~60 Hz
Instrument size	465×180×655mm (L×W×H)
Instrument weight	85kg
Hardness value range	Rockwell:HRA:70~85 HRB:30~100 HRC:20~67 Brinell:HB4-450 Vickers:HV14-1000
Executive standard	GB/T230.2(Rockwell),GB/T231.2(Brinell),GB/T4340.2 (Vickers) JJG112 (Rockwell),JJG150(Brinell)
Standard accessories	Rockwell diamond indenter 1 piece, Vickers diamond indenter 1 piece, Φ1.588mm, Φ2.5mm,Φ5mm, hard alloy ball indenter 1 piece, measuring microscope 1 set (install in the machine), large, medium, “V” shape, and slide test platform each 1 piece, hardness block 5 pieces, accessory box 1 set, dust-proof cover 1 set, power cable 1 piece, manual instruction, certificate of quality, warranty card each 1 piece.

Product Effects

Company Information

LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

Our Services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
