| Categories | Industrial Network Router |
|---|---|
| Brand Name: | CISCO |
| Model Number: | ASR1001-X |
| Certification: | CE FCC ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 UNIT |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 50 UNITS/MONTH |
| Delivery Time: | 1-2 DYAS |
| Packaging Details: | NEW IN BOX |
| Brand: | CISCO |
| Model: | ASR1001-X |
| Shared port adapters: | 1 single-height SPA slot |
| Cisco ASR 1000 Series ESP: | Integrated in chassis |
| Ethernet port adapters: | N/A |
| Cisco ASR 1000 Series: | Cisco ASR 1001-X |
| Company Info. |
| LonRise Equipment Co. Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

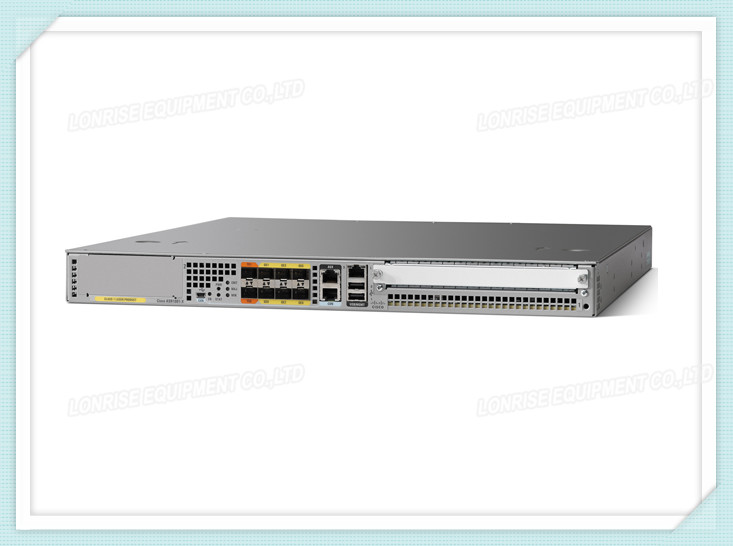

ASR1001-X Cisco ASR1001-X Aggregation Service Router Build-in Gigabit Ethernet port
Cisco ASR 1000-X is designed for high-end enterprise, data center, service provider edging network in order to handle explosive traffic through the network. It supports only software redundancy, and it is based on a Quad-core 2.13GHz processor with 4GB memory, 8GB flash memory, 1 SPA bay, SPA interface processor 10 (SIP10).
This ASR1001-X is similar with the ASR1001-X=. The ASR1001-X= is a spare one.
ASR1001-X Specifications | |
Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. | Height: 1.71 in. (43.43 mm) Width: 17.3 in. (439.42 mm) Depth: 18.17 in. (461.5 mm) Weight: ● 25 lb (11.35 kg) fully loaded Note: The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated. |
| Default memory | 8-GB DRAM shared across route processor, ESP, and SIP |
| Number of SIPs or Ethernet line cards supported | Integrated in chassis |
| Shared port adapters | 1 single-height SPA slot |
| Ethernet port adapters | N/A |
| Cisco ASR 1000 Series ESP | Integrated in chassis |
| Route processor | Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet ports | Yes: 6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports |
| Built-in 10 Gigabit Ethernet port | Yes: Two 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports Note:Built-in 10-GB ports cannot be reduced to 1-GB speed. |
| Network interface module | Yes |
| Cisco ASR 1000 Series | Cisco ASR 1001-X |
| ESP support | Cisco ASR 1000 Series 2.5-Gbps ESP (default) Upgradable through a software-activated feature license to 5, 10, or 20 Gbps |
| ESP bandwidth | 2.5 to 20 Gbps |
| ESP memory | Share the same control memory on route processor |
| SIPs and Ethernet line cards | Integrated in chassis; not upgradable |
| Embedded hardware-based encryption | Yes: Up to 8-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 3.12.0 |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Redundant power supply | Yes: Dual power supplies by default; option of either AC or DC power supply Note: A mix of one AC and one DC power supply is not supported. |
| Power input | Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72V; 48V nominal) |
| Power consumption | ● Maximum (DC): 242W ● Maximum (AC): 250W ● Maximum (out): 250W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | 32 to 104°F (0 to 40°C) |
| Operating temperature (short-term) | 32 to 122°F (0 to 50°C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 to 90% |
| Storage temperature | -40 to 150°F (-40 to 70°C) |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating altitude | -500 to 10,000 feet (152 to 3048 meters) |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 (in progress) |
| EMC standards | ● FCC 47 CFR Part 15 Class A ● VCCI Class A ● AS/NSZ Class A ● ICES-003 Class A ● EN55022/CISPR 22 Information Technology Equipment (Emissions) ● EN55024/CISPR 24 Information Technology Equipment (Immunity) ● EN300 386 Telecommunications Network Equipment ● (EMC) ● EN50082-1/EN61000-6-1 Generic Immunity Standard |
| Safety Standard | UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
