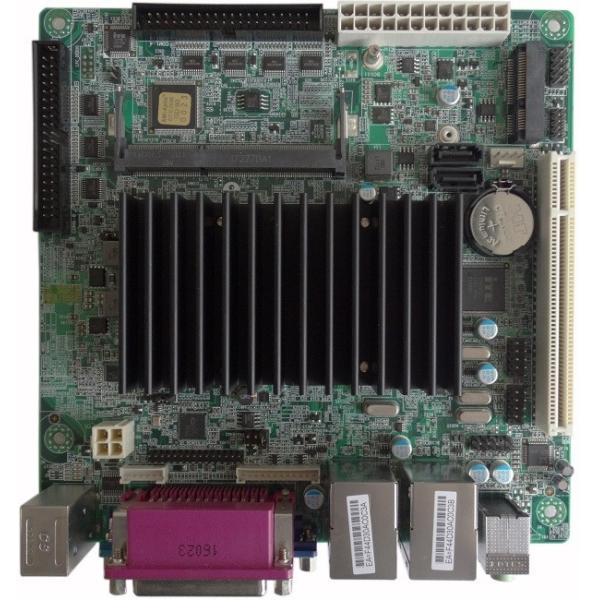

ITX-J1800DL288 Mini ITX Motherboard, Soldered Onboard Intel® J1800 CPU, 8COM

Feature

■ Soldered Onboard Intel®J1800 CPU

■ 2 Gigabit LAN

■ VGA, LVDS Graphics Interface

■ 8COM, 8USB2.0

■ 8 bit GPIO

■ 1 PCI Slot

Specification

CPU/GPU		Soldered Onboard Intel® J1800 CPU
Memory		1 x DDR3 SO-DIMM sockets, supporting up to 8GB SDRAM
Storage		2×SATA ,1×M-SATA
Audio		Realtek ALC662, supports 5.1 channels
Ethernet		2 Gigabit LAN
Display		CPU integrated graphics
Graphics Interface		1×VGA, 1× LVDS
USB2.0		8
GPIO		8bit(4 bit In, 4 bit Out)
COM		8 RS232 serial
Backplane I / O		PS/2 KB/MS, COM+VGA+PRINT, 2 RJ45 LAN+4 USB2.0, Line-out+Mic-in
Board I / O Pin		4USB , 7COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO Front panel , Speaker, LVDS, invert, 24P+4P ATX
Expand		1 MINI PCIE, 1 PCI Slot
System		Support Windows(WIN 7, WIN 10...), Linux
Mechanical & Environmental
Power supply	ATX		Heat dissipation	Cooling fin	Size(L×W)	170mm×170mm
Working temperature	-15~55℃		Storage temperature	-40~75℃	Environmental humidity	0~90% air humidity,no condensation
Packing list	ITX-J1800AH288 motherboard ×1, SATA Data wire ×1, Interface Board ×1, 4COM wire ×2
