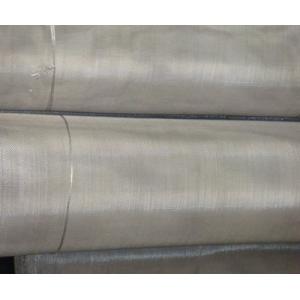

Inox Wire Stainless Steel Woven Wire Mesh SUS 304 With Typical Weaving Patterns

SUS 304 Stainless Steel Wire Mesh/Inox Wire Mesh/Filter Wire Mesh,SUS Filter Wire Nets/Stainless Steel Filter Wire Mesh

www.stainlesssteelwiremeshfactory.com.

Specification:

Material: SS201 302 304 316 304L 316L
Typical Weaving Patterns:Plain weave, twill weave, dutch weave,Reverse Weaving.
Feature: excellent resistance against acid, alkali, heat and corrosion,
Use: Used in mine, petroleum, chemical, food, medicine, machine making, etc.
Sizes:Standard roll width: 1m to 48"
Standard roll length: 30m to 100"
Packing: water-proof paper, wooden box, metal box, wooden pallet, metal pallet.

Normal mesh size:
Plain weave: 2X2mesh to 635X635 mesh;
Twill weave:20x20mesh to 400x400mesh;
Plain dutch weave:10X64mesh to 80X700mesh;
Twill dutch weave:20x250mesh to 400X2800mesh;
Reversed dutch weave: 48x10mesh to 720x150mesh.

Maishi Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch	Wire diameter (mm)	Aperture (mm)	--	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		500mesh	0.025	0.0385
Technical Note: 1.Standard roll length:15.24m, 30m, 30.5m, 61m 2.Standard roll width:0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25') 3.Special sizes available at request 4.Packing:In waterproof paper, PVC bag, wooden case.Custom packing available at request.

Plain Dutch Weave Mesh

Mesh per Inch (Warp x Weft)	Wire Diameter (Warp x Weft)
12meshx64mesh	0.58mm X 0.40mm
14meshx88mesh	0.50mmx0.33mm
24meshx110mesh	0.355mm X 0.25mm
30mesh X 150mesh	0.23mm X 0.18mm
40mesh X 200mesh	0.18mm X 0.14mm
50mesh X 250mesh	0.14mm X 0.11mm
60mesh X 300mesh	0.14mm X 0.09mm
70mesh X 400mesh	0.12mm X 0.08mm

If you did not find the mesh you want, please do not hesitate to contact us.

weaving and characteristics: plain weaving twill weaving/dutch weaving

Application: used in mine,oil,chemical industry , food industry, pharmaceutical industry and machine producing.

Specifications

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB)/100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB)/100 Square Foot
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.009	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.007	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.004	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.

Feature
1. Uniform mesh openings are suitable for filtration.
2. Flat and smooth surface with no sharp edges, burrs or acute angles.
3. High pressure and temperature resistance in reference to materiel selected.
4. Excellent flexibility are capable to forming the shape that you want.
5. Wide range of application: filtration, protection, decoration, art appreciation, etc.
6. Long service life. The raw material that we make the woven wire mesh meets the international standards. And if you need, we can provide the quality certification.
7. Easy maintenance. Woven wire mesh made of metal will need minimum maintenance compared with woven wire mesh made of cloth.

Application
1. Woven wire mesh is commonly used for filtration, protection decoration and art appreciation. And it can be used in construction industry, petroleum industry, coal industry, agricultural and food industry, etc.
2. Woven wire mesh can be made into filter disc or filter cartridge for gas, liquid or slurry filtration.
3. Woven wire mesh can be made into window screen or door screen for mosquito prevention and decoration.
4. Woven wire mesh can be made into multiple types of wire mesh crafts for decoration and appreciation.
5. Woven wire mesh can be made into decorative wire mesh for space dividing or building protection.
Package
6. Woven wire mesh is rolled on the paper core, then wrapped with craft paper and a layer

Processing products

Concentrating on putting all the efforts into maintaining product standards. We have a full range of production equipment, advanced technology, scientific management and inspection systems so that we can meet the exact requirements of our customers for various of wire mesh products.

About us

Product Tags:


*From:	Your email address is incorrect!
*To:	Anping tenglu metal wire mesh co.,ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Stainless Steel Woven Wire Mesh
Place of Origin:	Hengshui,China
MOQ:	1 roll
Price:	7-200 us dollar per square meter
Supply Ability:	3000 rolls per month
Packaging Details:	Inside waterproof paper,outside wooden carton
Material:	Hastelloy Alloy Wire
Mesh size:	2 mesh-500meshes
Wire diameter:	0.018mm-2.05mm
Technique:	Woven
Width:	1m,1.2m,1.3m or customized
Length:	30m or customized
