LC APC Fiber Fast Connector FTTH Field Assembly Optical Quick Splice Connector

Categories Fiber Fast Connector
Brand Name: wangtong
Model Number: fiber optic connector-LC
Certification: ISO9001:2008,ROHS
Place of Origin: Guangdong, China (Mainland)
MOQ: 10 pc
Price: negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Pack/Packs per Day
Delivery Time: 2 working day(s) after payment received
Packaging Details: blister package
Product name: FC fiber optic fast connector
Application: FTTH FTTB FTTX Network
Keywords: fast connector LC/APC
Connector Type: LC
Tensile strength: ≥30N/2min
Insertion loss: 0.3dB
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LC APC Fiber Fast Connector FTTH Field Assembly Optical Quick Splice Connector

Fiber Optic LC APC Fast Connector FTTH Field Assembly Optical Quick Splice Connector


Description


The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule.

Feature


  • Low insertion loss ,high return loss;
  • Reliable optical performance;
  • Good connection stability;
  • Convenient for field installation;
  • Installs fast,Operates easy ;
  • Low cost.

Application


  • Fibre distrbution
  • LAN and WAN
  • FTTx Applicaitons
  • CATV
  • Testing instruments
  • Telecommunications systems

Parameter


ParameterUnitSC
SMMM
PCUPCAPCPC
Insertion Loss (Typical)dB≤0.2≤0.2≤0.2≤0.2
Return LossdB≥45≥50≥60≥30
ExchangeabilitydB≤0.2
RepeatabilitydB≤0.2
DurabilityTime>1000
Operating Temperature°C-40~75
Storage Temperature°C-45~85

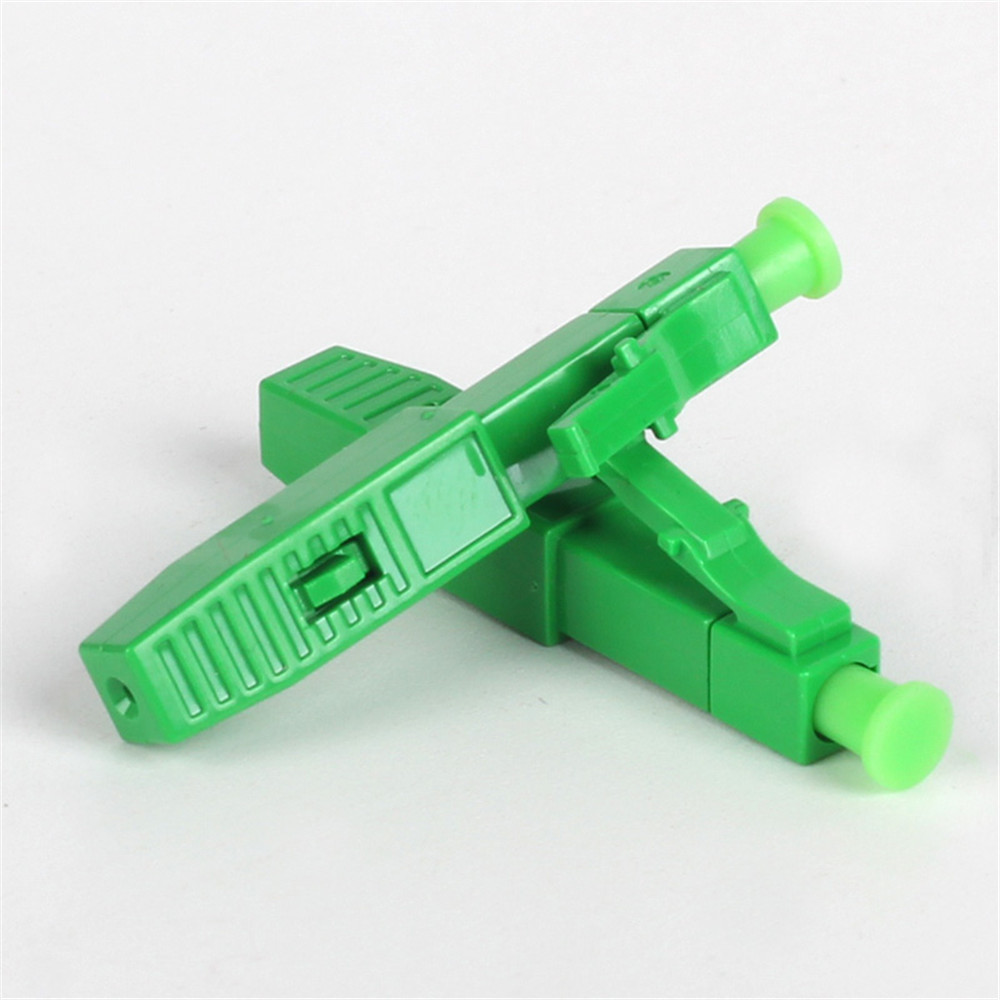

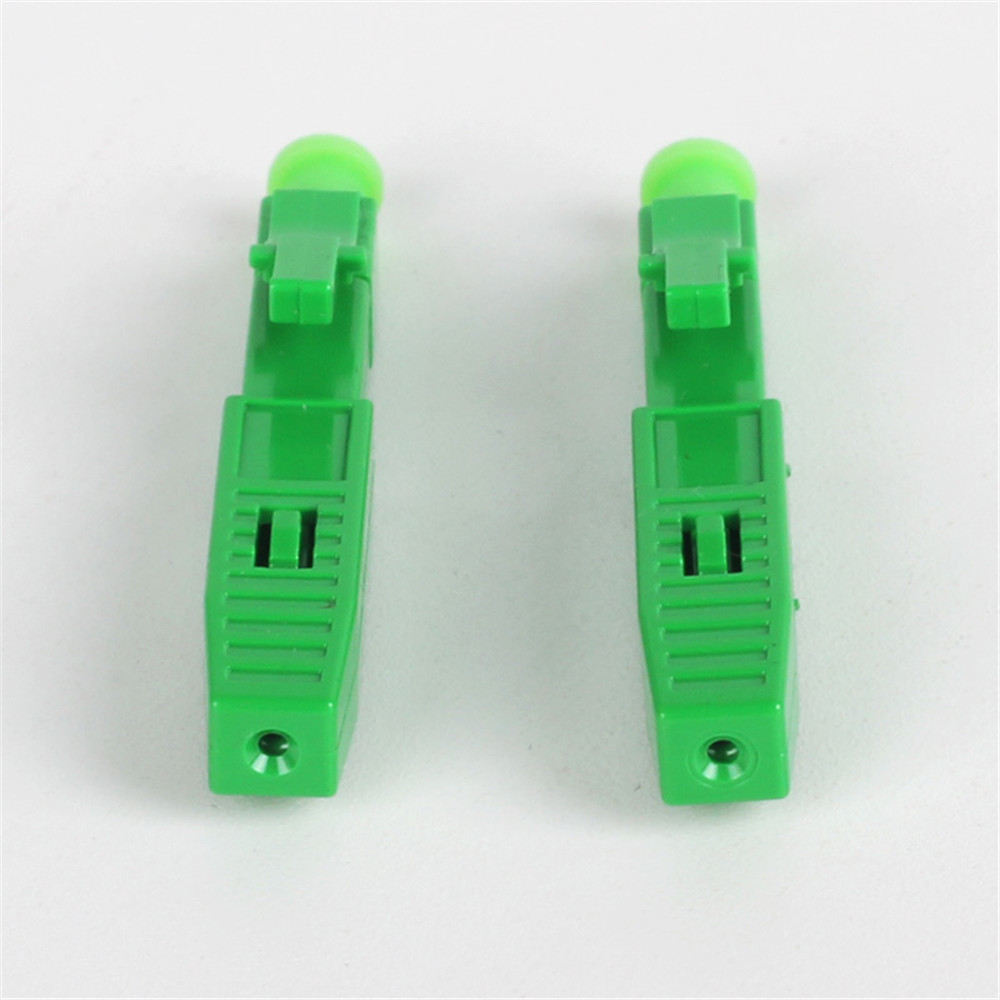

Product Pictures

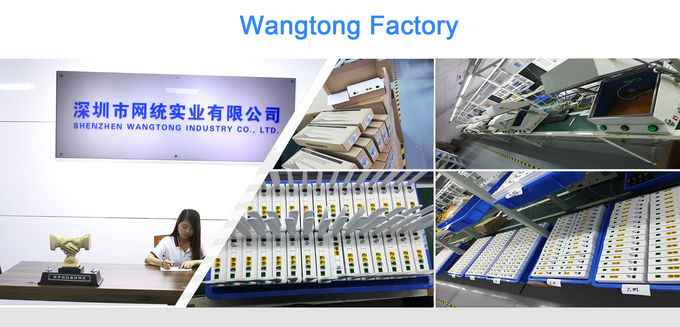

Wangtong Factory
