0.3℃ Accuracy Face Recognition Body Temperature Scanner

Categories Face Recognition Body Temperature Scanner
Brand Name: Anyuan
Model Number: AY-TN2M7A
Certification: CE, FCC
Place of Origin: China
MOQ: 1pcs
Price: Negotiation
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10K per month
Delivery Time: 3 days
Packaging Details: carton
Display: 7-inch IPS HD display
OS: Linux
Face Recognition: Yes
Temperature measuring distance: 0.3-0.8m
Access Control: Yes
Face Capacity: Support 22400 face comparison library and 100,000 face recognition records
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

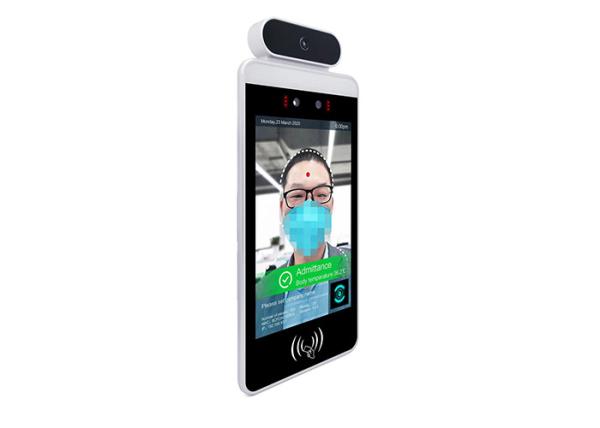

0.3℃ Accuracy Face Recognition Body Temperature Scanner

Face Recognition Body Temperature Scanner Body Facial And Attendance Machine Temperature Device Face Recognition Thermal




Features:
- 7-inch IPS HD display
- IP34 rated dust and water resistant
- MTBF> 50000 H
- Support 22400 face comparison library and 100,000 face recognition records
- Support one Wiegand input or Wiegand output
- Supports fog through, 3D noise reduction, strong light suppression, electronic image stabilization, and has multiple white balance modes, suitable for various fields Scene demand

- Support temperature data SDK and HTTP protocol docking
- Automatically register and record information, avoid manual operation, improve efficiency and reduce missing information
- Support mid-range temperature measurement and real-time warning of high temperature
- Support binocular live detection
- Unique face recognition algorithm to accurately recognize faces, face recognition time <500ms
- Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic ≥80dB
- Adopt Linux operating system for better system stability
- Support electronic voice broadcast (normal human body temperature or super high alarm, face recognition verification results)
- Non-contact automatic body temperature detection, brush human face and perform high-precision infrared human temperature acquisition at the same time, fast and high effect
- Temperature measurement range 30-45 (℃) Accuracy ± 0.3 (℃)
- Automatically identify unmasked personnel and provide real-time warning
- Rich interface protocols, support SDK and HTTP protocols under multiple platforms such as Windows / Linux




Specification:

ModelAY-TN2M7A
Hardware
ChipsetHi3516DV300
SystemLinux operation system
RAM16G EMMC
Image sensor1/2.7" CMOS
Lens4.5mm
Camera Parameters
CameraBinocular camera supports live detection
Effective pixel2Mega pixel,1920*1080
Min. luxColor 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
SNR≥50db(AGC OFF)
WDR≥80db
Face Recognition
Height1.2-2.2 M, angle adjustable
Distance0.5-2 Meters
View angleVertical ±40 degree
Reco. Time<500ms
Temperature
Range30-45(℃)
Accuracy±0.3(℃)
Distance0.3-0.8m
Response time<300ms
Interface
Internet interfaceRJ45 10M/100M Ethernet
Weigand portSupport input/output 26 and 34
Alarm output1channel relay output
USB port1USB port (Can be connected to ID identifier)
General
Power inputDC 12V/3A
Power consumption20W(MAX)
Working temperature0℃ ~ +50℃
Humidity5~90%, no condense
Dimension123.5(W) * 84(H) *361.3(L)mm
Weight2.1 kg
Column aperture33mm































































Precautions:
- The temperature measuring device should be used in a room with a room temperature between 10 ℃ -40 ℃. Do not install the temperature measuring device under the vent, and ensure that there is no heating source within 3 meters;
- Personnel entering the room from a cold outdoor environment will affect the temperature measurement accuracy. The forehead temperature test should be performed after the forehead is unobstructed for three minutes and the temperature is stable;
- The temperature read by the temperature measuring device is the temperature in the forehead area. When there is water, sweat, oil or thick makeup on the forehead or the elderly have more wrinkles, the read temperature will be lower than the actual temperature. Make sure there is no hair or clothing covering this area.
