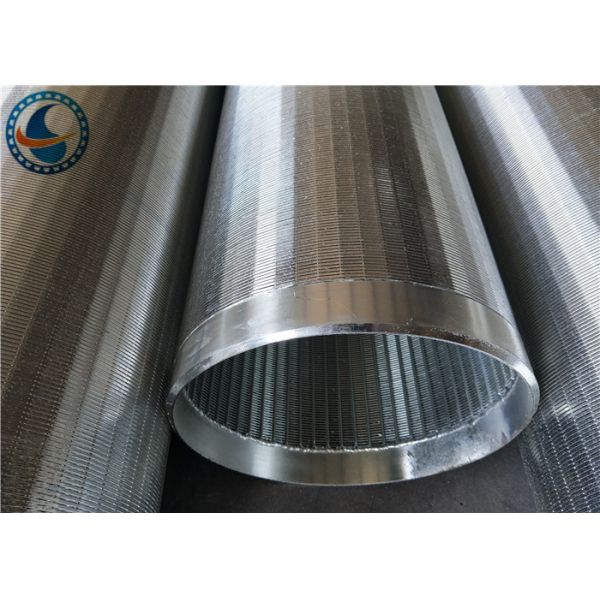

Low Carbon Galvanized 8-5/8" Water Wire Screen Pipe

Low Cost Wire Wrapped Screen For Sand Control In Deep Wells

.

Specification:

Regular Specifications:

Material:Low carbon galvanized, Also can be stainless steel 205, 304, 316, 304L, 316L,321 etc.

O.D.: 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4" inch and as request.

Slot: 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm in usual, also can be other sizes.

Discrepancy: + / - 0.05mm

Length: 50mm-6000mm, 2900,5800mm in usual, to fit container.

End Connection: welded rings or male/female thread couplings.

Wrap wire: 2*3.5mm, 2.2*3.5mm, 3*4.6mm ,3*5mm,3.2*6mm and so on.

Support rod: ø2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on. Also can be Vee-shaped wire.

Special specification can be made according to your need.

Advantages:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Application:

Wre wrap screen pipe specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells
