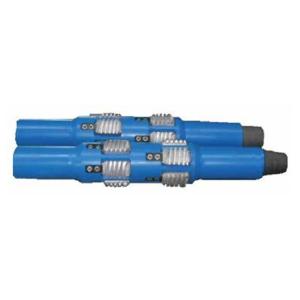

API Oilfield Downhole Tools 4 1/2" Casing Scraper

API Oilfield Downhole Tools 4 1/2" Casing Scraper

Product Introduction

Casing Scraper is ideal for the removal of dirt which may be left over the inside walls of casing, such as solid cement, hard wax, various salt crystals or deposits, perforation burrs, iron oxide residues resulted from rusting, so as to make all down hole tools pass through unblocked. Especially when a small circular clearance is available between the down hole tools and casing inside diameter, the complete scrapping becomes more necessary before further working. At present in the large petroleum well scrapping in the internal wall of casing by use of casing scraper is a necessary step.

Working principle

Before run into downhole, the max. installation size of blade shall be bigger the inside diameter, after run into downhole, the blade is pressed to press the spring down, theradial force is given by spring. When hard materials need to be scrapped, scrapping for several times must be done before scrapped to casing inside diameter. The casing scraper is connected on the low end of drill string, the moving of drill string up and down make an axially feeding in the scrapping operation. It is showed in the structure that each spiral blade has two internal and external curved scrapping edges. When the blade is working for reciprocating scrapping, the internal edge and external edge are working in turn,and there is a wider transverse edge band between two scrapping edges stands a cutting and milling action to the cut surface. The strap blades are uniform distributed on the scraper so that the returned mud can take the scraped substances away.

Technical Data of TR Oilfield Downhole Casing Scraper

Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level manufacturer and supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Xi'An TianRui Petroleum Machinery Equipment Co.,Ltd. (For short: TR Solids Control) is a professional manufacturer of solids control equipment and mud recovery system, located in Xi'an City, China. Since 2010, TR Solids Control focused on the development and production of various types of solids control equipment & system. Our R&D personnel are composed of rich experienced crew who have long-time work on oil drilling mechanical design, so we supply professional drilling solids control equipment with the enterprise spirit of continuously improvement and constantly innovation.

Our main products include: drilling mud shale shaker, decanter centrifuge, mud agitator, mud cleaner, desander, desilter, vacuum degasser, submersible slurry pump, centrifugal pump, screw pump, shear pump, jet mud mixer, mud hopper, liquids gas separator, flare ignition device, mud tank. Spare parts like shaker screens, hydrocyclones, impeller, mechanical selas and gear box etc. They are widely used in oil and gas drilling, coal bed methane system, trenchless HDD & tunneling, micro-tunneling, drilling waste management, bored pile construction, etc.

TR Solids Control brings in international advanced technology and imports high precision processing equipment for production, and builds talent training cooperation relations with lots of university in Xi’An city for replenishing new blood continuously to us. We also formed a high-tech modern integrated enterprise with design, manufacture, sales and service. TR Solids Control has our own improved management system, high level professionals and excellent service team. Our production management strictly implements API quality specification requirements, and we have strict regulations to materials procurement, producing and processing , equipment debugging and whole process of equipment ex-factory. We’re fully capable of supplying satisfied products and services timely as per client’s request.

In terms of products quality management, TR Solids Control continuously update our own management level. We passed the international quality management system ISO9001-2015. TR Solids Control pursuits high-quality product and establishes excellent quality management system, this enables us to get the appraoval from clients.

TR Solids Control adheres to the enterprise purpose--Customers’ Satisfaction is the Highest Pursuit of us. Our goal is to create the global famous brand enterprise, and supply excellent and stable drilling fluids recycling purification system and HDD(Horizontal Direction Drilling) mud recycling system to users. Our products are used in Chanceful Oilfield in north of Shaaban, Chang Oilfield, Sinkiang Oilfield and other national drilling company. At the same time we exported our products to almost 40 countries and regions like South America, US, Europe, Egypt, Dubai, Abu Dhabi, Oman, Pakistan, Russia, Australia, Korea, Vietnam, Myanmar, etc.

Our goal is simple: to sell the best equipment at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Solids Control Equipment, to help others achieve their goals.
